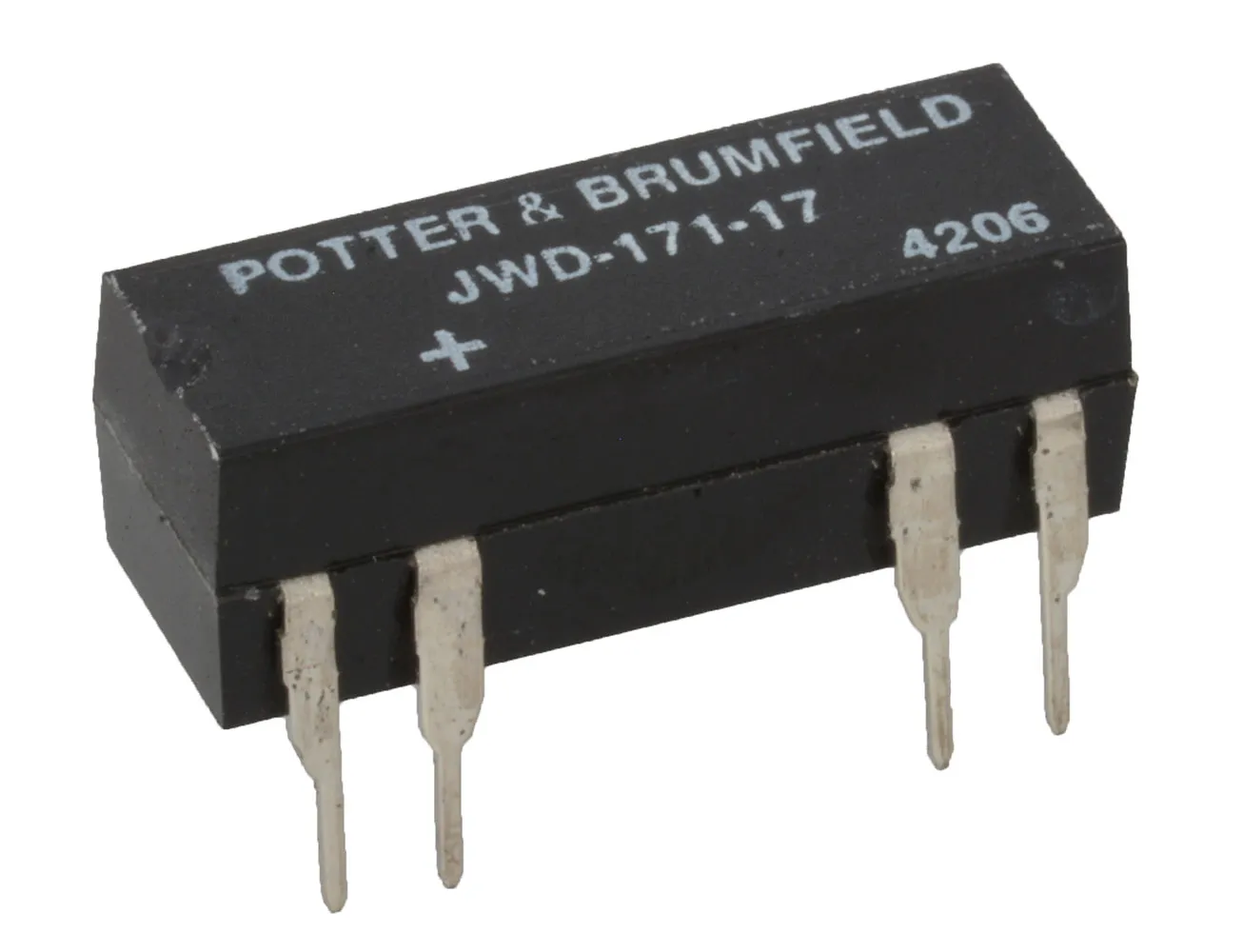

Reed Relay SPST-NC (1 Form B) PC Mount 500 Ohm 500mA 100VDC

Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.

Features:

  • Contact form: 1 Form B, 1 NCOcontact SPST-NC
  • Coil voltage: 5/6VDC
  • Coil resistance: 500Ω
  • Contact voltage: 100 VDC
  • Contact current: 0.5A
  • Size: 0.77" x 0.30" x 0.315"
  • 16-pin package

Add On

Use an IC socket to make mounting the relay easy and avoid overheating when soldering

Dimensions & Appearance

Height:0.31 in.
Width:0.3 in.
Length:0.77 in.

Features

Coil Voltage:5 VDC
Pins:8
Relay Construction:Non-Latching
Coil Resistance:500 Ohm
Contact Form:SPST-NC
Current Rating:0.5 A
Voltage Rating:100 VDC
,
