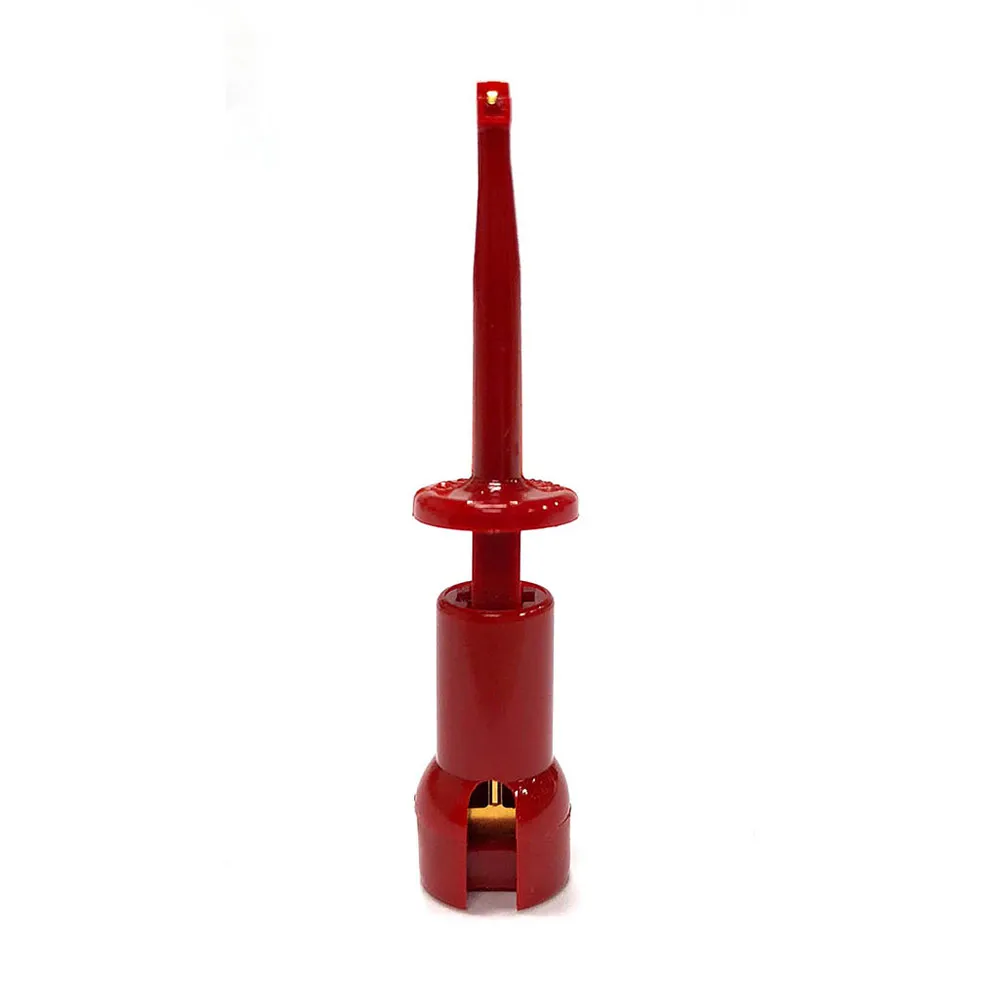

Red XM Micro-Hook

The XM hypo-action micro-hook test connector is the base model for the standard micro-hooks and is designed for use where weight and leverage may damage components. Its lightweight body and hypo-action hook easily allows for direct hook up to delicate wires and components. Insulation to a single contact point assures accurate readings, and the barrier on the tip prevents shorting between components.

Features

• Hook fits over components up to a max diameter of 0.045 in (1.14 mm)
• Wire exit hole accepts 32-22 AWG wire or a max wire diameter of 0.11 in (2.79 mm) (May be attached to a lead)
• Tip design that permits hooks up vertically or horizontally
• Field Serviceable
• Color: Red

Specifications

• Hook Style: Single Hook
• Spring Pressure: 8 oz (227 g)
• Length: 1.75" (44.45 mm)
• Color: Black
• Voltage (max recommended): 2.4 kV
• Current (max recommended): 4.4 Amps
• Material (Contact Bl
