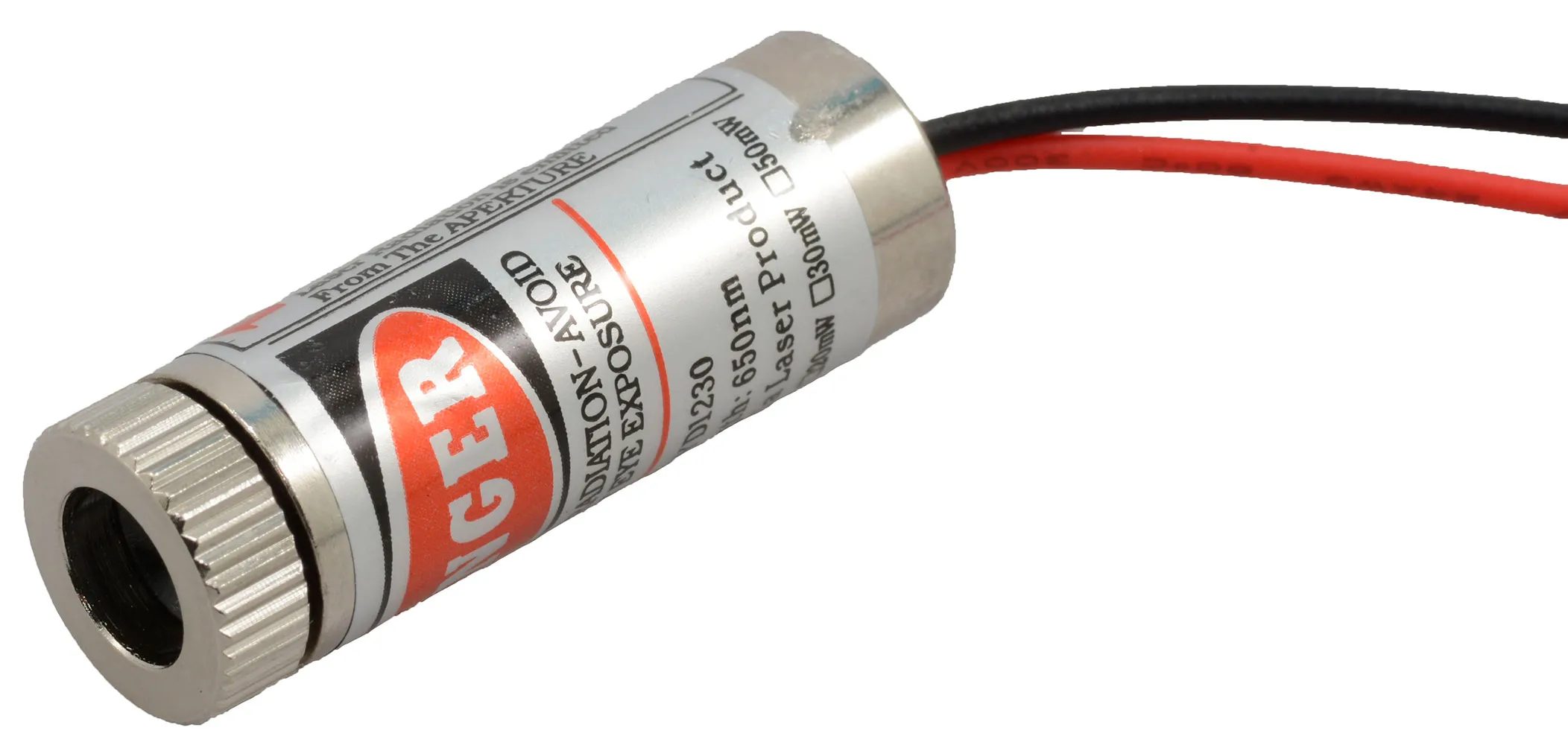

Red Laser Line Module 650nm 5mW 3-6VDC Focusable Lens Class IIIa

Specifications

  • Projected Shape: Line (dash)
  • Color: Red
  • Wavelength: 650 nm
  • Power: <5 mw
  • Voltage: 3 VDC to 6 VDC
  • Current: 30 to 50 mA
  • Drive circuit: APC
  • Size: 12 mm diameter x 36 mm long
  • Chrome colored body
  • 6" wire leads

Product Identification

Product Type:Laser Module - Line

Dimensions & Appearance

Color:Red
Dimensions:12.0mm Dia. x 35.0mm L

Input

Input Voltage:3VDC to 6VDC

Features

Peak Wavelength:650 nm
Power Rating:5 mW
,
