Red Jumbo LED Flasher - Breadboard Kit
This is the solder-free, breadboard-friendly version of the Jumbo LED Flasher solder kit. This kit is great for beginners to electronics and those who may not be ready to solder but are still interested in assembling an electronic circuit that actually does something when complete. You can also pick up other LEDs to make yours a different color. The flashing rate is adjustable with the two trimmer potentiometers.This kit is now available in other colors: Orange, Yellow, Green, Blue, and Red/Blue Emergency Combo.
Note: Due to internal packaging methods, you may receive extra components.
For complete instructions, check out the online step-by step guide here.

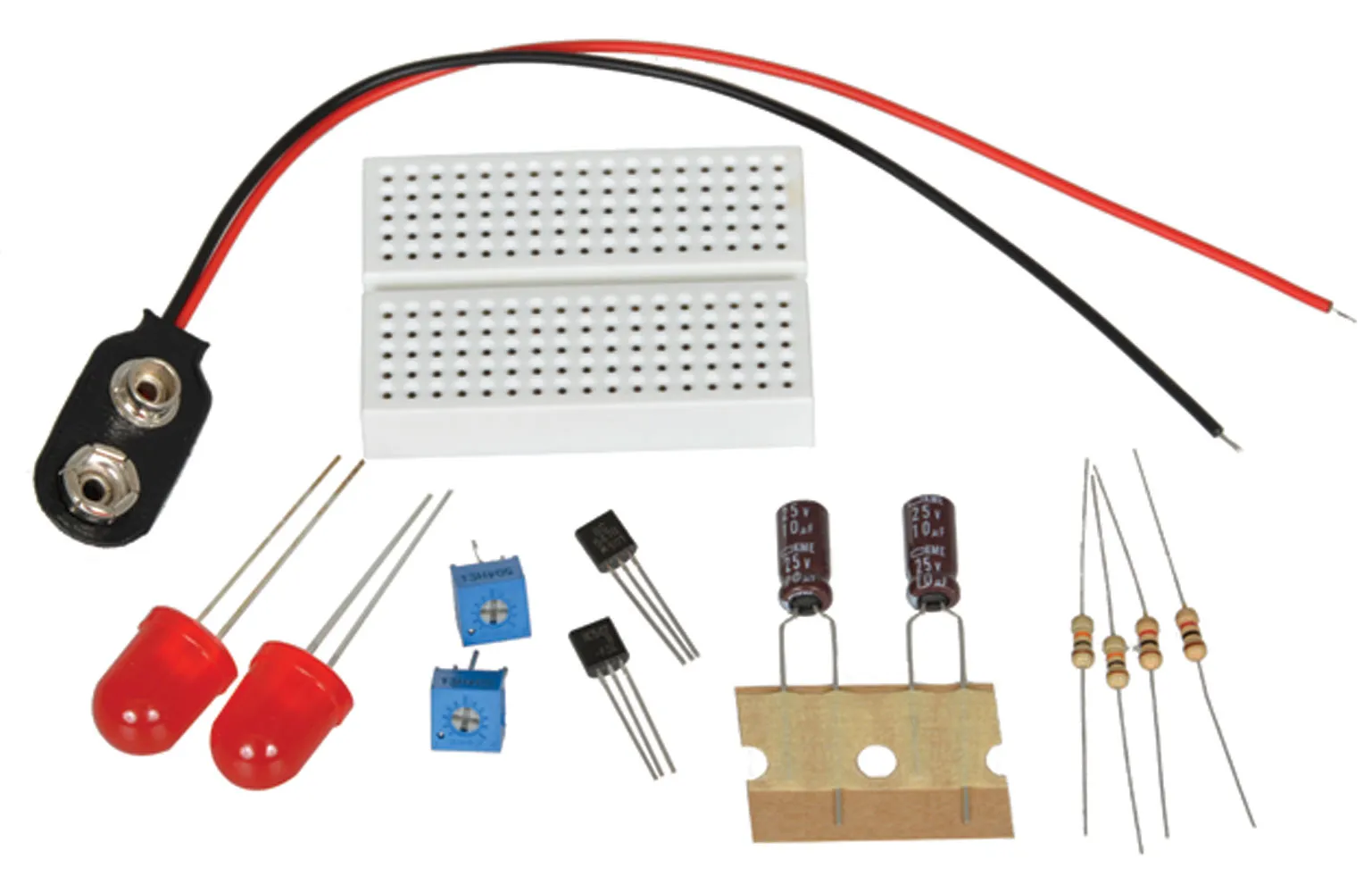

Kit Includes:
| Part No. | Description | |
| 109154 | 9V battery snap with 6" wires | |
| 254801 | Transistor, BC547B, NPN, TO-92 | |
| 254044 | Potentiometer, 500kΩ 1/2W, single-turn, 3362P-series | |
| 29891 | Radial capacitor, 10µF 25V | |
| 2152155 | Diffused red jumbo 10mm LED, 660nm, 1.8Vf | |
| 690865 | 1/4 watt resistor, 1k &@8486; | |
| 691104 | 1/4 watt resistor, 10k &@8486; | |
| 2155452 | Mini 170 point breadboard, 1.9" x 1.3" | |
| 2213165 | 2" pre-formed blue 22AWG solid jumper wires | |
| 151095 | 9V battery |
Related Products
- Orange Jumbo LED Flasher Kit (P/N: 2244535)
- Yellow Jumbo LED Flasher Kit (P/N: 2244543)
- Green Jumbo LED Flasher Kit (P/N: 2244551)
- Blue Jumbo LED Flasher Kit (P/N: 2244551)
- Red/Blue Emergency Jumbo LED Flasher Kit (breadboard version) (P/N: 2246637)
- Red/Blue Energency Jumbo LED Flasher Kit (PCB solder version) (P/N: 2246645)
Product Identification
Product Type:LED Soldering Kit
Features
Design Level:Beginner Kit
Piece Count:15
