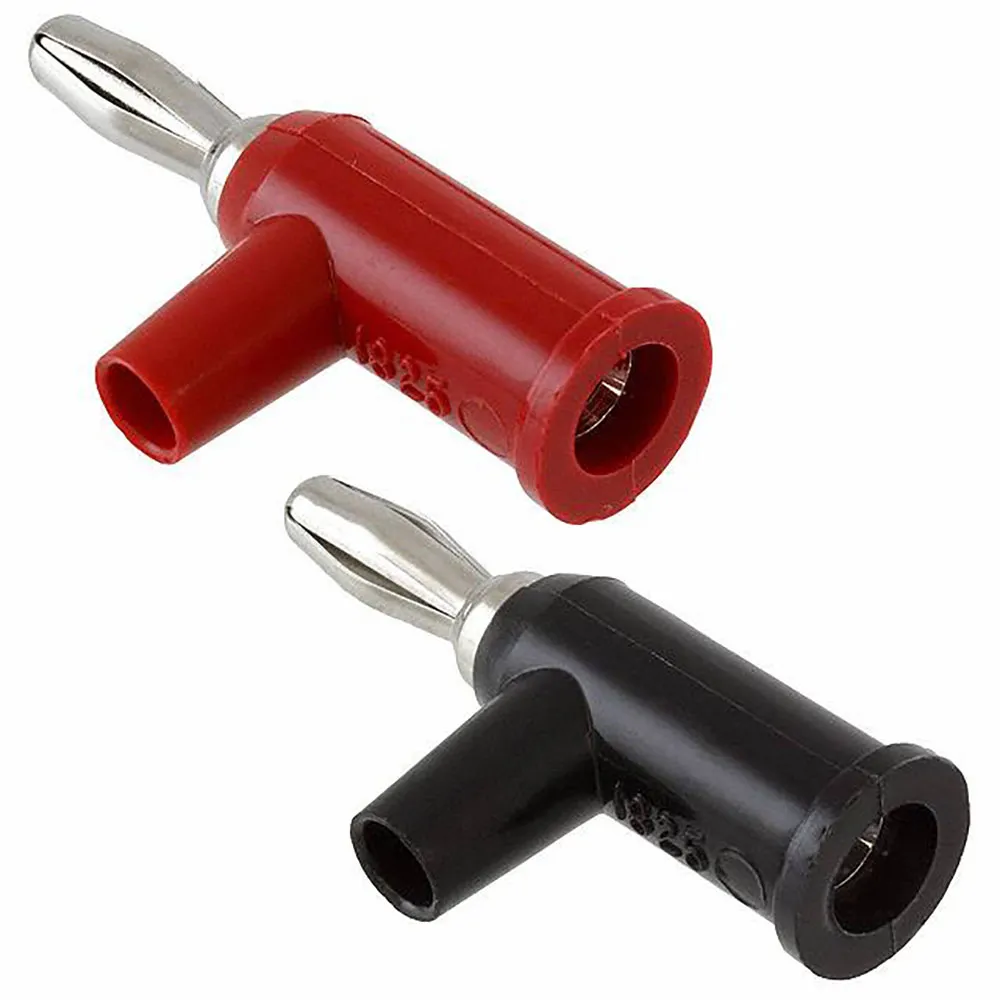

Standard Solderless and Stackable Banana Jacks Red and Black Set
Features
- Designed to fit on the end of any 22 AWG to 18 AWG wire
- Cross hole wire entry fits wires up to 0.12" (3mm) diameter
- Voltage Rating: Not intended for hand-held use at voltages above 33 Vrms/70 Vdc
- Current Rating: 15A
- Size: 1.55" Length x 0.44" Diameter
- Color: 1 Black, 1 Red
Product Identification
Additional Feature:Accepts 0.161" to 0.166" (4mm to 4.2mm) Plug, Safety Shield, Single
Product Type:Banana Plug, Stackable
Dimensions & Appearance
Color: Red, Black
Length:1.550 in.
Body Material:ABS
Mounting Type:Free Hanging
Features
Insulation Material:ABS
Contact Material:Brass
Insulation:Yes
Contact Plating:Nickel
Gender:Male
Wire Gauge (AWG):18-22
Termination: 8-32, Screw
Voltage Rating:5000 Vrms
Current Rating:15 A
