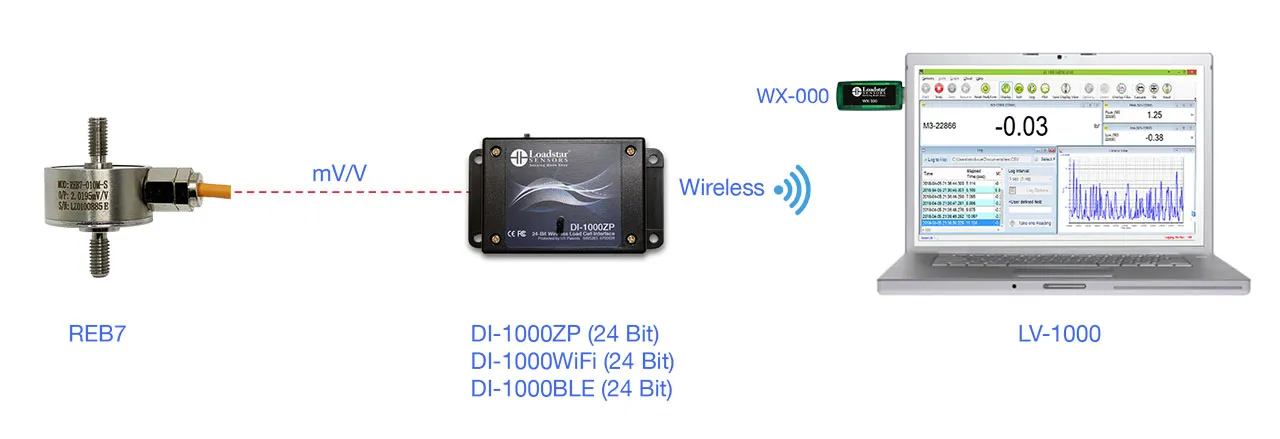

REB7 Miniature Load Cell with Threaded Studs on Both Ends Wireless PC Kit, 1 KG Capacity, DI-1000ZP Wireless & USB Interface, LoadVUE Pro Software, Calibrated in Compression
Features
- Miniature button load cells can be used for Compression or Tension or Universal force measurements
- Built-in threaded rods on each end to apply loads. Rugged strain relief provided on cable egress for improved reliability. Close equivalent of Honeywell Model 31 load cell
- No additional adapters needed other than rod-ends with female mounting holes or eye bolts with female mounting holes
- Capacity: 1 KG
- Output Type: USB/XBee Wireless
- Wireless Kit Includes: Sensor, Wireless Interface, USB Output Cable, USB Wireless Dongle (if DI-1000ZP), Power Supply, LoadVUE Pro, Calibration Certificate
Overview
Sub-miniature resistive load cells can be used in compression, tension or universal mode and are ideal for force measurement applications that have limited space for a load cell. Visit Loadstar Sensors for additional information.
Click to Enlarge
Resources & Downloads
Product Identification
Additional Feature:Load Cell Wireless PC Kit, DI-1000ZP Wireless & USB Interface, LoadVUE Pro Software, Calibrated in Compression
Product Type:Miniature Load Cell with Threaded Studs on Both Ends
Dimensions & Appearance
Dimensions:25.4x31 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:USB/XBee Wireless
Features
Capacity:1 KG
Option:Compression, Tension, Universal
Number of Wires:4
Accuracy:1%
Sensor Type:Force
Technology:Resistive
Thread Size:M3
Connector Type:Pigtail
Material:Alloy Steel
