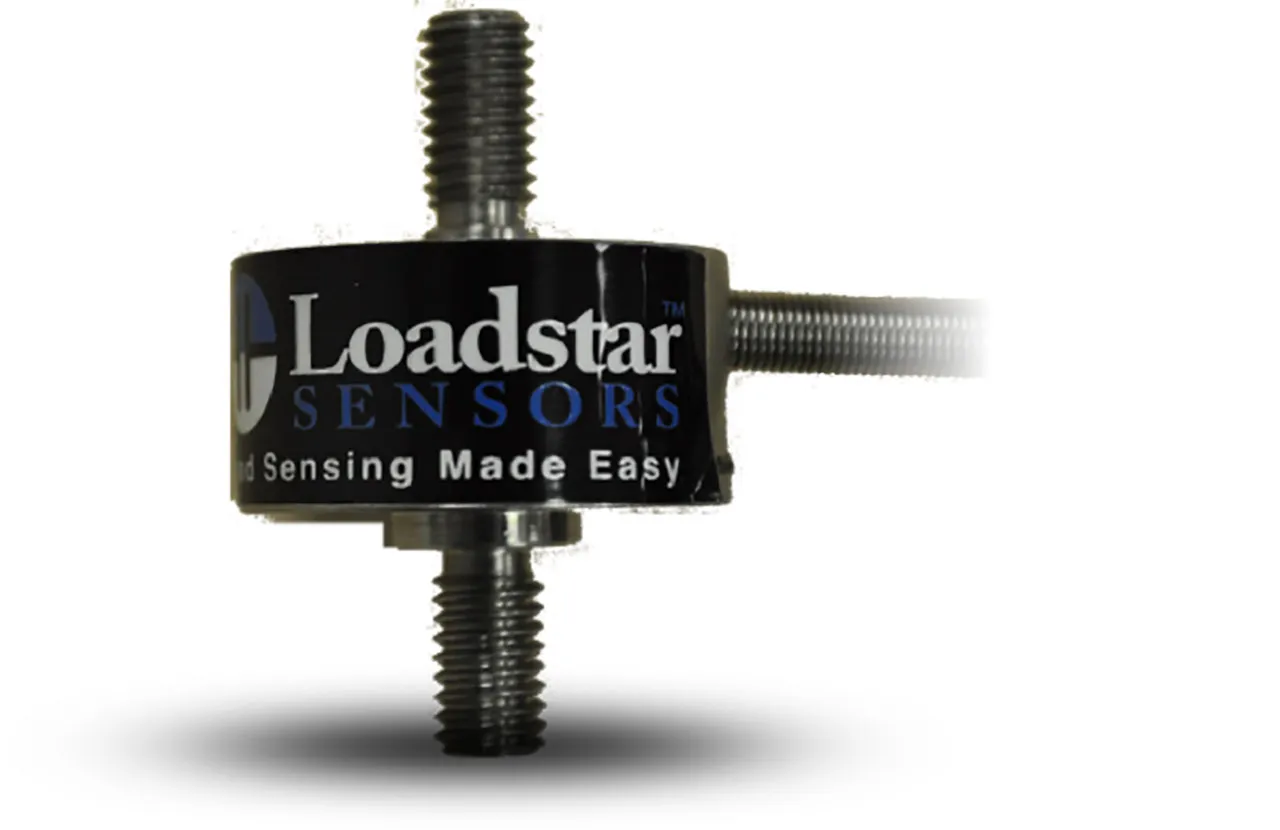

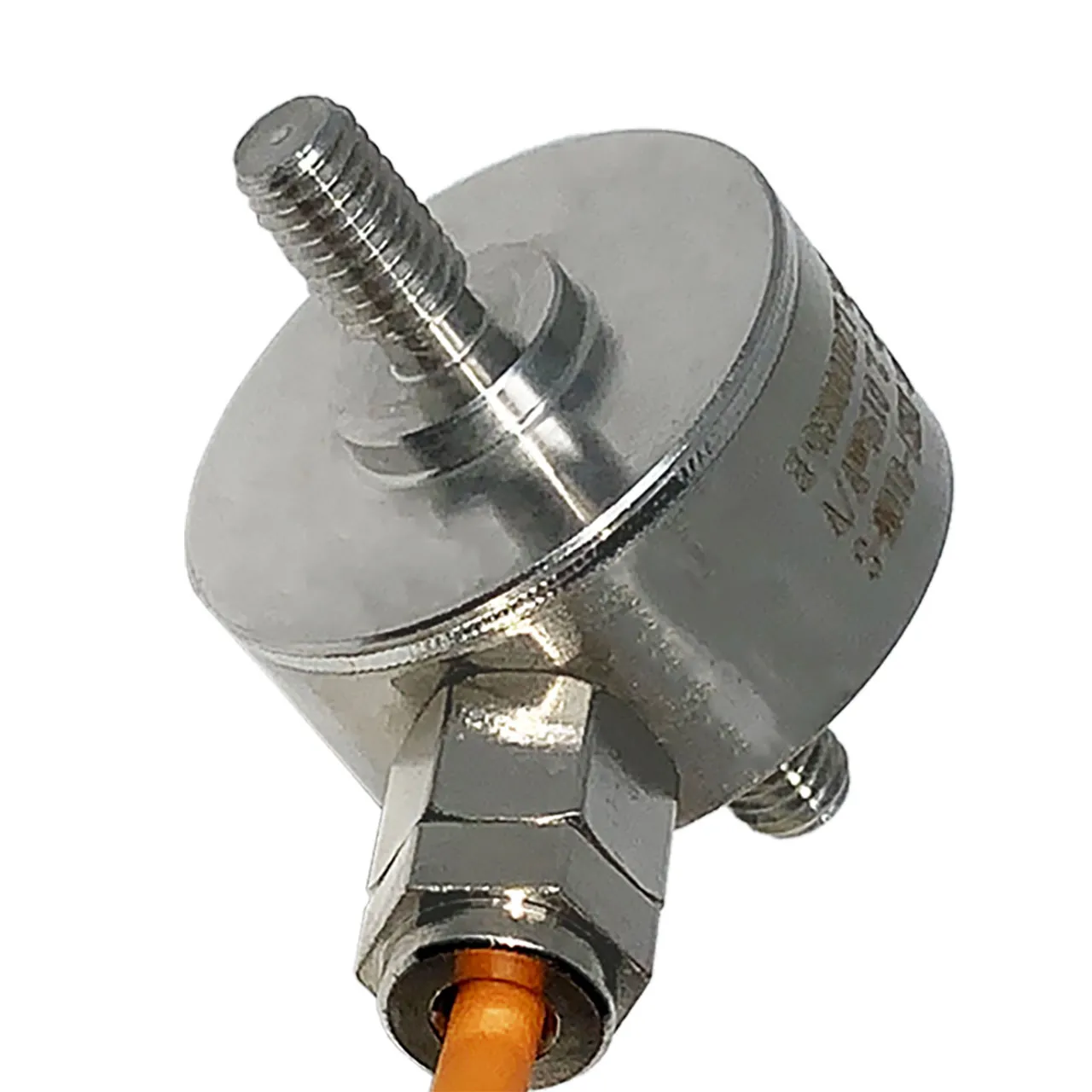

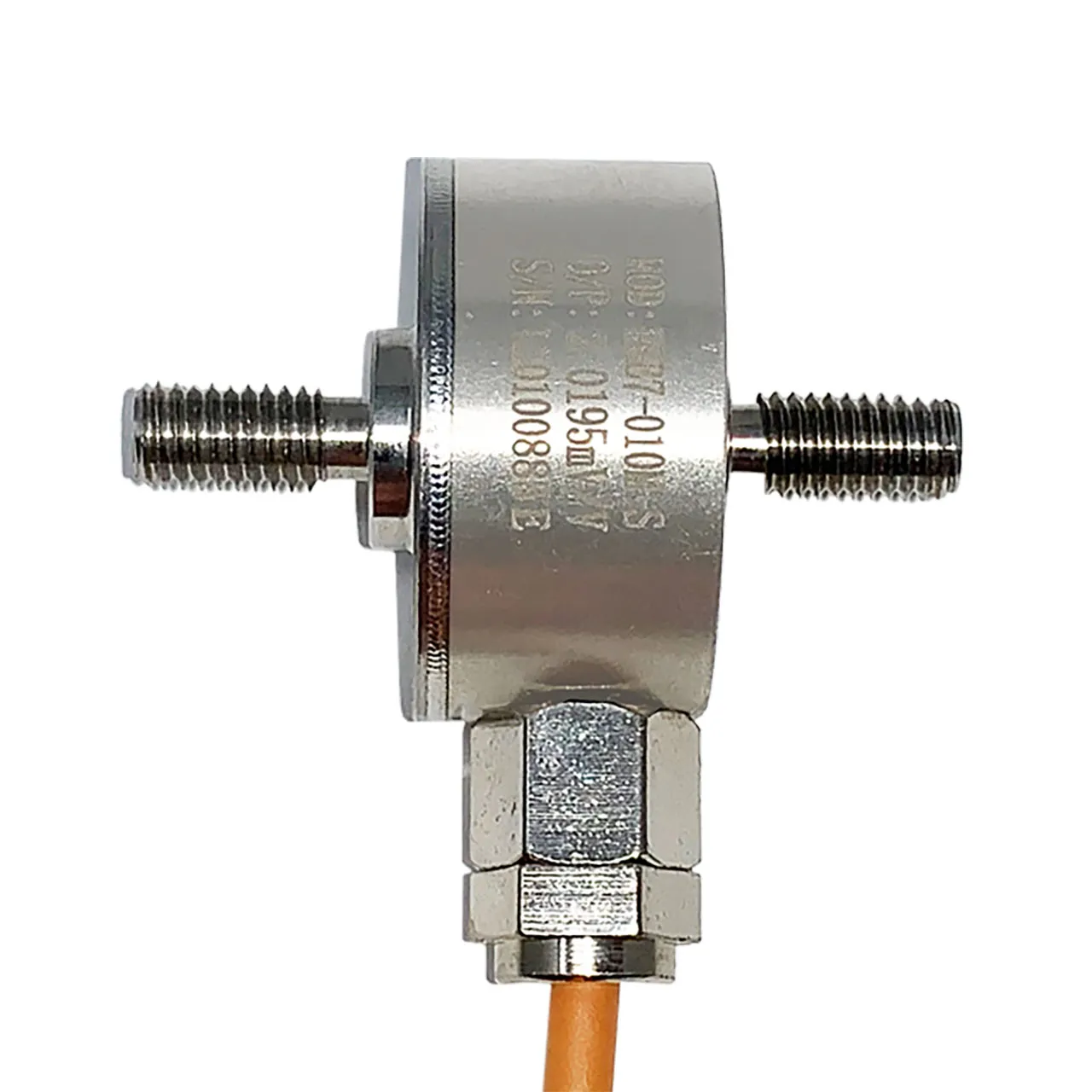

REB7 Miniature Load Cell with Threaded Studs on Both Ends, Sensor Only, 2 KG Capacity, Calibrated in mV/V in Compression

Features

  • Miniature button load cells can be used for Compression or Tension or Universal force measurements
  • Built-in threaded rods on each end to apply loads. Rugged strain relief provided on cable egress for improved reliability. Close equivalent of Honeywell Model 31 load cell
  • No additional adapters needed other than rod-ends with female mounting holes or eye bolts with female mounting holes
  • Capacity: 2 KG
  • Includes: Sensor, mV/V Calibration & Certificate

Overview

Sub-miniature resistive load cells can be used in compression, tension or universal mode and are ideal for force measurement applications that have limited space for a load cell. Visit Loadstar Sensors for additional information.

Resources & Downloads

Product Identification

Additional Feature:Load Cell Only, Calibrated in mV/V in Compression
Product Type:Miniature Load Cell with Threaded Studs on Both Ends

Dimensions & Appearance

Dimensions:25.4x31 mm

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:5V to 10V

Output

Output:mV/V

Features

Option:Compression, Tension, Universal
Capacity:2 KG
Number of Wires:4
Accuracy:1%
Sensor Type:Force
Technology:Resistive
Thread Size:M3
Connector Type:Pigtail
Material:Alloy Steel
,
