REB7 Miniature Load Cell with Threaded Studs on Both Ends PLC Kit, 10 KG Capacity, AI-1000 Analog 0.5V to 4.5V DC Interface, Calibrated in Compression
Features
- Miniature button load cells can be used for Compression or Tension or Universal force measurements
- Built-in threaded rods on each end to apply loads. Rugged strain relief provided on cable egress for improved reliability. Close equivalent of Honeywell Model 31 load cell
- No additional adapters needed other than rod-ends with female mounting holes or eye bolts with female mounting holes
- Capacity: 10 KG
- Output Type: 0.5 to 4.5 VDC

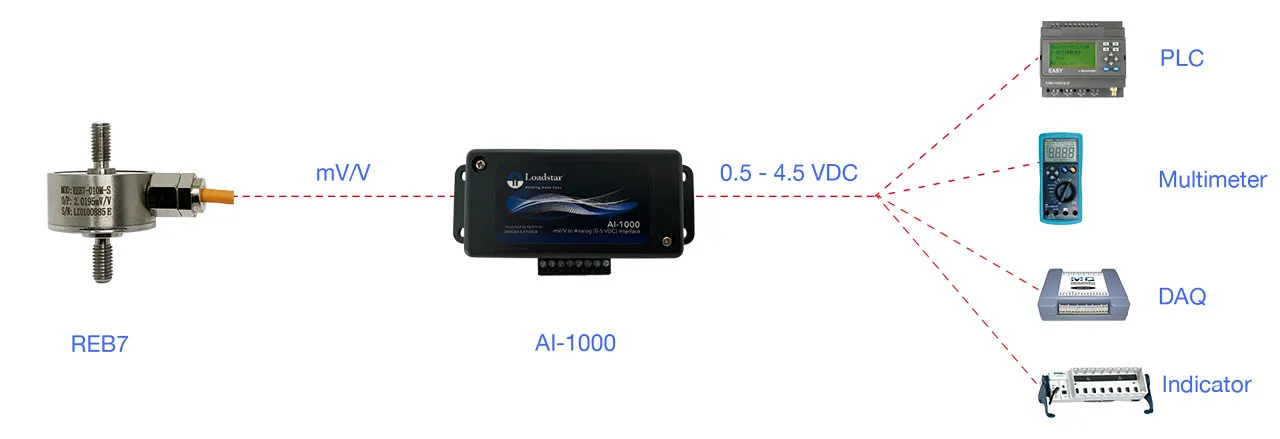

- PLC Kit Includes: Sensor, Interface, Power Supply, Calibration Certificate
Overview
Sub-miniature resistive load cells can be used in compression, tension or universal mode and are ideal for force measurement applications that have limited space for a load cell. Visit Loadstar Sensors for additional information.
Click to Enlarge
Resources & Downloads
Product Identification
Additional Feature:Load Cell PLC Kit, AI-1000 Analog 0.5V to 4.5V DC Interface, Calibrated in Compression
Product Type:Miniature Load Cell with Threaded Studs on Both Ends
Dimensions & Appearance
Dimensions:25.4x37 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:0.5 to 4.5 VDC
Features
Option:Compression, Tension, Universal
Number of Wires:4
Accuracy:1%
Sensor Type:Force
Technology:Resistive
Capacity:10 KG
Thread Size:M5
Connector Type:Pigtail
Material:Alloy Steel
