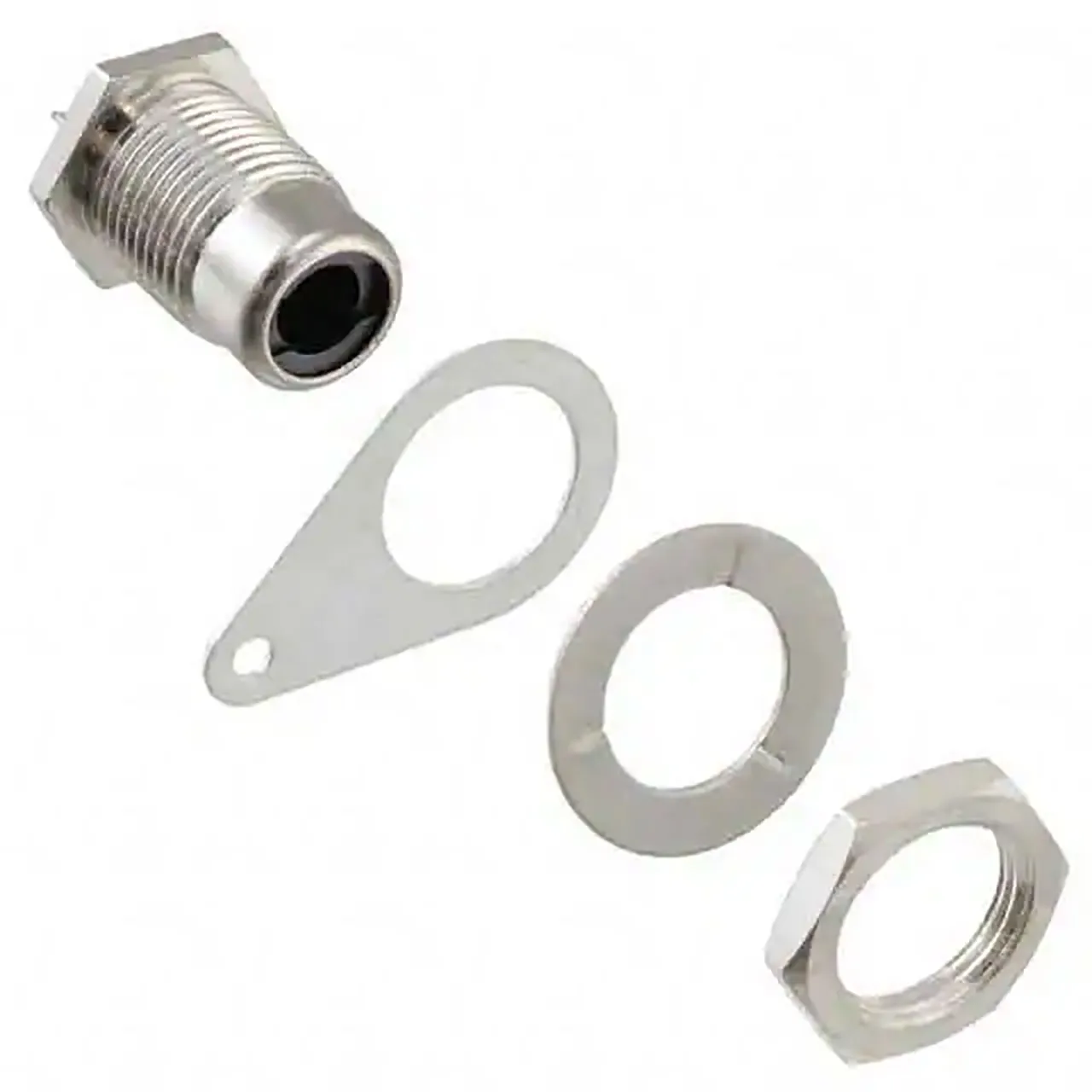

RCA Phono Jack Mono Rear Panel Mount Unshielded 2 Conductor Solder Eyelet

Features

  • Connector Type: Phono (RCA) Jack
  • Gender: Female
  • Signal Lines: Mono
  • Industry Recognized Mating Diameter: 3.20 mm ID, 9 mm OD (RCA)
  • Actual Diameter: 0.125" (3.18 mm ID), 0.370" (9.40 mm OD)
  • Number of Positions/Contacts: 2 Conductors, 2 Contacts
  • Internal Switch(s): Does Not Contain Switch
  • Mounting Type: Panel Mount, Rear
  • Termination: Solder Eyelet(s)
  • Shielding: Unshielded
  • Features: Grounding Tab, Mounting Hardware
  • Insulation Color: Black
  • Contact Material - Plating: Nickel
  • Contact Material: Brass
  • Body Material: Brass
  • Body Color: Silver
  • Includes: 3 pcs - 1 Connector, 1 Nut, 1 Washer
  • Thread Size: 3/8"-32
  • Panel Hole Size: 0.375" (9.52 mm)

Product Identification

Manufacturer Series:ValuePro
Product Type:RCA, Mono

Dimensions & Appearance

Body Orientation:Straight
Mounting:Panel Mount, Rear
Color:Silver

Operating conditions

Minimum Operating Temperature:N/A
Maximum Operating Temperature:N/A

Features

Number of Contacts:2
Contact Material:Brass
Housing Material:Brass
Termination Method:Solder Eyelet
Contact Plating:Nickel
Gender:Jack
Voltage Rating:N/A
Current Rating:N/A
,
