RAS1 S-Beam Load Cell PC Kit, 5000 LB Capacity, DI-1000U USB Interface, LoadVUE Pro Software, Calibrated in Compression
Features
- Usable for Compression measurements or Tension measurements or Both (Universal)
- Rugged uni-body construction. Ideal for inline force measurement applications
- Threaded Mounting Holes on Each End of Load Cell. No need for additional adapters for most applications.
- Capacity: 5000 LB
- Output Type: UART/USB

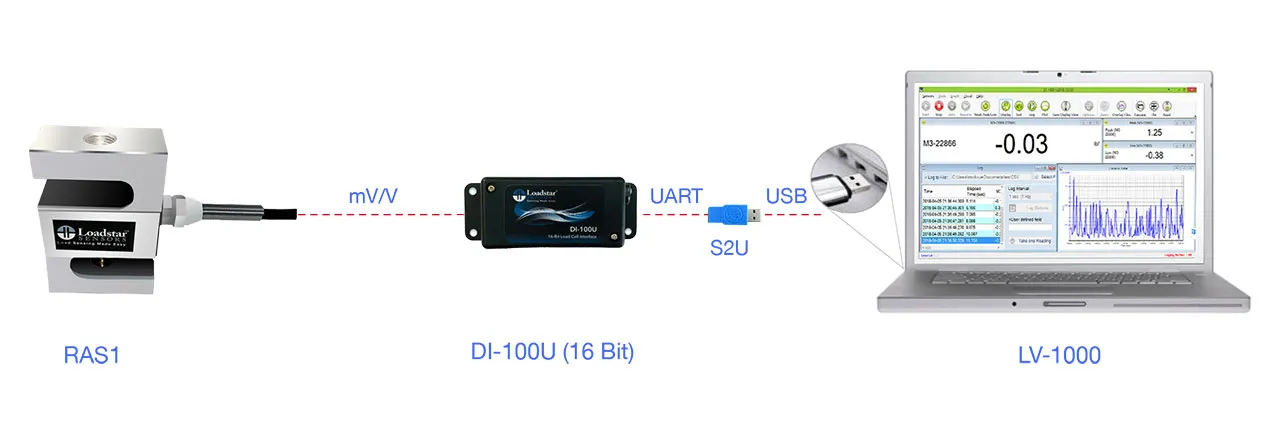

- PC Kit Includes: Sensor, Interface, Output Cable, USB Dongle (if DI-100U), LoadVUE Pro, Calibration Certificate
Overview
S-Beam load cells (or S beam Load cells, so named for their distinctive S shape,) can be used for tension and/or compression force measurement. They are most often found in applications such as cable strength testing, harness testing, material characterization and to test rip strength of cords, ropes and wires. The RAS1 is made from tool steel and is available in capacities from as little as 25 lb. up to 25,000 lb. This load cell has very good accuracy, stability and easy mounting features with two threaded holes on each end where threaded rod-ends or eye bolts can be easily attached. If you are looking for smaller lower capacity load cells, please take a look at our RES2 S-Beam Jr. load cells. You can buy just the Load Cells or buy the Load Cells with interface devices such as analog signal conditioners, digital USB or wireless load cell interfaces, displays and software as complete ready to use kits. Visit Loadstar Sensors for additional information.
