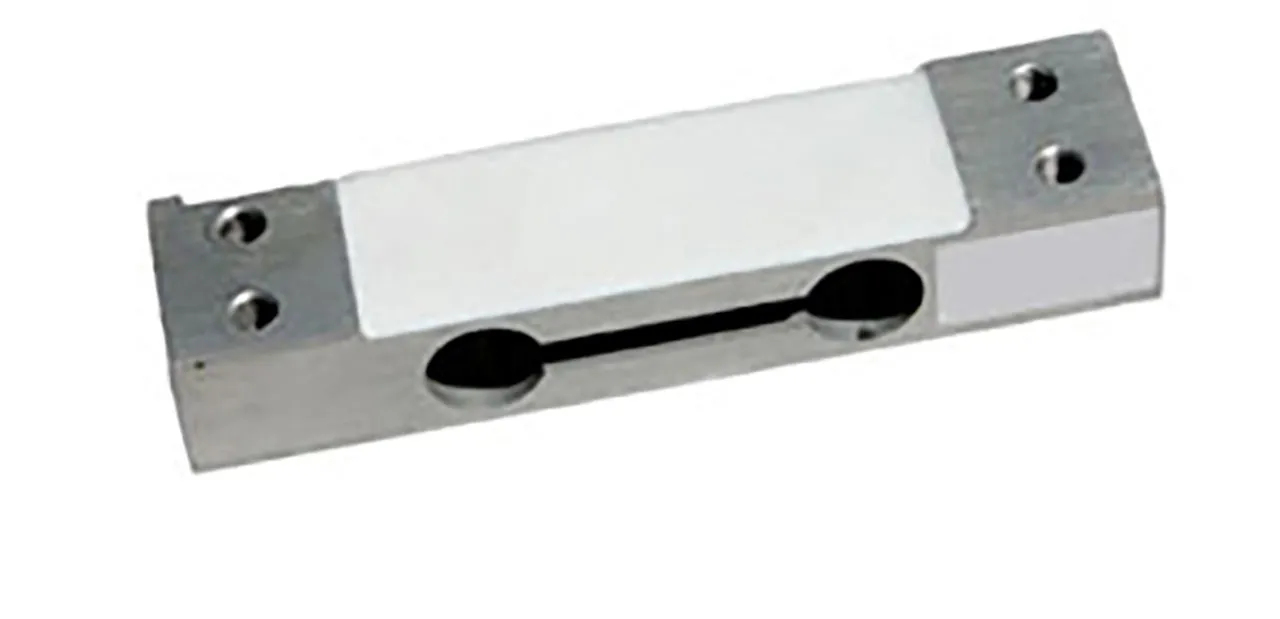

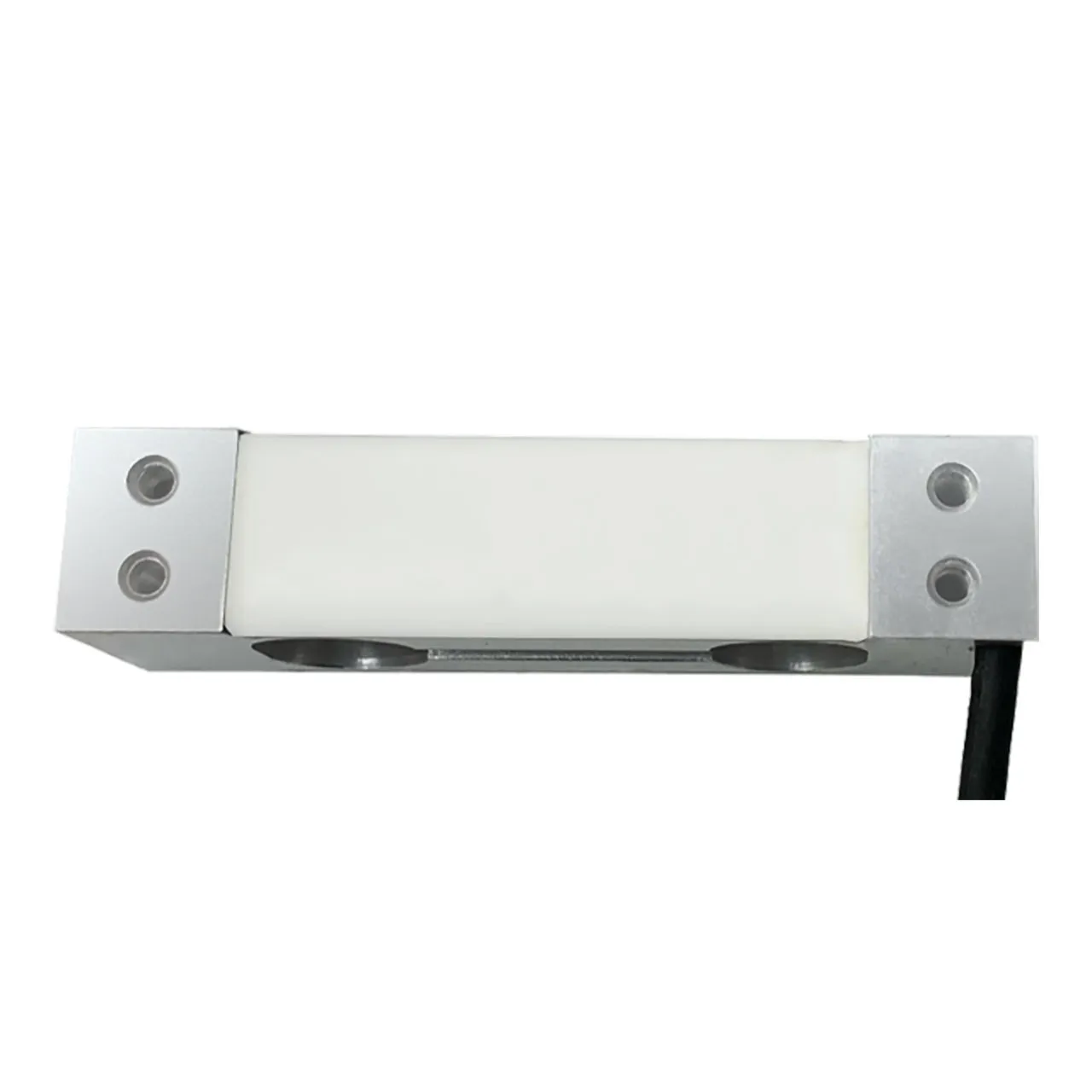

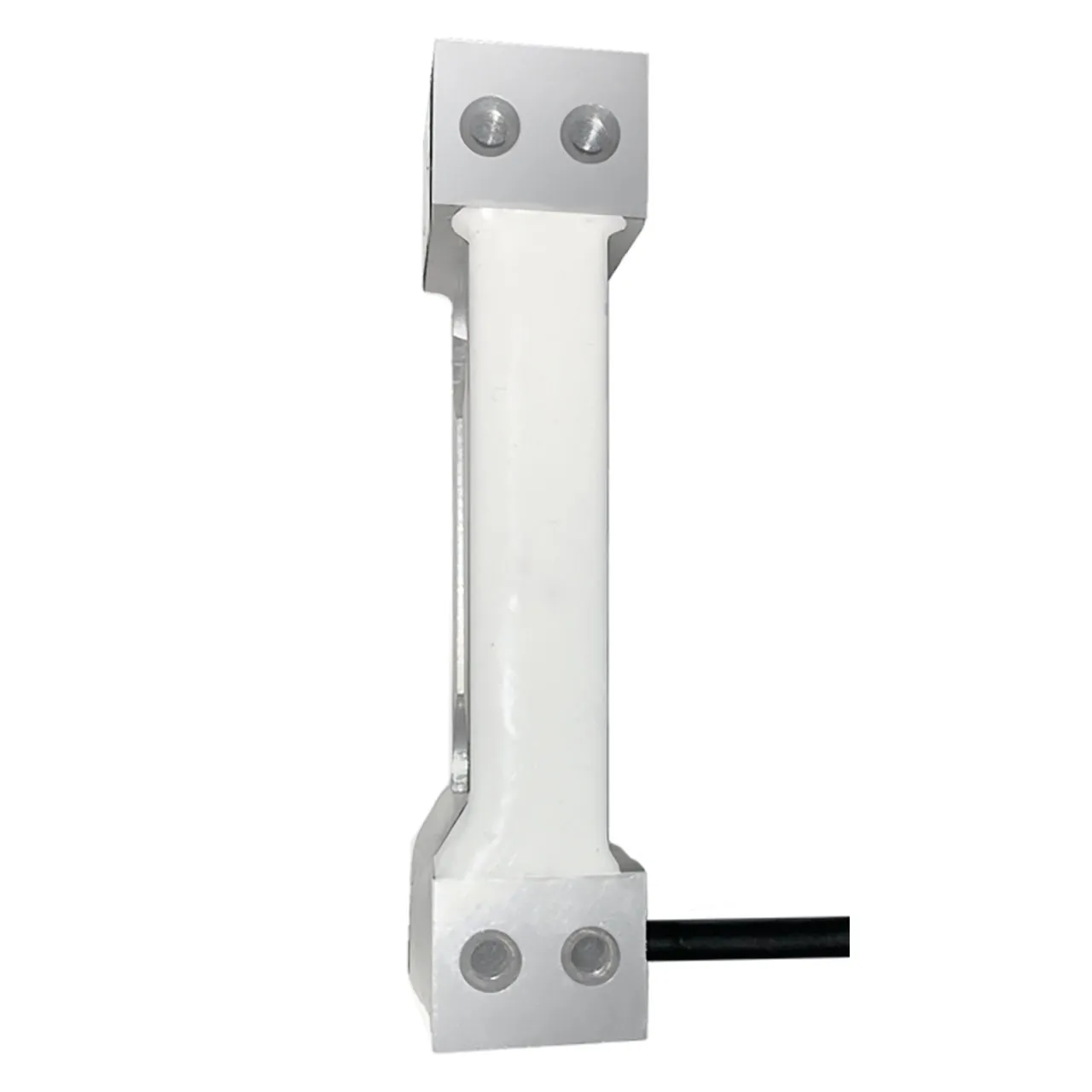

RAPG Single Point Load Cell, Sensor Only, 300 G Capacity, Calibrated in mV/V in Compression
Features
- Single Point load cells can be used for Compression, Tension or Universal (both Compressions and Tension) measurements
- Excellent off-center loading compensation hence ideal for scale platforms and force measurement applications in dehydration chambers, wind tunnels etc
- Pair with a digital interface or wireless interface to build small scales
- Capacity: 300 G
- Includes: Sensor, mV/V Calibration & Certificate
Overview
Low capacity, single point load cells that are excellent for measuring small loads and are used widely to build small precision scales. Visit Loadstar Sensors for additional information.
Resources & Downloads
Product Identification
Additional Feature:Load Cell Only, Calibrated in mV/V in Compression
Product Type:Single Point Load Cell
Dimensions & Appearance
Dimensions:70x15x22 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:mV/V
Features
Accuracy:0.02%
Option:Compression, Tension, Universal
Number of Wires:4
Sensor Type:Force
Technology:Resistive
Thread Size:M3
Connector Type:Pigtail
Material:Aluminum
Capacity:300 G
