RAPG Single Point Load Cell PC Kit, 300 G Capacity, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Universal

Features

  • Single Point load cells can be used for Compression, Tension or Universal (both Compressions and Tension) measurements
  • Excellent off-center loading compensation hence ideal for scale platforms and force measurement applications in dehydration chambers, wind tunnels etc
  • Pair with a digital interface or wireless interface to build small scales
  • Capacity: 300 G
  • Output Type: UART/USB
  • PC Kit Includes: Sensor, Interface, Output Cable, USB Dongle (if DI-100U), LoadVUE Pro, Calibration Certificate

Overview

Low capacity, single point load cells that are excellent for measuring small loads and are used widely to build small precision scales. Visit Loadstar Sensors for additional information.

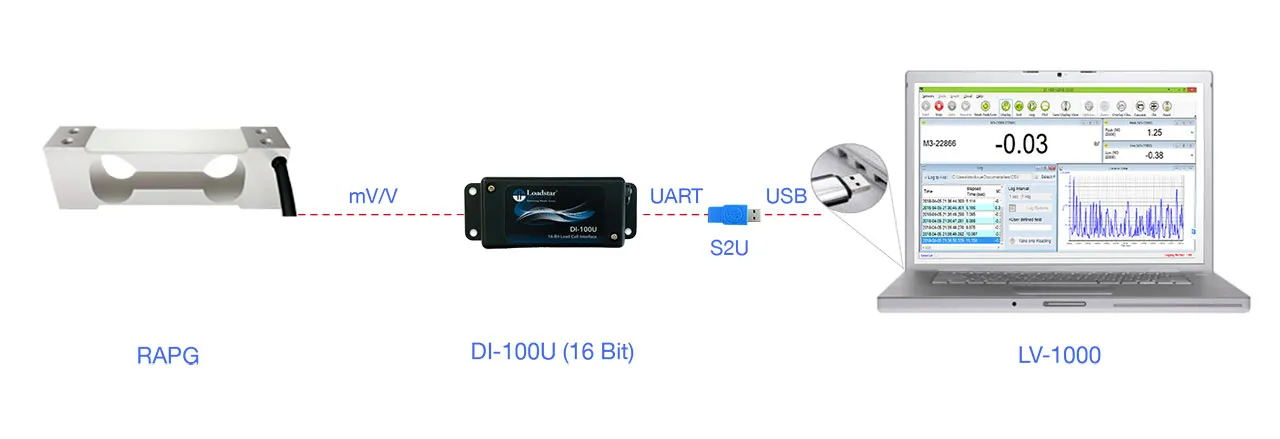

RAPG Single Point Load Cell PC Kit, 300 G Capacity, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Universal
Click to Enlarge

Resources & Downloads

Product Identification

Additional Feature:Load Cell PC Kit, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Universal
Product Type:Single Point Load Cell

Dimensions & Appearance

Dimensions:70x15x22 mm

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:5V to 10V

Output

Output:UART/USB

Features

Accuracy:0.02%
Option:Compression, Tension, Universal
Number of Wires:4
Sensor Type:Force
Technology:Resistive
Thread Size:M3
Connector Type:Pigtail
Material:Aluminum
Capacity:300 G
,
