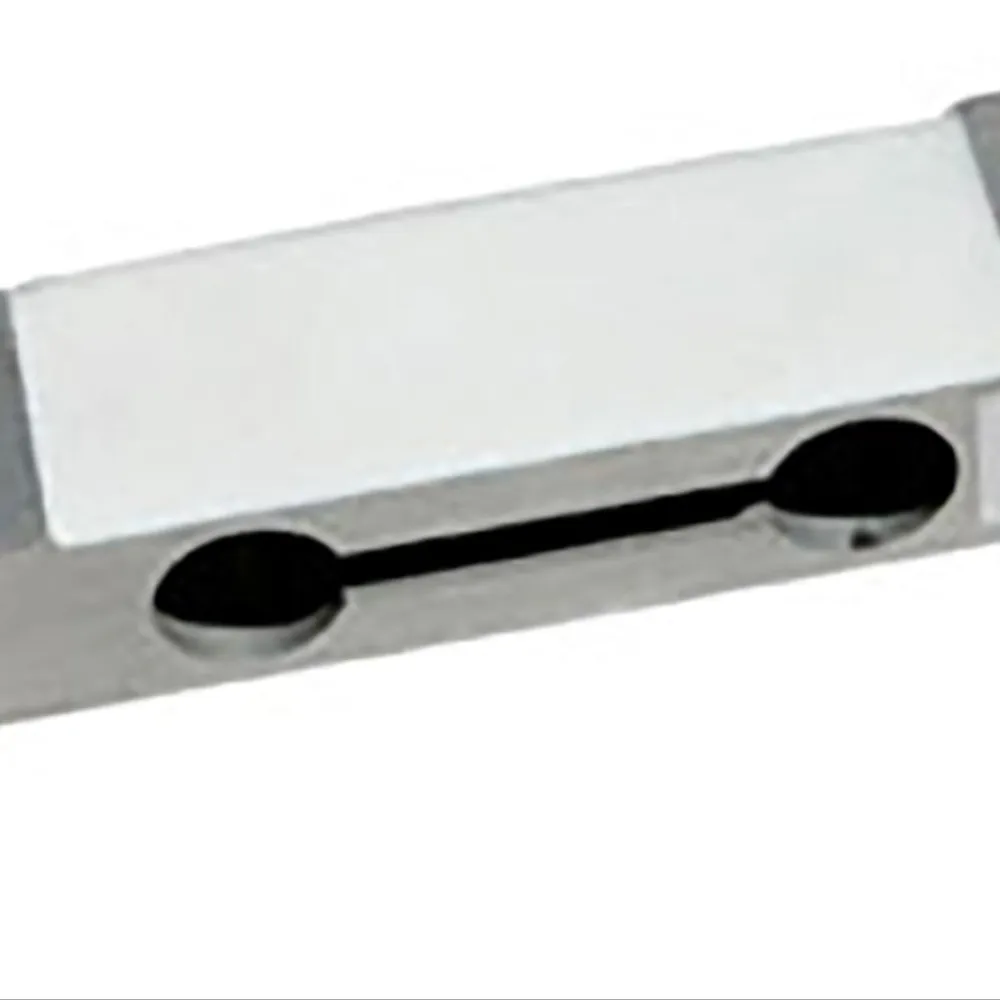

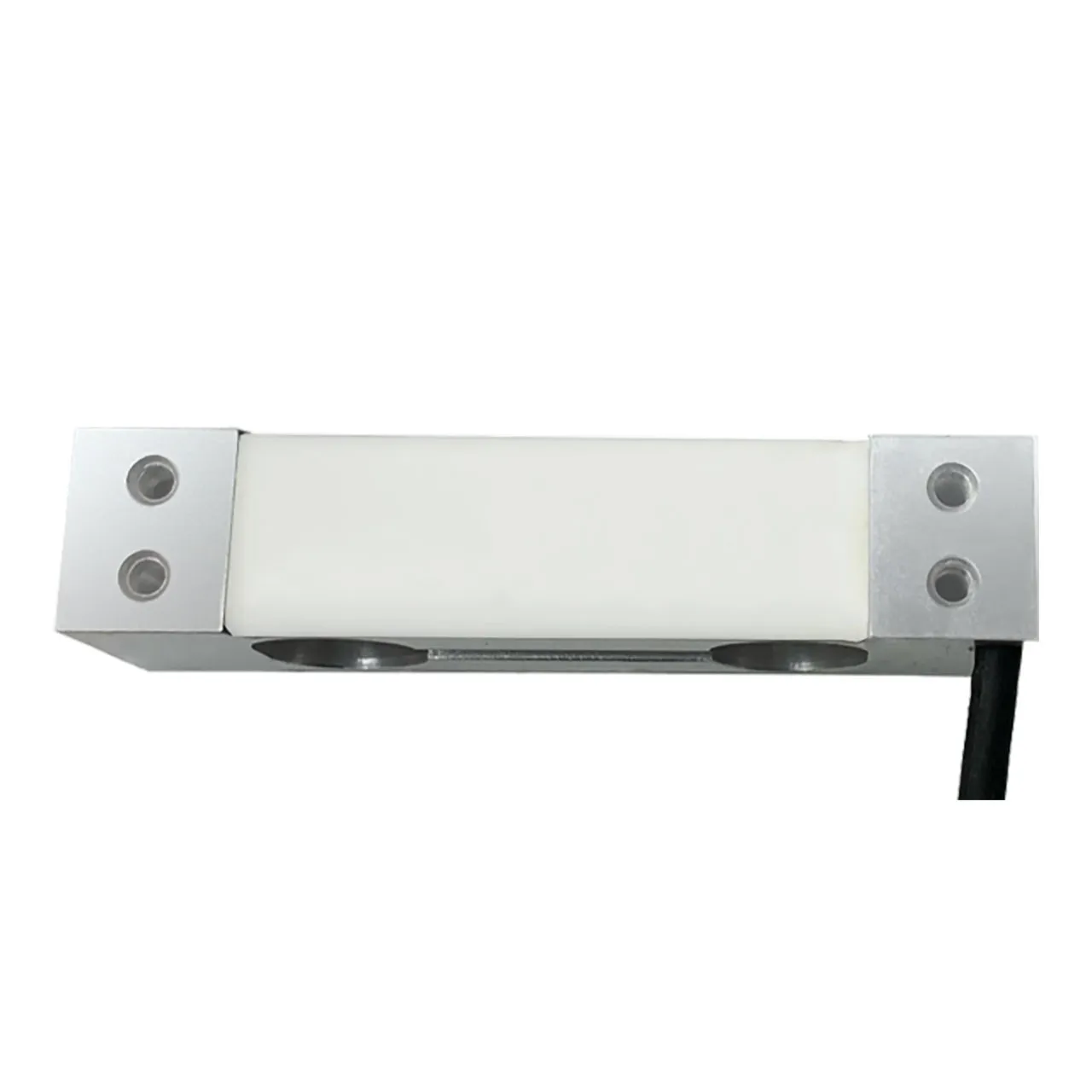

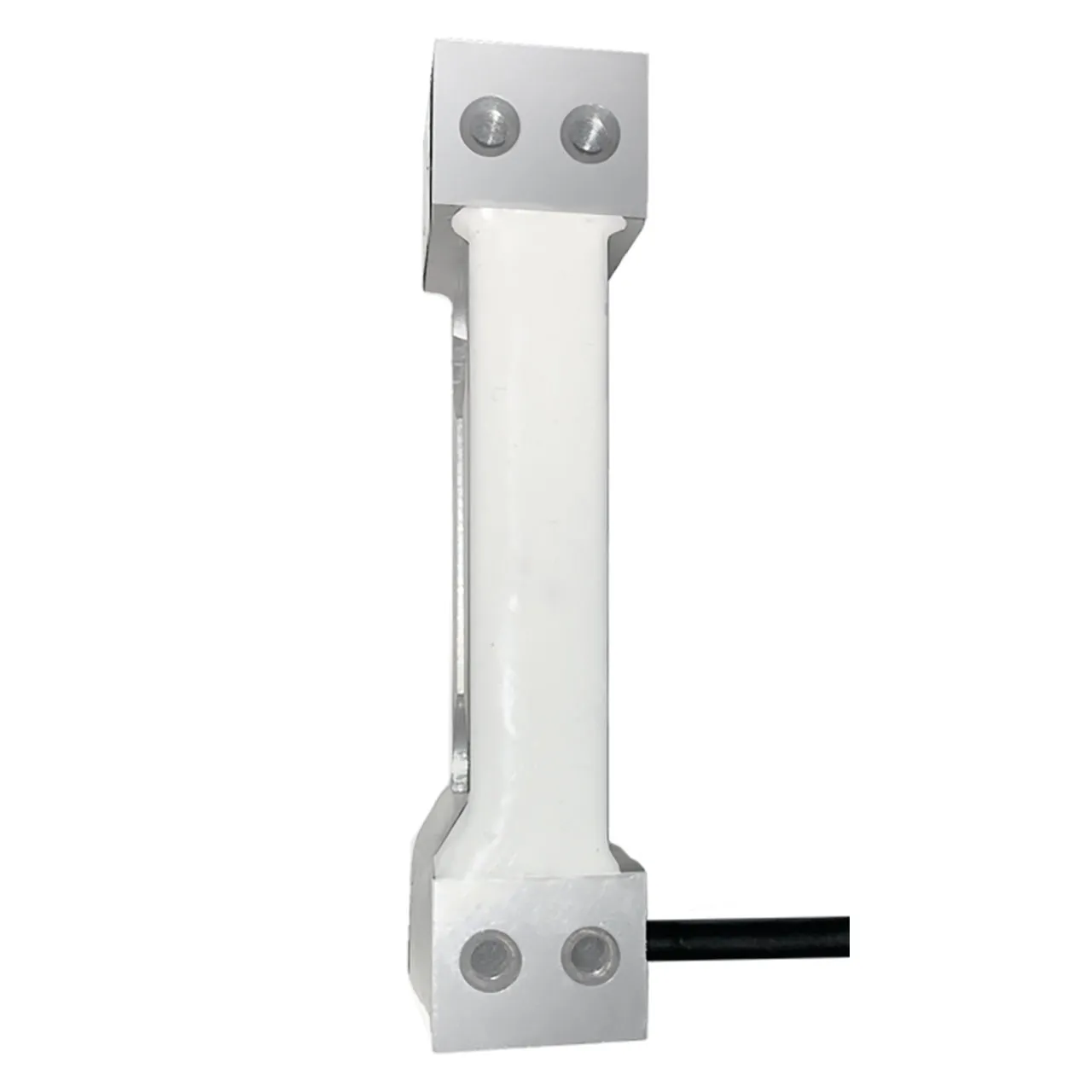

RAPG 2KG Aluminum Single Point Load Cell - Uncalibrated with Nominal mV/V value only

Features

  • Single Point load cells can be used for Compression, Tension or Universal (both Compressions and Tension) measurements
  • Excellent off-center loading compensation hence ideal for scale platforms and force measurement applications in dehydration chambers, wind tunnels etc
  • Pair with a digital interface or wireless interface to build small scales
  • Single Point Load Cell
  • Load cell only Uncalibrated
  • Capacity: 2 KG
  • Calibration Options: Compression,Tension,Universal
  • Sensor Only Includes: Uncalibrated Sensor, Nominal mV/V

Overview

Low capacity, single point load cells that are excellent for measuring small loads and are used widely to build small precision scales. Visit Loadstar Sensors for additional information.

Resources & Downloads

Product Identification

Additional Feature:Load Cell Only, Uncalibrated
Product Type:Single Point Load Cell

Dimensions & Appearance

Dimensions:70x15x22 mm

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:5V to 10V

Output

Output:mV/V

Features

Accuracy:0.02%
Option:Compression, Tension, Universal
Capacity:2 KG
Number of Wires:4
Sensor Type:Force
Technology:Resistive
Thread Size:M3
Connector Type:Pigtail
Material:Aluminum
,
