RAP4 Single Point Load Cell PLC Kit, 250 KG Capacity, AI-1000 Analog 0.5V to 4.5V DC Interface, Calibrated in Tension
Features
- Single Point load cells can be used for Compression, Tension or Universal (both Compressions and Tension) measurements
- Excellent off-center loading compensation hence ideal for larger scale platforms such as tote scales, pallet scales, tank weighing, hopper weighing and floor scales
- Unique ability to withstand off axis and off center loading
- Capacity: 250 KG
- Output Type: 0.5 to 4.5 VDC

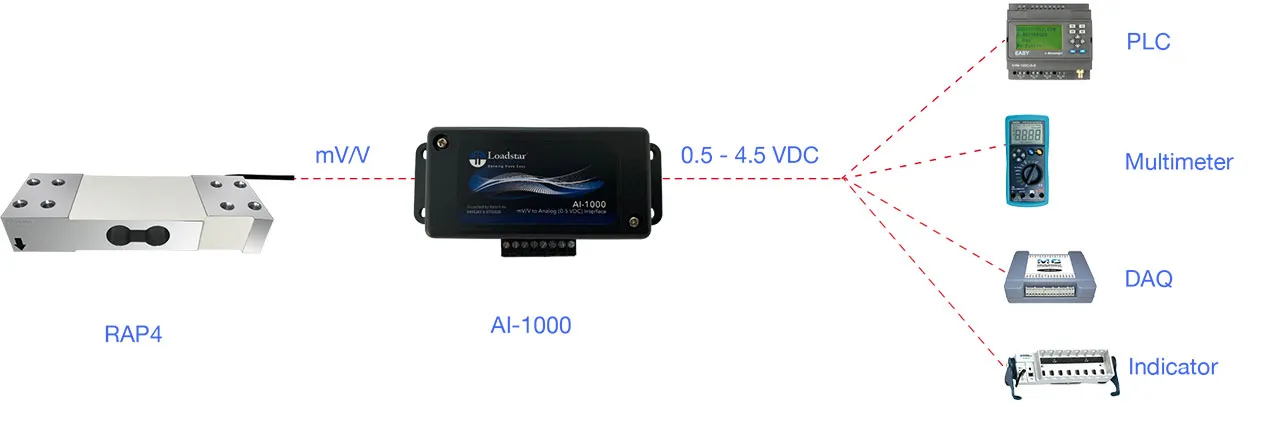

- PLC Kit Includes: Sensor, Interface, Power Supply, Calibration Certificate
Overview
Single point load cells that are one of the most accurate and versatile load cells. They are ideal for building scales because of their unique ability to withstand off axis and off center loading. Visit Loadstar Sensors for additional information.
Click to Enlarge
Resources & Downloads
Product Identification
Additional Feature:Load Cell PLC Kit, AI-1000 Analog 0.5V to 4.5V DC Interface, Calibrated in Tension
Product Type:Single Point Load Cell
Dimensions & Appearance
Dimensions:174x60x30 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:0.5 to 4.5 VDC
Features
Accuracy:0.02%
Option:Compression, Tension, Universal
Number of Wires:4
Sensor Type:Force
Technology:Resistive
Thread Size:M8
Connector Type:Pigtail
Material:Aluminum
Capacity:250 KG
