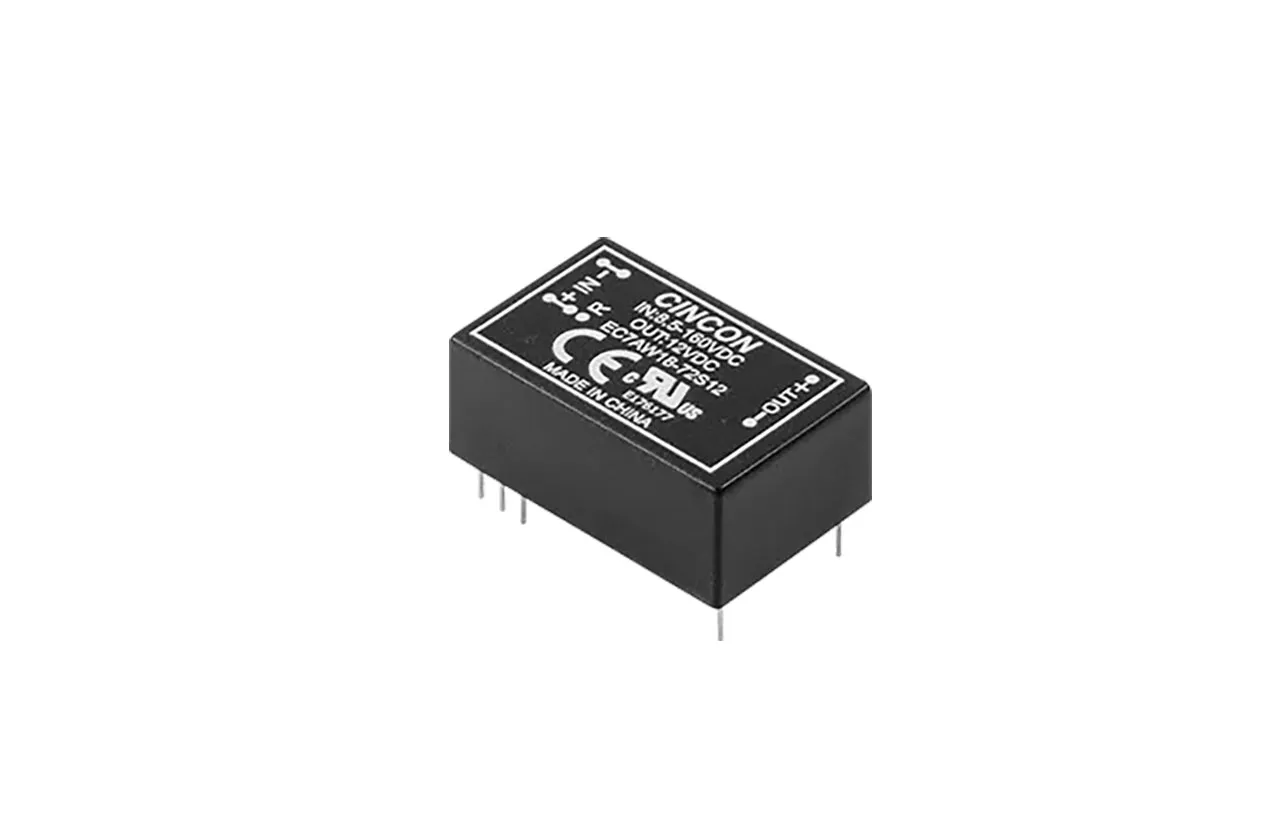

Railway Isolated DC-DC Converter 10W 5V 2000mA Out 8.5-160Vin Positive Logic Remote On-Off PCB-Mount

Features

  • Efficiency up to 88%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Positive Logic Remote On/Off
  • Low No Load Power Consumption
  • Fully protected (OCP/OVP/UVLO)
  • 3000Vac I/O Isolation
  • Operating Ambient Temperature -40 to +100°C
  • 1.25" x 0.8" x 0.5" Size Meet Industrial Standard
  • CB Test Certificate IEC62368-1
  • EN55032/EN55035/EN50155 Compliant with External Circuits
  • UL62368-1 3rd (Reinforced Insulation) Approval
  • Shock & Vibration EN50155 (EN61373) Compliant
  • Fire & Smoke EN45545-2 Compliant
  • 5000m Operating Altitude

Overview

Railway Isolated DC-DC Converter 10W 5V 2000mA Out 8.5-160Vin Positive Logic Remote On-Off PCB-Mount.

Product Identification

Manufacturer Series:EC7AW18
Additional Feature:Positive Logic Remote ON/OFF
Product Type:Isolated DC-DC Converter

Compliance

Agency Approvals:UL 62368-1, UL, CUL, CB, EN, CE, UKCA

Dimensions & Appearance

Color:Black
Mounting:PCB
Height:0.50 in.
Width:0.80 in.
Length:1.25 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:DIP-24

Input

Maximum Input Current:0.166 A
Input Voltage Range:10 VDC to 160 VDC
Input Voltage:72 VDC, 110 VDC

Output

Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:PC Pins
Output Current:2 A

Features

Pins:9
AC Power Cord:N/A
Efficiency:84%
Power Rating:10 W
,
