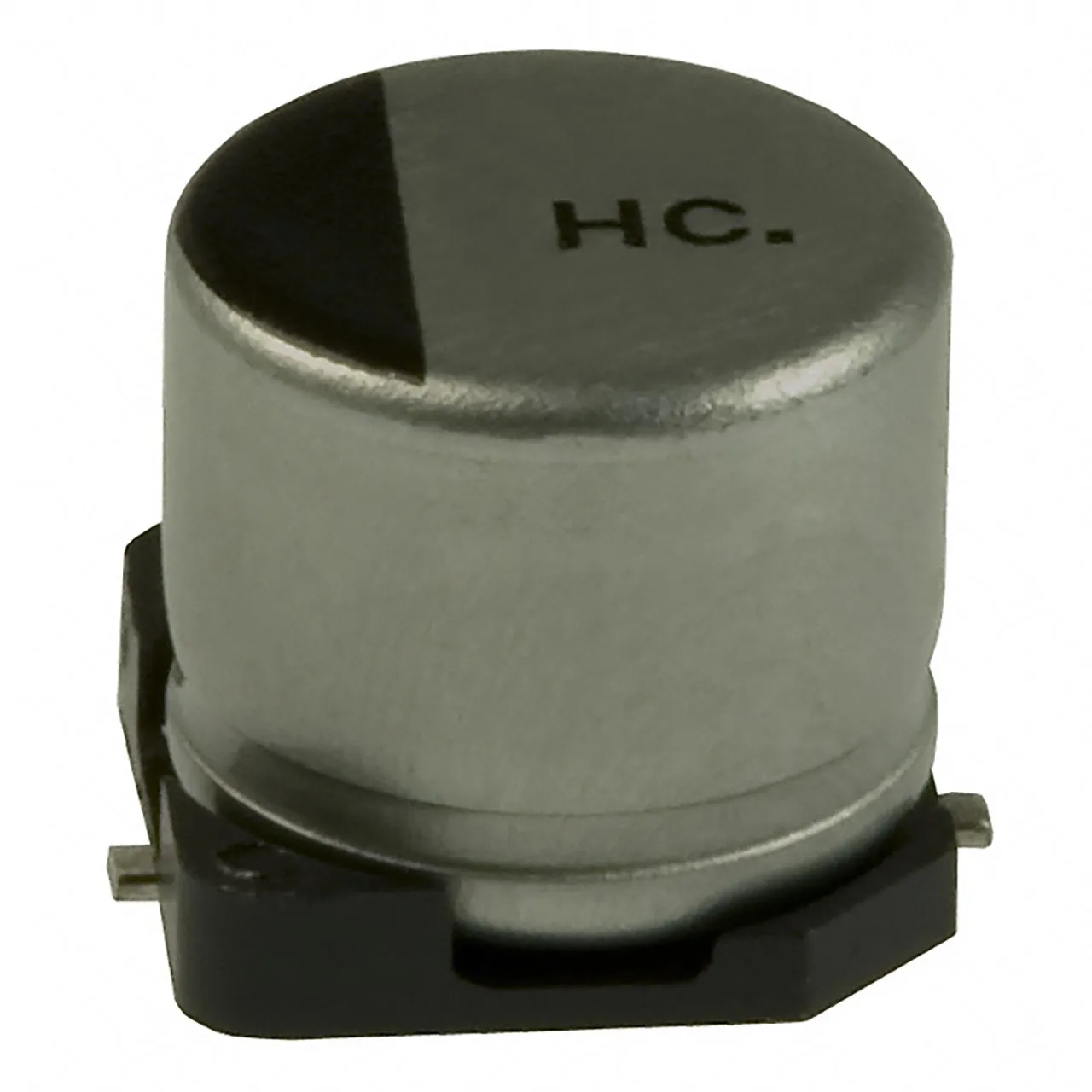

Radial Aluminum Electrolytic Capacitor 22uF 35V SMD
Features
- Capacitance: 22 uF
- Tolerance: ±20%
- Voltage - Rated: 35 V
- Lifetime @ Temp: 3000 Hrs @ 105°C
- Operating Temperature: -40°C ~ 105°C
- Polarization: Polar
- Ratings: AEC-Q200
- Applications: Automotive
- Ripple Current @ Low Frequency: 55 mA @ 120 Hz
- Ripple Current @ High Frequency: 93.5 mA @ 10 kHz
- Size / Dimension: 0.248" Dia (6.30mm)
- Height - Seated (Max): 0.228" (5.80mm)
- Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
Overview
If they have a sentence or paragraph, you can put it here.
Product Identification
Product Type:Electrolytic
Dimensions & Appearance
Body Diameter:6.3 mm
Mounting:SMD
Height:5.5 mm
Operating conditions
Maximum Operating Temperature:105°C
Features
Construction:Radial
Tolerance:20%
Capacitance (uF):22
Capacitance:22 uF
Voltage Rating:35 VDC
