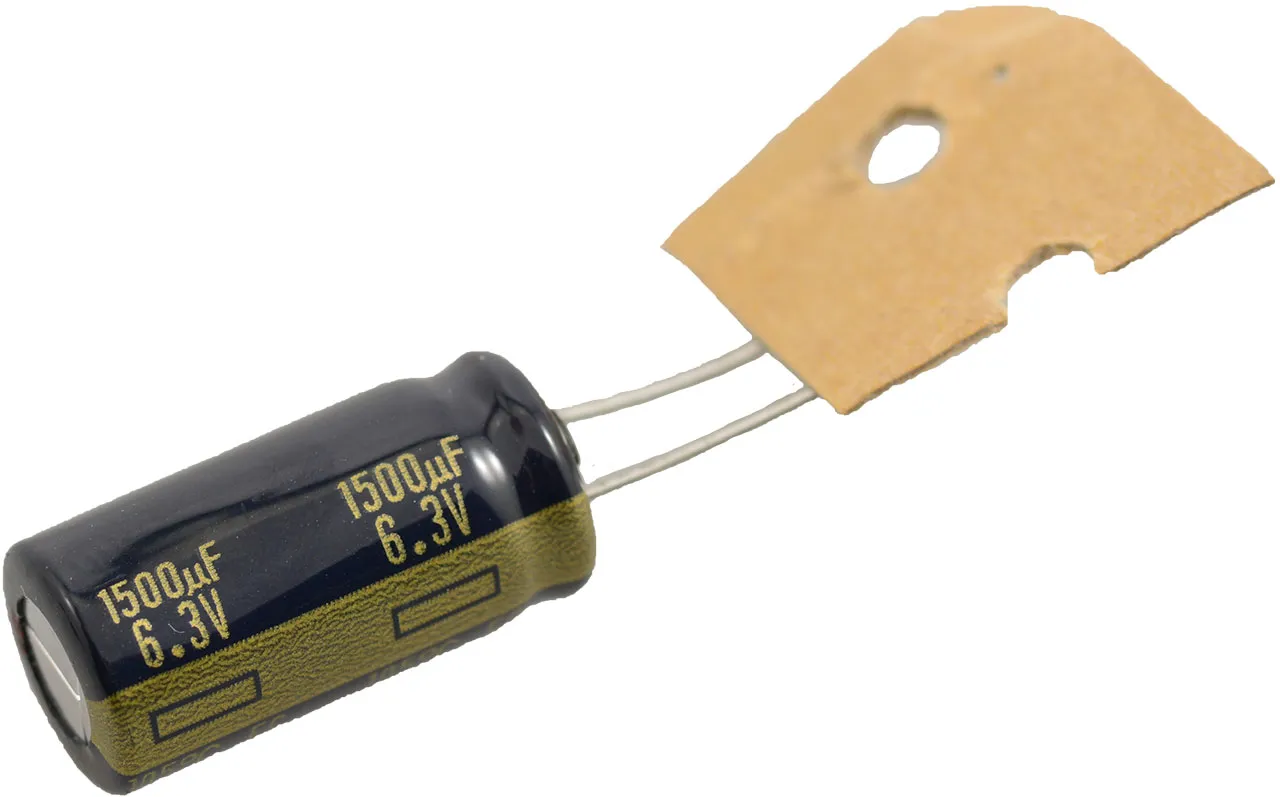

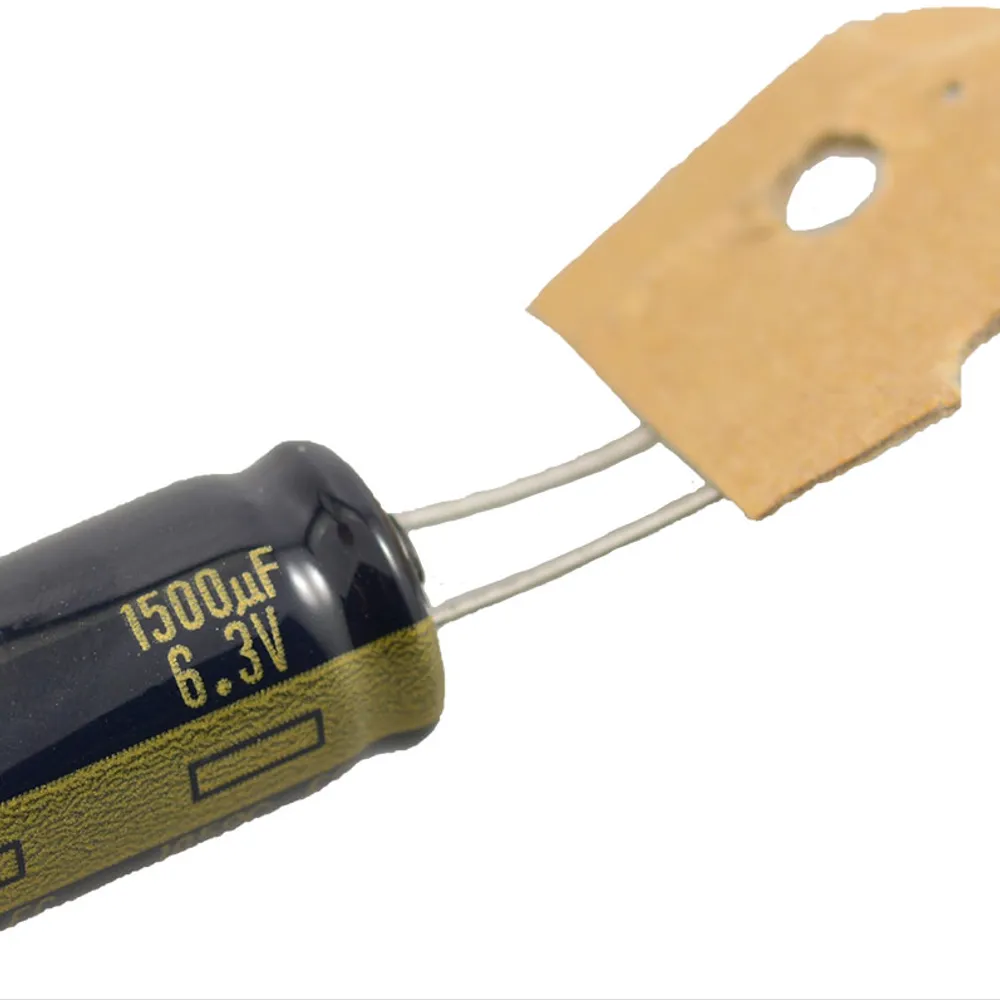

Radial Aluminum Electrolytic Capacitor 1500uF 6.3V Can
Features
- Capacitance: 1500 uF
- Tolerance: ±20%
- Voltage - Rated: 6.3 V
- Lifetime @ Temp: 5000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Applications: General Purpose
- Ripple Current @ Low Frequency: 1.037 A @ 120 Hz
- Ripple Current @ High Frequency: 1.22 A @ 100 kHz
- Impedance: 52 mOhms
- Lead Spacing: 0.197" (5.00mm)
- Size / Dimension: 0.394" Dia (10.00mm)
- Height - Seated (Max): 0.787" (20.00mm)
- Mounting Type: Through Hole
- Package / Case: Radial, Can
Overview
Product Identification
Product Type:Electrolytic
Dimensions & Appearance
Body Diameter:10 mm
Mounting:Through Hole
Height:20 mm
Operating conditions
Maximum Operating Temperature:105°C
Features
Construction:Radial
Tolerance:20%
Voltage Rating:6.3 VDC
Capacitance (uF):1500
Pitch:5 mm
Capacitance:1500 uF
