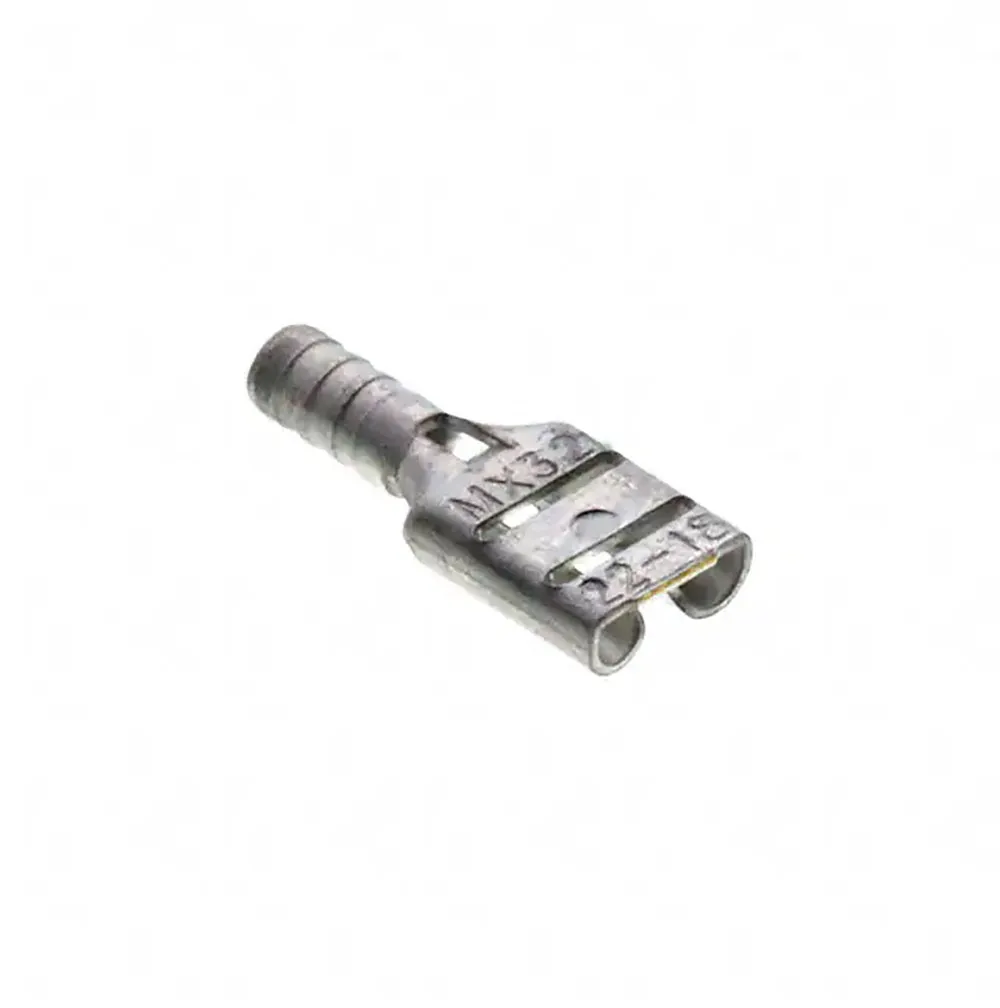

Quick Connect 0.187" Female 22-18 AWG Non-Insulated Crimp

Specifications

  • Series: Krimptite
  • Terminal Type: Standard
  • Gender: Female
  • Tab Width: 0.187" (4.75 mm)
  • Tab Thickness: 0.032" (0.81 mm)
  • Tab Length: 0.250" (6.35 mm)
  • Length - Overall: 0.580" (14.73 mm)
  • Termination: Crimp
  • Wire Gauge: 22-18 AWG
  • Insulation: Non-Insulated
  • Mounting Type: Free Hanging (In-Line)
  • Contact Material: Brass
  • Contact Finish: Electro-Tin
  • Base Part Number: 019016

Product Identification

Product Type:Quick Connect
Manufacturer Series:ValuePro

Dimensions & Appearance

Width:0.320 in.
Length:0.580 in.
Color:Zinc-Chromate
Body Material:Brass

Features

Stud Size:0.187" x 0.032"
Insulation:Non-Insulated
Gender:Female
Wire Gauge (AWG):22-18
Plating:Tin
,
