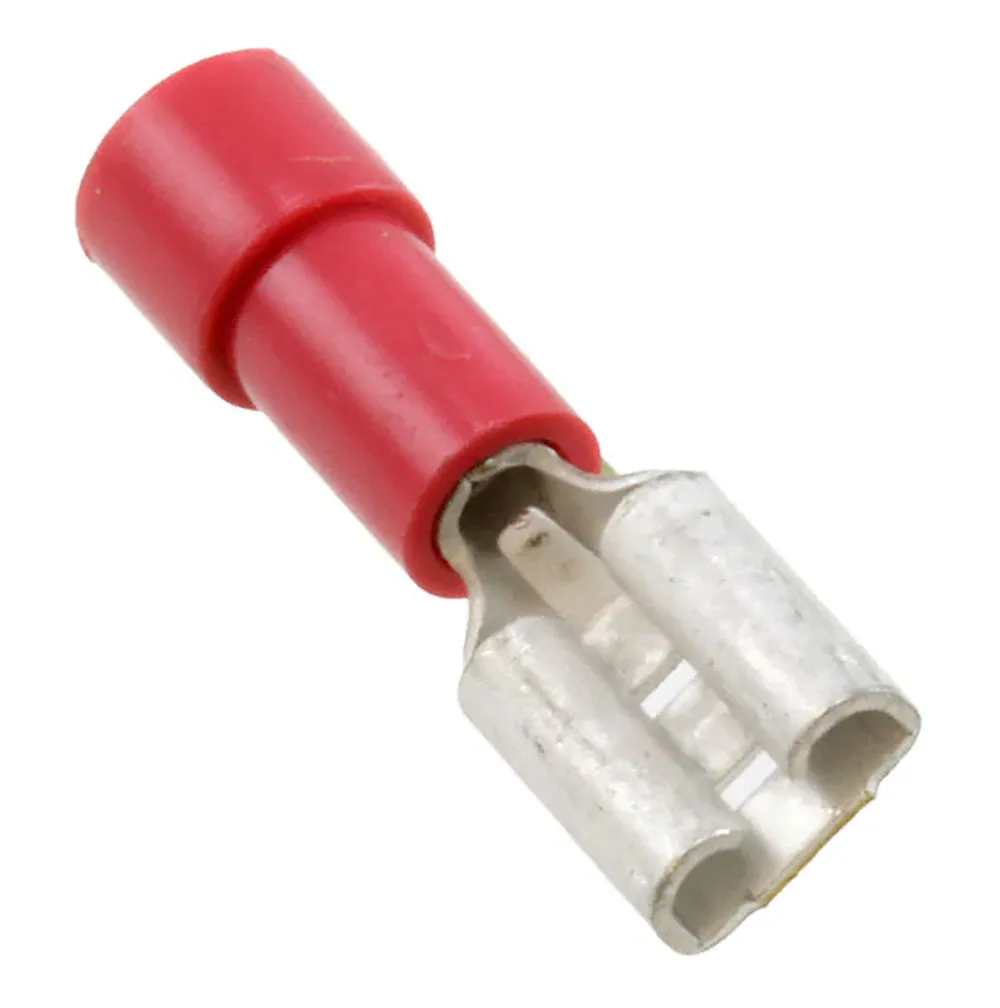

Quick Connect 0.187" Female 18-22 AWG Crimp Non-Mating End Insulated

Specifications

  • Series: InsulKrimp
  • Terminal Type: Standard
  • Gender: Female
  • Tab Width: 0.187" (4.75 mm)
  • Tab Thickness: 0.020" (0.51 mm)
  • Tab Length: 0.250" (6.35 mm)
  • Length - Overall: 0.789" (20.04 mm)
  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Insulation: Non-Mating End Insulated
  • Mounting Type: Free Hanging (In-Line)
  • Color: Red
  • Contact Material: Brass
  • Contact Finish: Electro-Tin
  • Insulation Diameter: 0.130" (3.30 mm)
  • Base Part Number: 019017

Product Identification

Product Type:Quick Connect
Manufacturer Series:ValuePro

Dimensions & Appearance

Width:0.238 in.
Color:Red
Length:0.789 in.
Body Material:Brass

Features

Stud Size:0.187" x 0.020"
Insulation:Vinyl
Gender:Female
Wire Gauge (AWG):22-18
Plating:Tin
,
