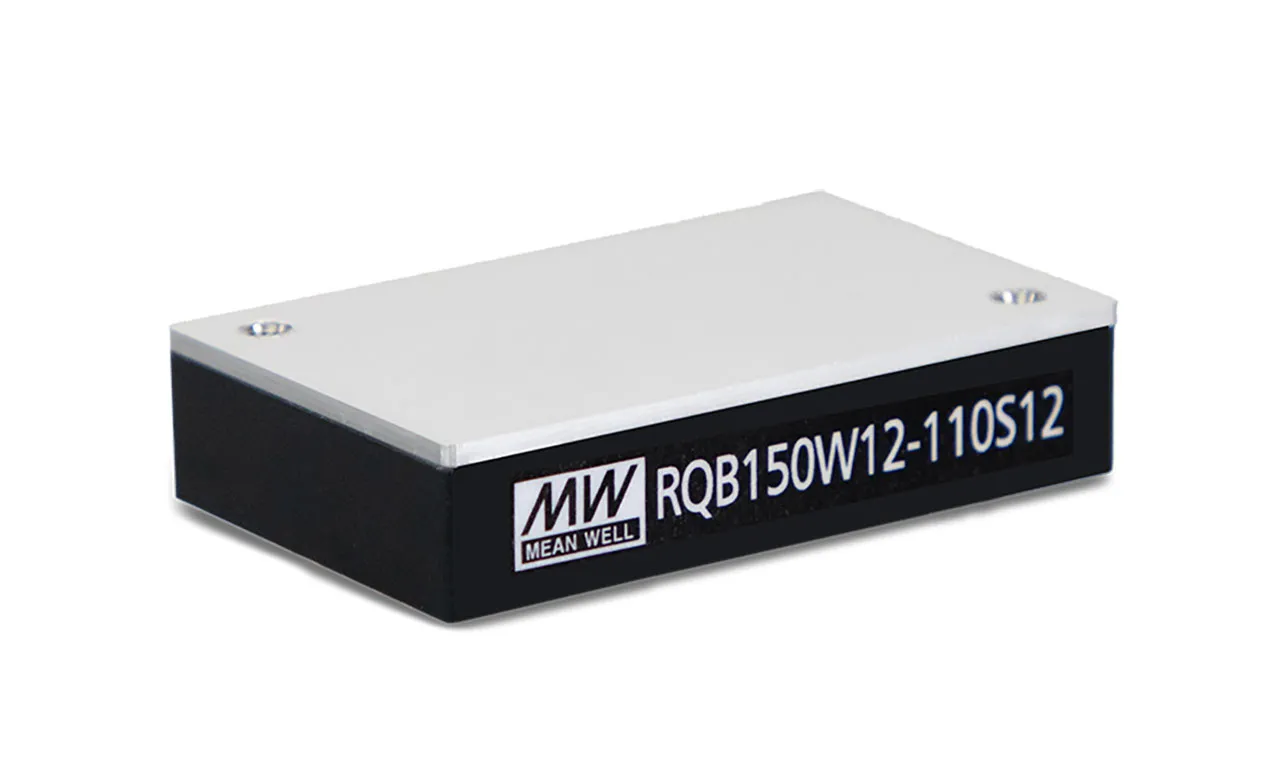

Quarter-Brick 150W Railway DC-DC Converter Wide Input 14-160VDC Output 12V 12.5A

Features

• Quarter-brick (2.28" x 1.45" x 0.5") with industrial standard pin-out
• Compliance with railway standard EN50155
• 12:1 (14 to 160 VDC) wide input range
• Wide operating temperature range -40C to +90C
• No minimum load required
• Fully encapsulated
• Protections: short circuit (continuous), overload, over temperature, over voltage, input under voltage lockout
• 3KV AC I/O isolation
• Remote ON/OFF control and remote sense
• Trimming output (±10%)
• 3-year warranty

Overview

The RQB150W12 series is a 150W module type DC/DC reliable railway converter with quarter brick package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40C to +90C, 3KV AC I/P-O/P isolation voltage, meets EN50155 with external circuits, continuous-mode short circuit protection, and more. The models input of 14 to 160VDC 12:1 wide input range, and various output voltage, 12V, 24V, 48V, 54V for single output, which are suitable for railway, trams, busses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Applications

• Bus, tram, metro or railway system
• Telecom/datacom system
• Wireless network
• Industrial control facility
• Instrument
• Analyzer
• Highly vibrating, heavily dusty, extremely low or high temperature harsh environment
