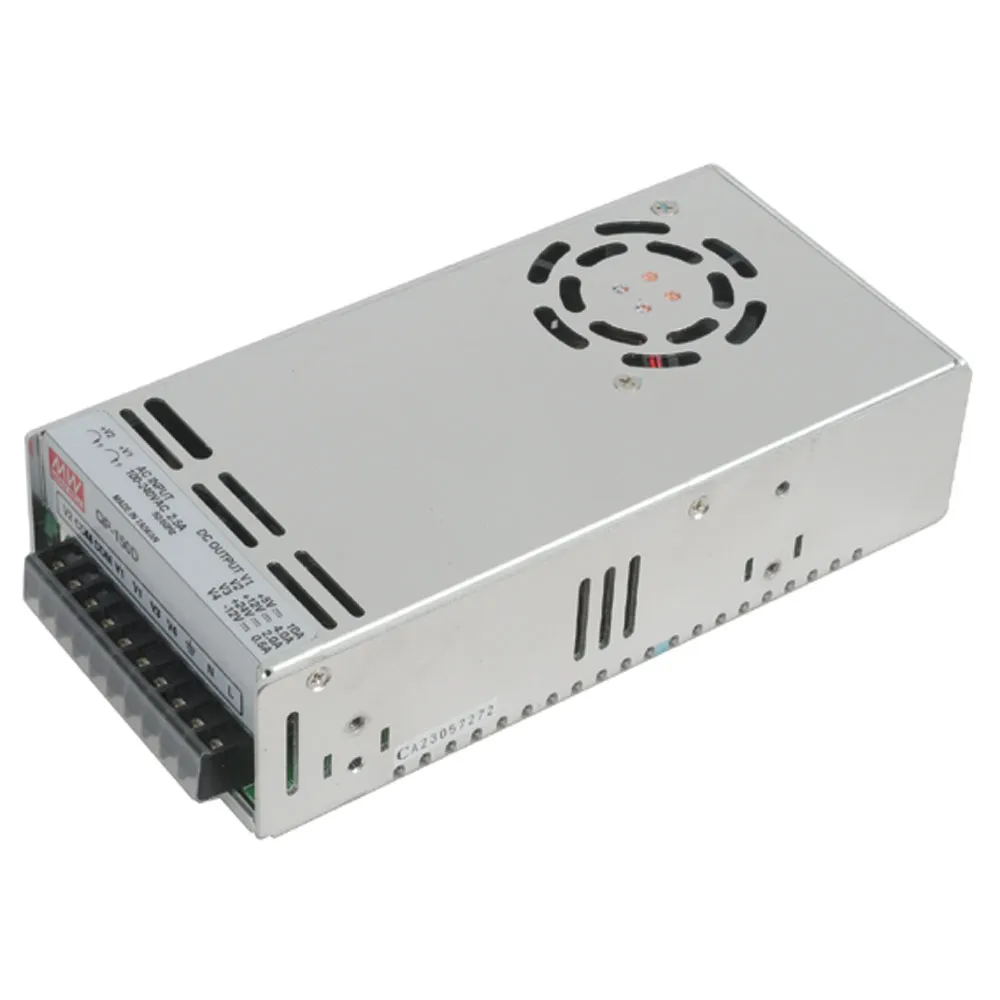

Quad Output Enclosed Switching DC Power Supply

CH1: 5 Volts DC @ 10 Amps
CH2: 12 Volts DC @ 4 Amps
CH3: 24 Volts DC @ 2 Amps
CH4: -12 Volts DC @ 0.6 Amps

Specifications

  • 100% full-load burn-in
  • Universal AC input
  • Power Factor Correction
  • Three-year warranty
  • 2.5 watts/in3
  • 105°C output capacitor
  • -10° to +60°C working temperature
  • Watts: 150.2
  • Input voltage: 90-264VAC@47-63Hz
  • Power density: 2.47W/in3
  • Ripple & noise: 120mV p-p
  • Load reg.: 2.0%
  • Line reg.: 1.0%
  • Inrush current (A) @ 120VAC: 45
  • Isolation voltage: 3000
  • Leakage current: 3.5mA @ 240V
  • Rise time: 50ms
  • Hold up time: 16ms
  • Vibration: 10-500HZ; 2G
  • Voltage adjustment: 10%
  • Efficiency: 78%
  • MTBF hours: 141,500
  • Mating connector: P/N 103587
  • Weight: 1.8 lbs.
  • Agency approval: UL/CUL/TUV/CE

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:QP-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:2 in.
Width:3.9 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Output Voltage (Channel 4):-12 VDC
Output Current (Channel 4):0.6 A
Number of Outputs:4
Output Voltage (Channel 2):12 VDC
Output Voltage (Channel 3):24 VDC
Output Current (Channel 3):2 A
Output Voltage (Channel 1):5 VDC
Output Current (Channel 2):4 A
Additional Output Voltages (VDC): -12, 12, 24
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):10 A
Output Current:10 A

Features

Minimum Isolation Voltage:3000V
Efficiency:78%
Power Rating:150.2 W
,
