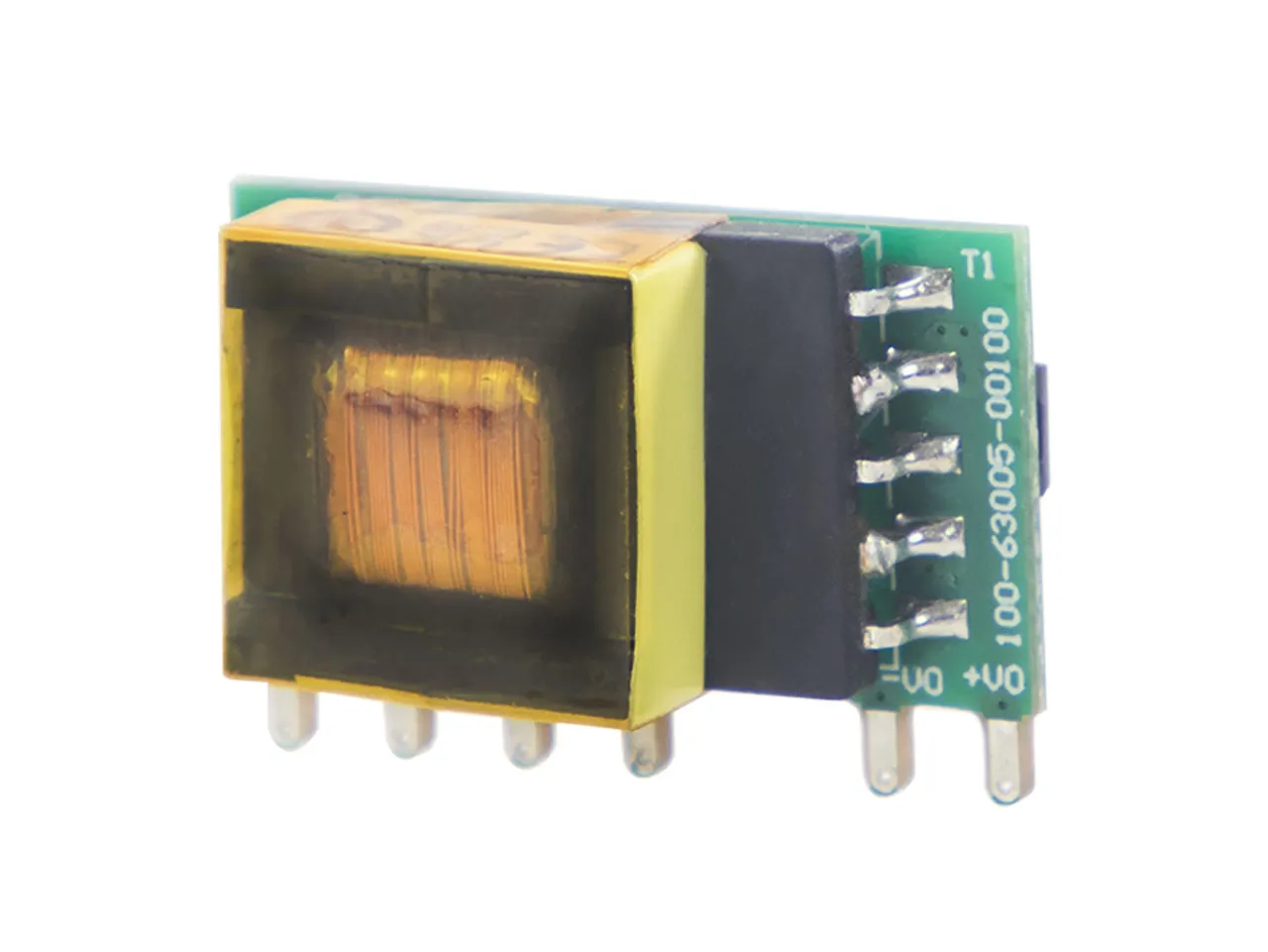

PWR SPLY,SW,OPEN,5W,[email protected],85-305VAC,CLASS II,PC PINS
Product Identification
Additional Feature:Class II
Product Type:Industrial On-Board Type Power Module
Manufacturer Series:IOB-05
Compliance
Agency Approvals: EN, UKCA, CE
Dimensions & Appearance
Style:Open Frame
Height:0.43 in.
Width:0.58 in.
Length:1.04 in.
Operating conditions
Minimum Operating Temperature:-40deg;C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.2 A
Input Voltage:85 VAC to 305 VAC
Output
Number of Outputs:1
Output Current:0.21 A
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:81%
Power Rating:5 W
