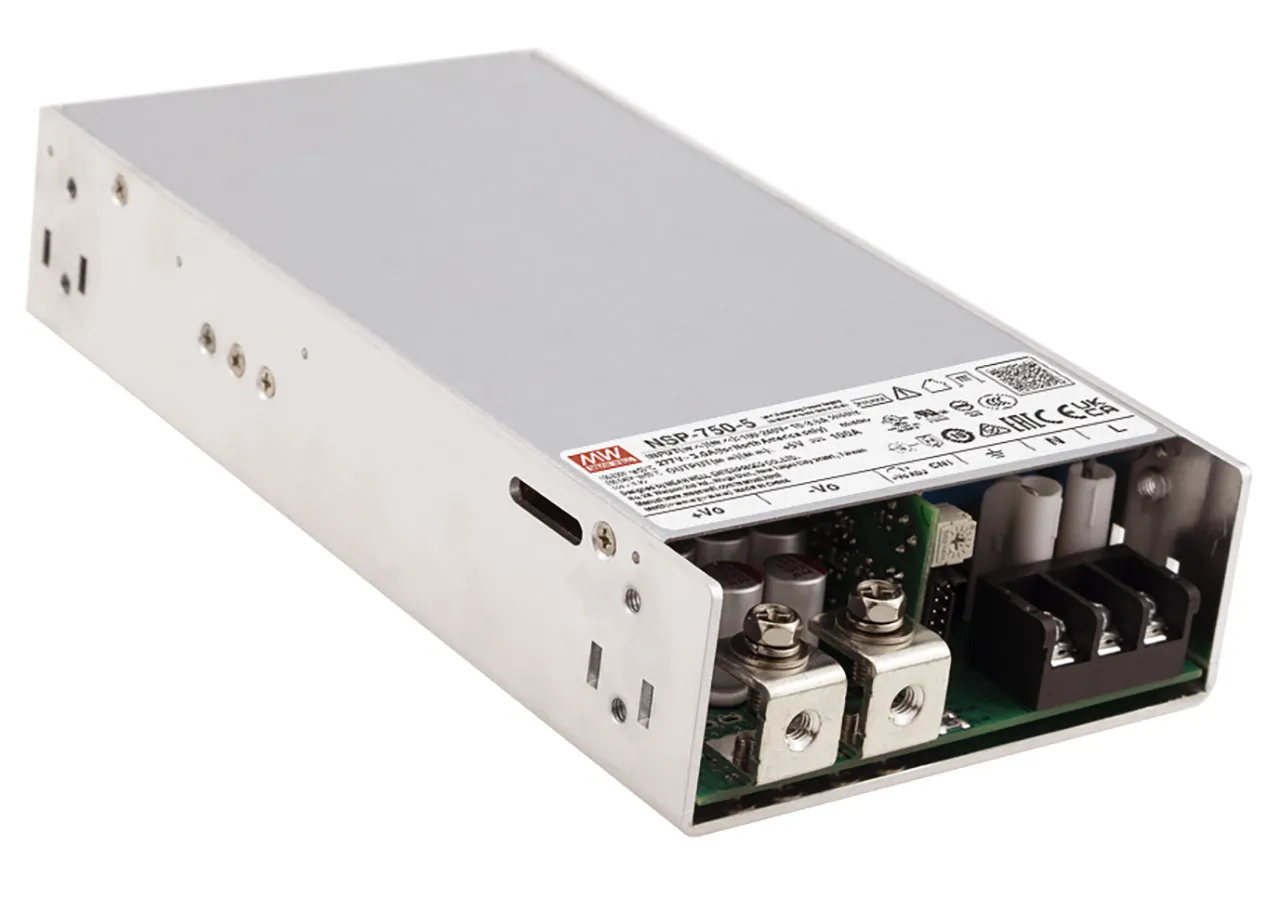

PWR SPLY,SW,ENCL,MED,[email protected],756W,85-305VAC,PFC,OVC3,200%P
Product Identification
Product Type:Medical Switching SMPS
Manufacturer Series:NSP-750
Compliance
Compliance:Compliance Docs
Agency Approvals: SEMI F47, CB, CCC, CE, C-TICK, CUL, DEKRA, EAC, EN, UKCA, UL
Dimensions & Appearance
Style:Medical Enclosed 2xMOPP
Color:Silver
Height:1.61 in.
Width:4.13 in.
Length:7.83 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 305 VAC
Maximum Input Current:8.2 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:60 VDC
Output Current:12.60 A
Features
PFC Function:Yes
Minimum Isolation Voltage:4200 VAC
Efficiency:95%
Power Rating:756 W
