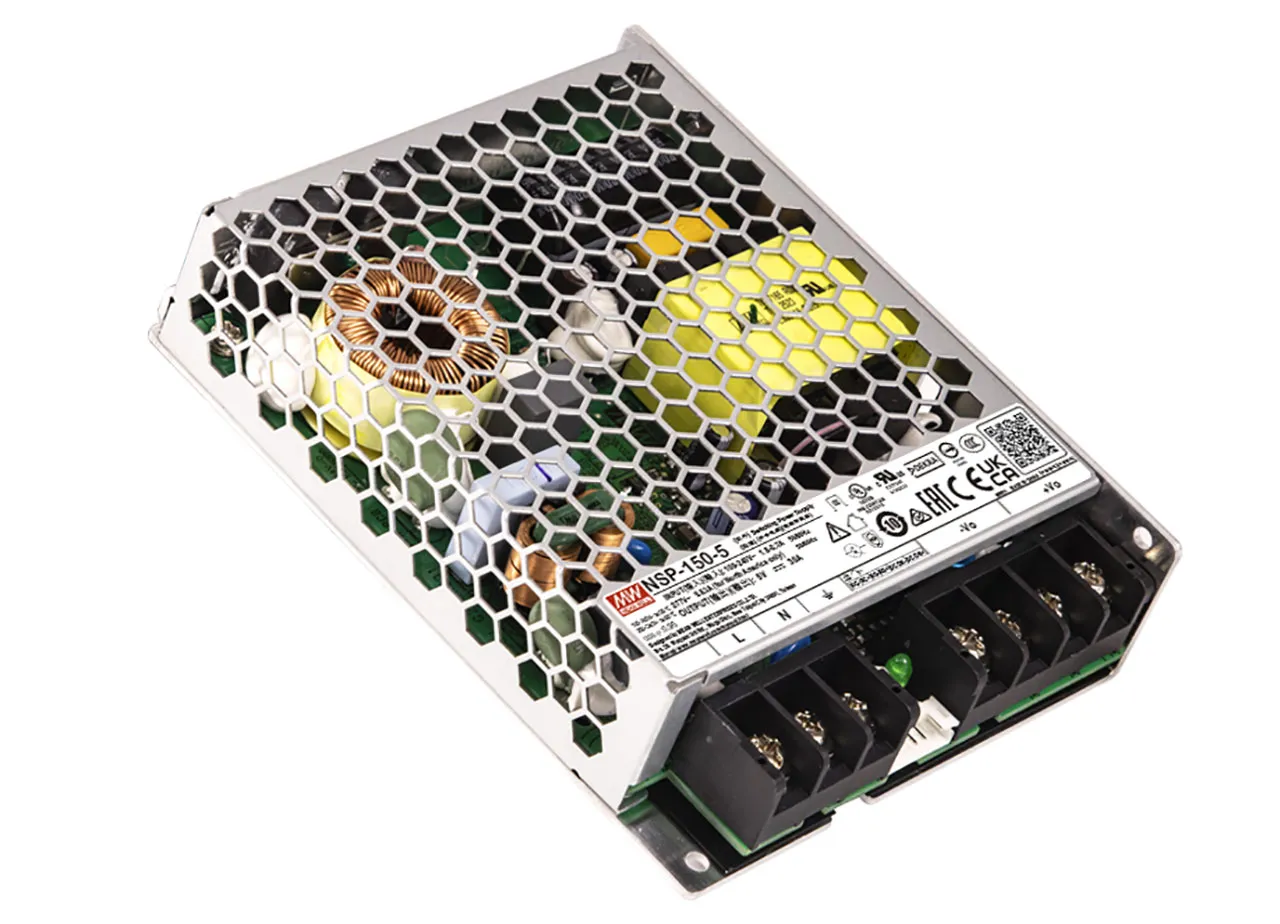

PWR SPLY,SW,ENCL,MED,[email protected],150W,85-305VAC,PFC,200%PEAK P
Product Identification
Product Type:Medical Switching SMPS
Manufacturer Series:NSP-150
Compliance
Agency Approvals: SEMI F47, CB, CCC, CE, C-TICK, CUL, DEKRA, EAC, EN, UKCA, UL
Dimensions & Appearance
Style:Medical Enclosed
Color:Silver
Height:1.18 in.
Width:3.82 in.
Length:5.08 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 305 VAC
Maximum Input Current:1.55 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current:12.50 A
Features
PFC Function:Yes
Minimum Isolation Voltage:4200 VAC
Efficiency:93%
Power Rating:150 W
