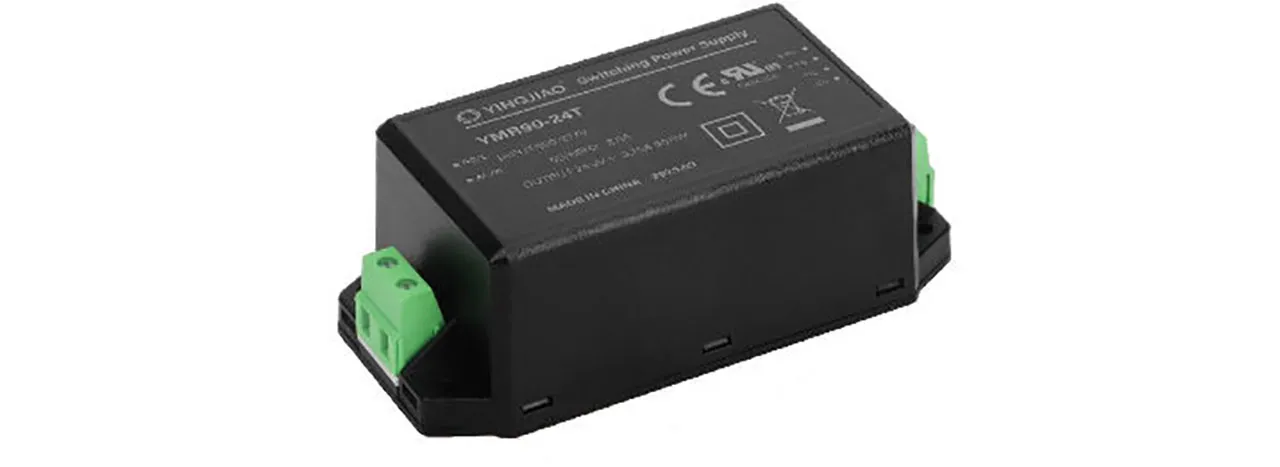

@PWR SPLY,SW,ENCAP,[email protected],85.05W,85-305VAC,92.5%,UL/CE,TE
Product Identification
Product Type:Power Module SMPS
Manufacturer Series:YMR90
Compliance
Agency Approvals: CE, UKCA, UL
Dimensions & Appearance
Style:Encapsulated
Color:Black
Height:1.33 in.
Width:2.07 in.
Length:4.29 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 305 VAC
Maximum Input Current:1.9 A
Output
Number of Outputs:1
Output Voltage:15 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:5.67 A
Features
Minimum Isolation Voltage:4000V
Efficiency:92.5%
Power Rating:85.05 W
