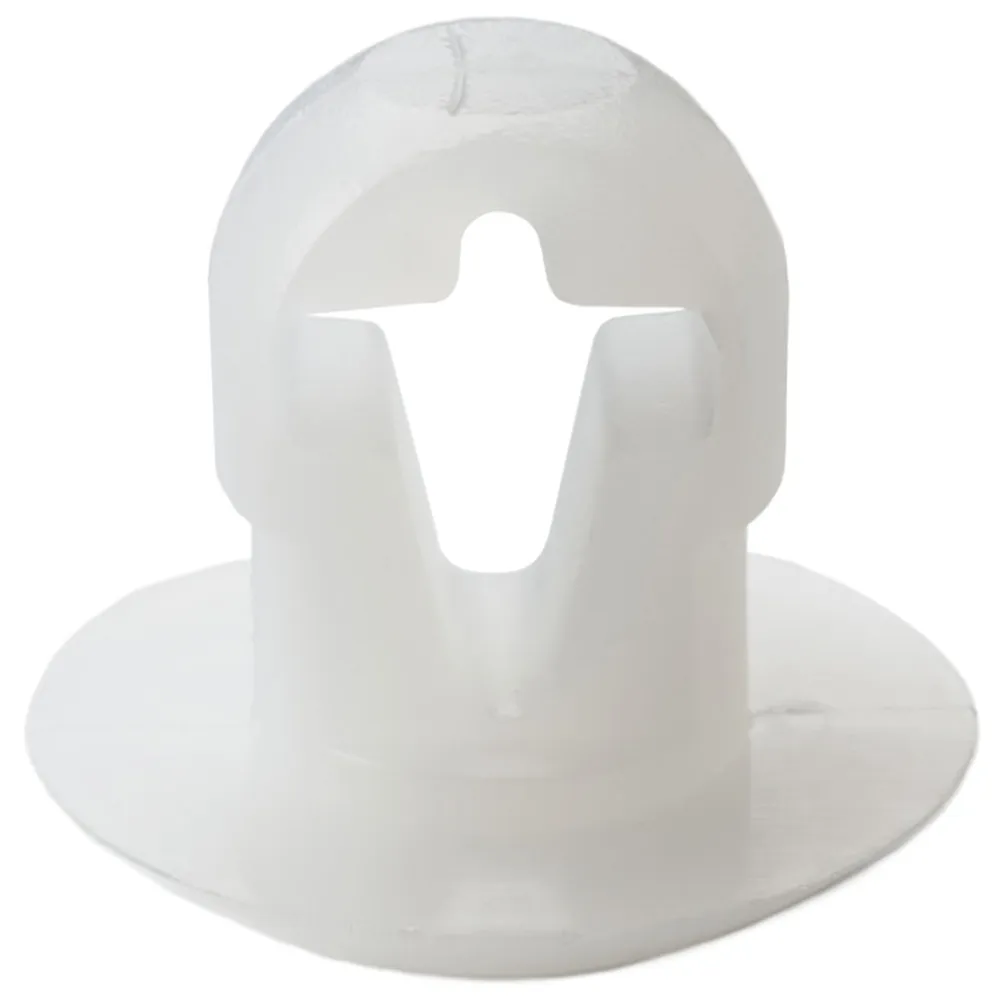

Push-Button Cable Tie Mount, 0.25" Hole Dia, 0.12" Max Panel, 0.2" Max Tie Width, PA66, Natural, 100 per Package

Features

• Push Mounts, when used with standard cable ties, provide a permanent bundling solution below a panel. The "button" style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
• Product Type: Push Mounts

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Cable Tie Width Max. (Imperial): 0.2"
• Fixation Method: Push Mount
• For Cable Ties: T18 - T50
• Height H (Imperial): .40"
• Height H (Metric): 10.20 mm
• Height H2 (Imperial): .08"
• Height H2 (Metric): 2.0 mm
• Length L (Metric): 10.7 mm
• Maximum Recommended Load (metric): 0.00 kgf
• Mounting Hole Diameter D (Imperial): 0.25 - 0.26"
• Mounting Hole Diameter D (Metric): 6.25 - 6.55 mm
• Mounting Hole Diameter D Max. (Imperial): 0.26"
• Mounting Hole Diameter D Max. (Metric): 6.55 mm
• Mounting Hole Diameter D Min. (Imperial): 0.25"
• Mounting Hole Diameter D Min. (Metric): 6.25 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.13"
• Panel Thickness (Metric): 3.2 mm
• Panel Thickness Max. (Imperial): 0.12"
• Panel Thickness Max. (Metric): 3.0 mm
• Panel Thickness Min. (Imperial): 0.118"
• Panel Thickness Min. (Metric): 3.0 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.26"
• Width W (Metric): 6.6 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306039006

Overview

HellermannTyton push mounts are used with our standard cable ties and offer a permanent bundling solution for installation below or underneath a panel. Designed for simple installation by pushing the mount through a pre-drilled hole. The low profile "button" style head is suitable in space constrained areas.
