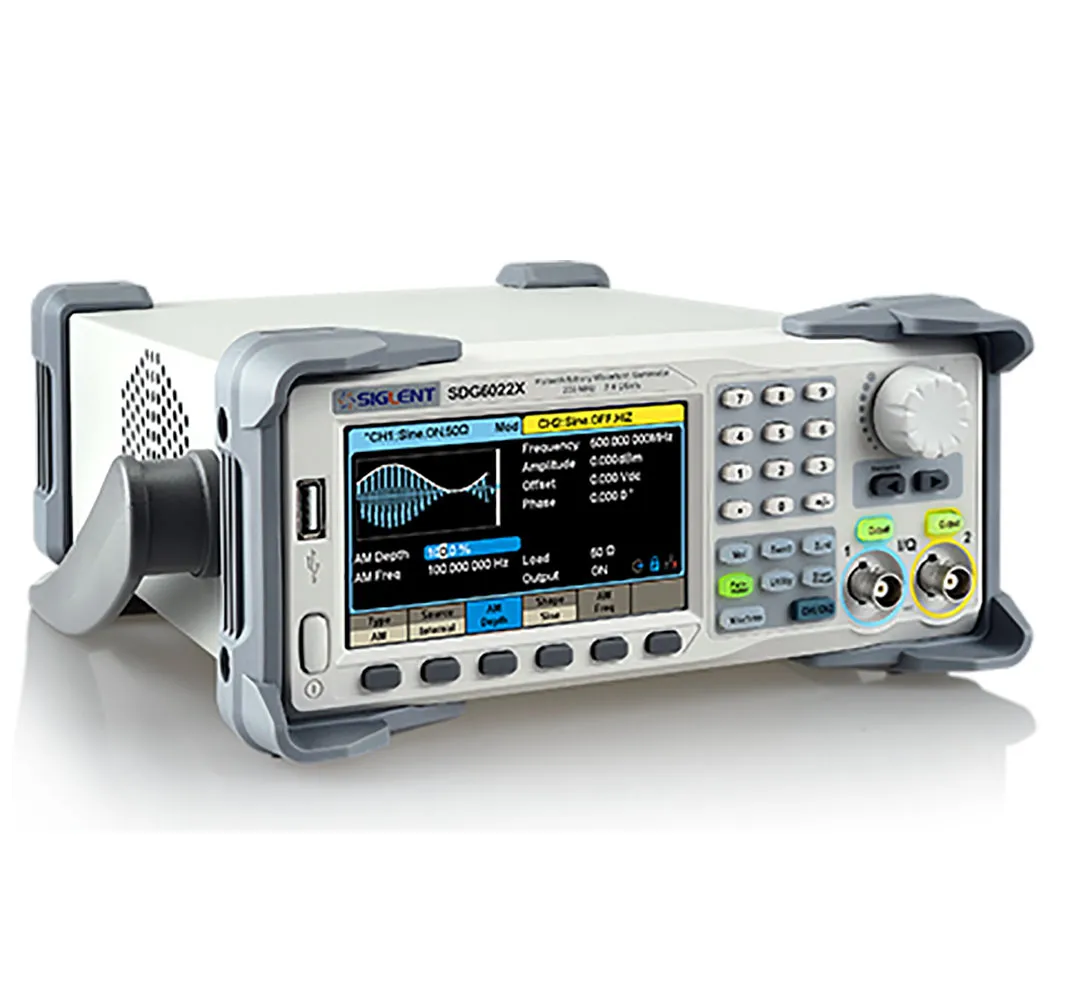

Pulse/Arbitrary Waveform Generator 2-Channel 200 MHz 2.4 GSa/s 16-Bit 20 Mpts

Features

• Continuous waveform generator - up to 500 MHz
• Pulse signal generator - fastest rise and fall time 1 ns, low jitter
• Function / Arbitrary Waveform Generator - 6 standard waveforms and up to 190 built-in arbitrary waveforms
• IQ signal generator - output IQ baseband and IF IQ signals
• Noise signal generator - output bandwidth adjustable Gaussian white noise
• PRBS generator - output bit rate and edge adjustable PRBS signals

Specifications

• Bandwidth: 200 MHz
• Sample Rate: 2.4 GSa/s (2X Interpolation)
• Channels: 2
• Vertical resolution: 16-bit
• Arbitrary waveform length: 2 to 20 Mpts
• Display: 4.3" touch screen display, 480 x 272 RGB
• Interface: Standard: USB Host, USB Device, LAN

Resources & Downloads

• Download Testing Open Socket Communications Using PuTTY (.pdf)
• Two-tone testing: Building an arbitrary waveform using the Equation Draw function (.pdf)
• Additional Application Support (offsite)
• Firmware (offsite)
• Drivers (offsite)
• Software (offsite)
• Scripts and Others (offsite)
• Siglent Probe Datasheet (offsite)
• SDG Series Programming Guide (offsite)
• SDG6000X Series Service Manual (offsite)
