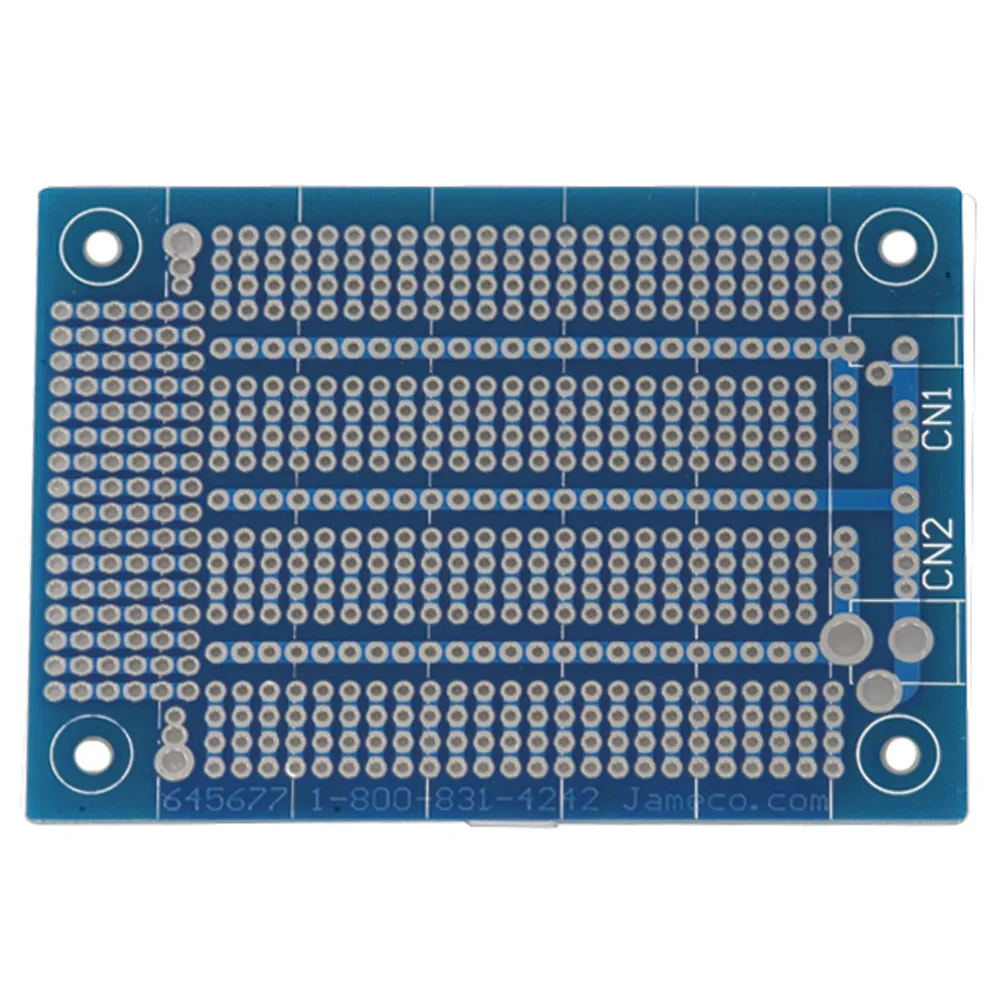

PT Series Prototyping Board

Accommodates any mixture of 0.3" to 0.6" wide ICs with any number of pins, and any combination of resistors, capacitors, diodes, transistors, etc.

Features:

• 3 power buses that connect to a power jack
• Size: 3.5"L x 2.5"W
• Hole Pads: Double-sided
• Number of Holes x Dia: 456 x .036"
• Number of Mounting Holes x Dia: 4 x .140"
• Color: Blue
• Power jacks recommended for CN2:
  • 2.1mm Non RoHS-compliant P/N 101178 / RoHS-compliant P/N 101179 or
  • 2.5mm RoHS-compliant P/N 101187
