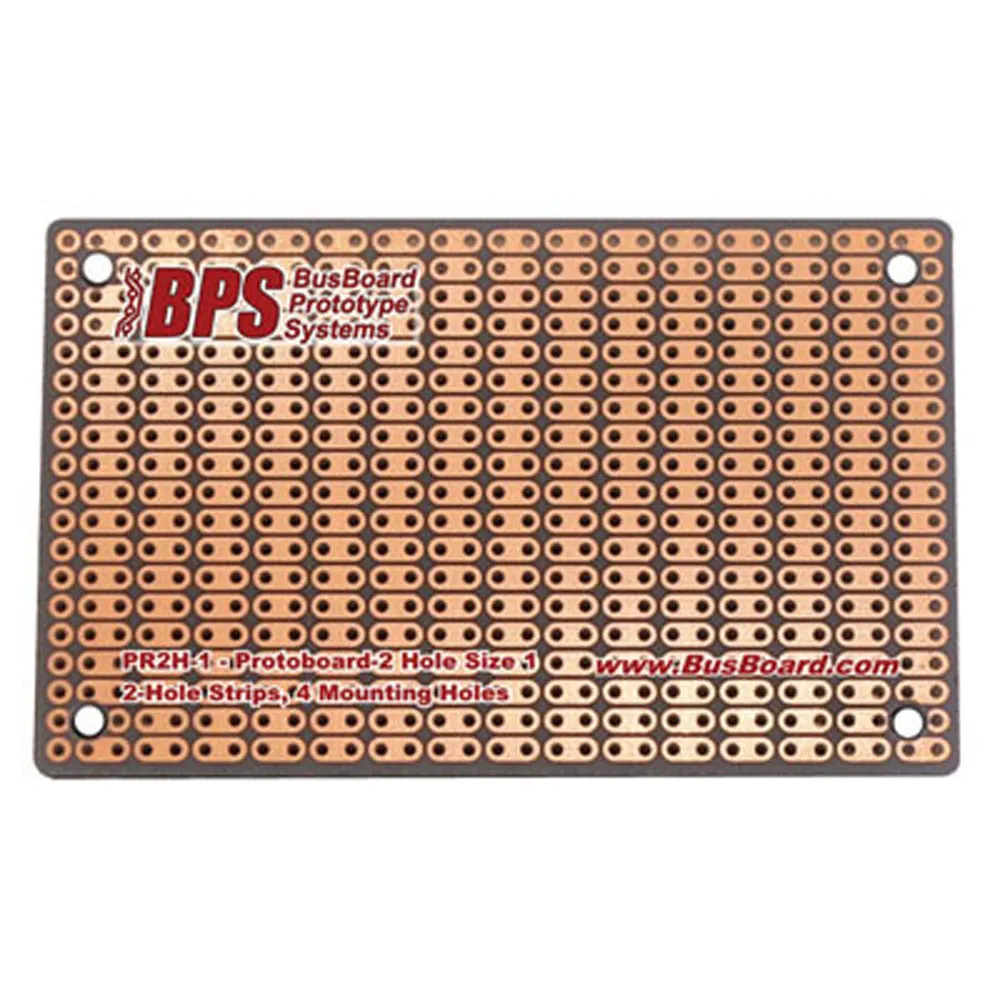

ProtoBoard Prototyping Circuit Board

PR2H1 ProtoBoard-2H Size1, 2-Hole Strips, 4 Mounting Holes

The convenient 2-hole ProtoBoard pattern provides an easy way to connect parts while maximizing usable board area. ProtoBoard-2H is a good pattern for compact circuit layouts, and it is often more convenient than pad-per-hole patterns. It is good for analog use as well as digital since many discrete components can be located closely. It is a single-sided board with holes on 0.1" centers. An anti-tarnish coating protects the copper for a long shelf-life and provides easy soldering.

Features:

• Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible
• 31 x 19 holes
• 0.037" holes are drilled on 0.1" (2.54mm) centers
• Four 0.125" mounting holes
• Size: 50 x 80mm (1.97 x 3.15in), 1/16" thick (1.6mm)
