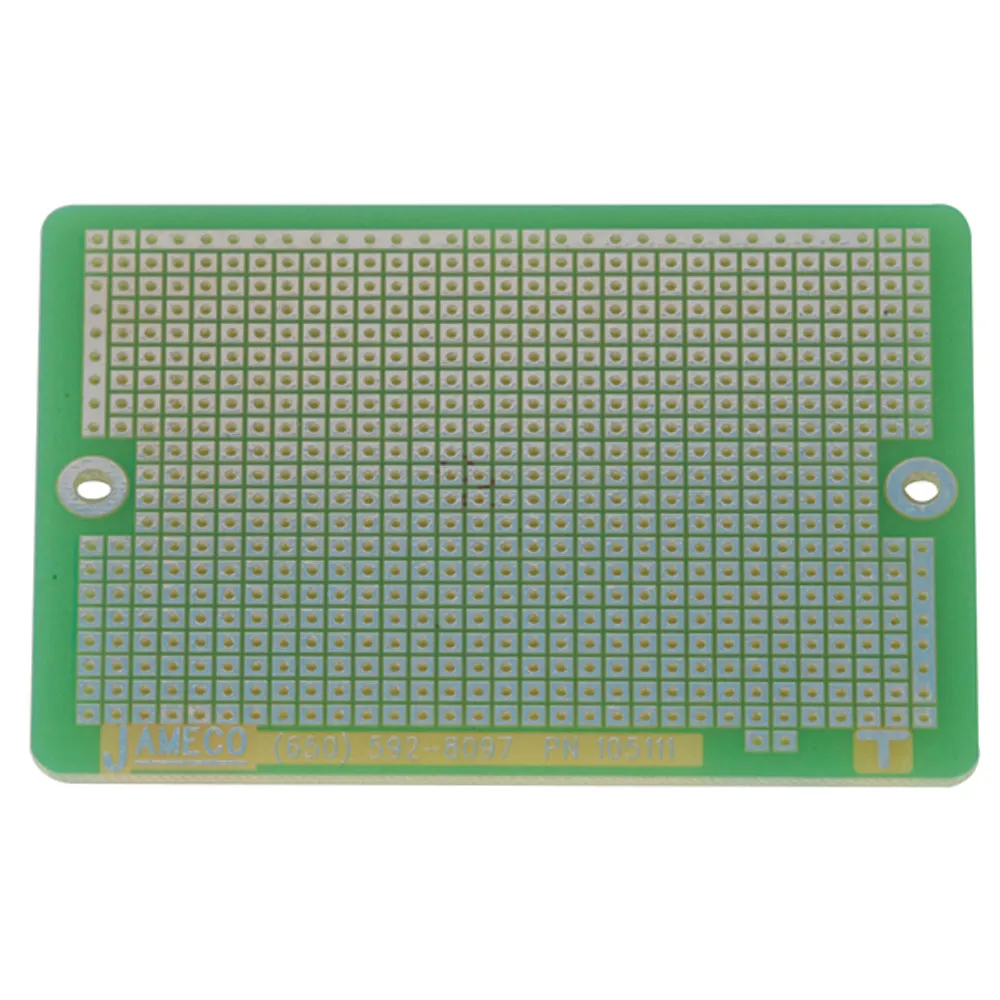

General-Purpose Prototyping Board

Prototyping boards with punched holes are convenient, economical tools for assembling circuit components as well as cost-effective alternatives to custom designs.

Features:

  • Board Thickness: 0.062"
  • Hole Spacing: 0.10"
  • Pad size: 0.08"
  • PCB Material: Epoxy Glass
  • Size (W" x L"): 2.40 x 3.40
  • Circuit Pattern: Power/Ground perimeter bus with pad per hole
  • Hole Pads: Single-sided
  • Number of Holes x Diagonal: 637 x .038"
  • Power/Gound Buses: 4
  • Number of Mounting Holes x Diagonal: 2 x 0.140"
  • Weight: 0.03 lbs. (0.48 oz.)
  • Fits Enclosure: 11870

Product Identification

Product Type:Protoboard

Dimensions & Appearance

Width:2.4 in.
Length:3.4 in.
Mounting Hole:0.14 in. (2)

Features

Sides:Single
Power / Ground Busses:4
Hole Size:0.038 in.
Pitch:0.1 in., 2.54 mm
Circuit Pattern:Power/Ground Perimeter Bus w/ Pad Per Hole
Thickness:0.0625 in.
Plating:Epoxy Glass
No. Of Holes:637
,
