PR1590BB Prototyping Board

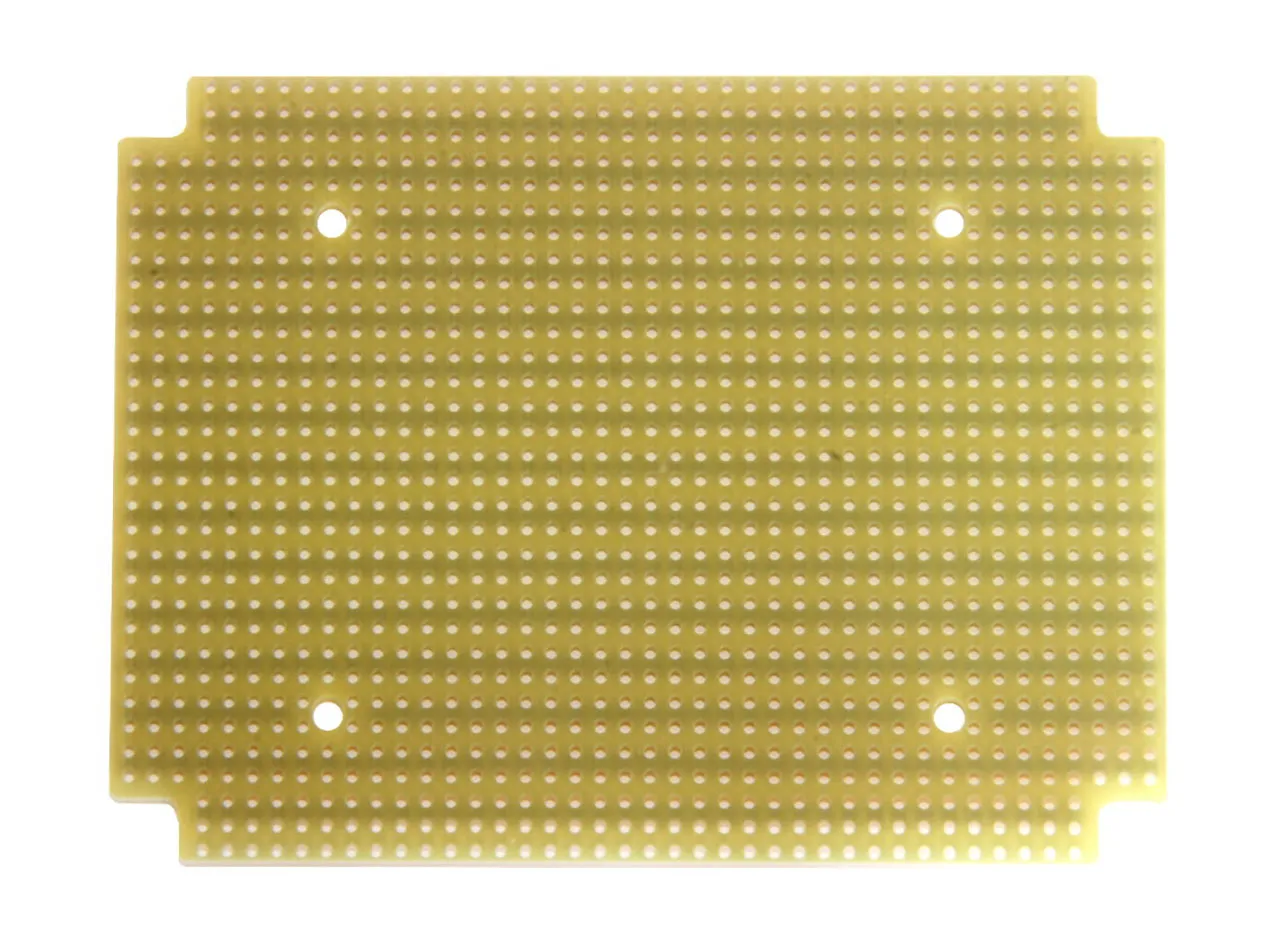

The PR1590BB is a prototyping circuit board (PCB) designed to fit the Hammond 1590BB die-cast aluminum enclosure. It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1590BB enclosure.

Features

• Single-sided high-quality FR4 glass-epoxy circuit board
• Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible
• 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes
• PCB Size 3.20 x 4.25 in (81.3 x 108.0 mm)
