PR1553DBAT Prototyping Board

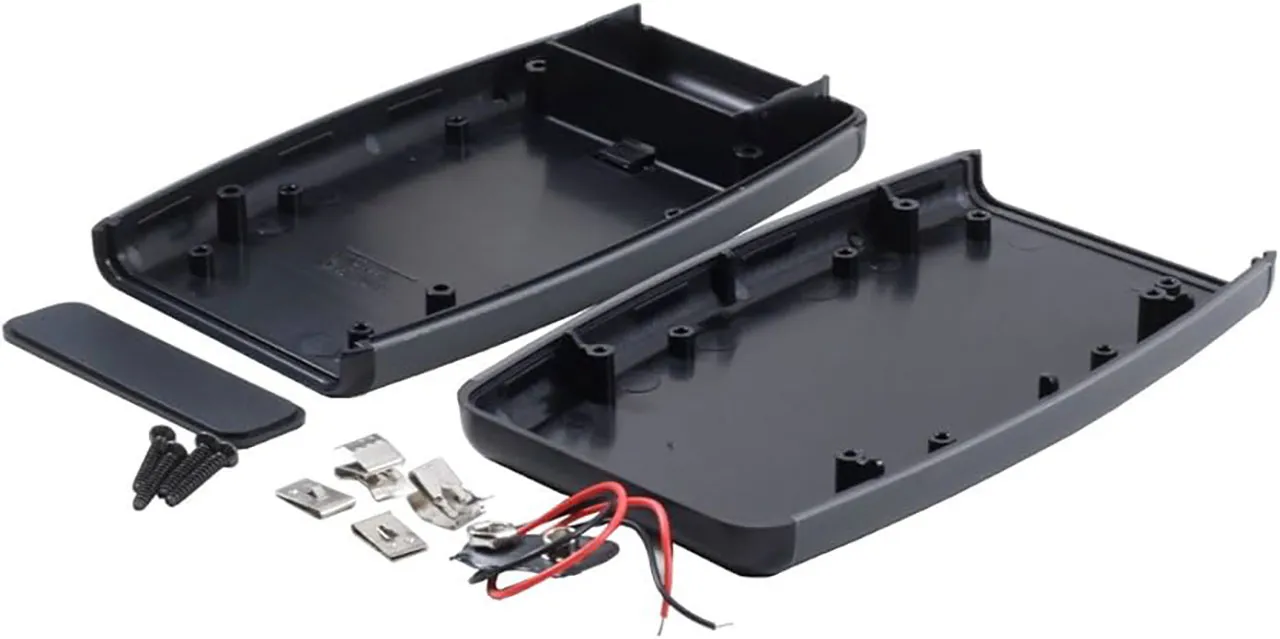

The PR1553DBAT is a prototyping circuit board (PCB) designed to fit the Hammond 1553DxxBAT hand-held plastic enclosure (with battery compartment). It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1553DxxBAT enclosure.

Features

• Single-sided high-quality FR4 glass-epoxy circuit board
• Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible
• 0.042" holes are drilled on 0.1" (2.54mm) centers.6 mounting holes. Screws provided
• PCB Size 2.90 x 5.47 in (73.7 x 138.9 mm)
