Protoboard - 6-Hole Segmented Stripboard

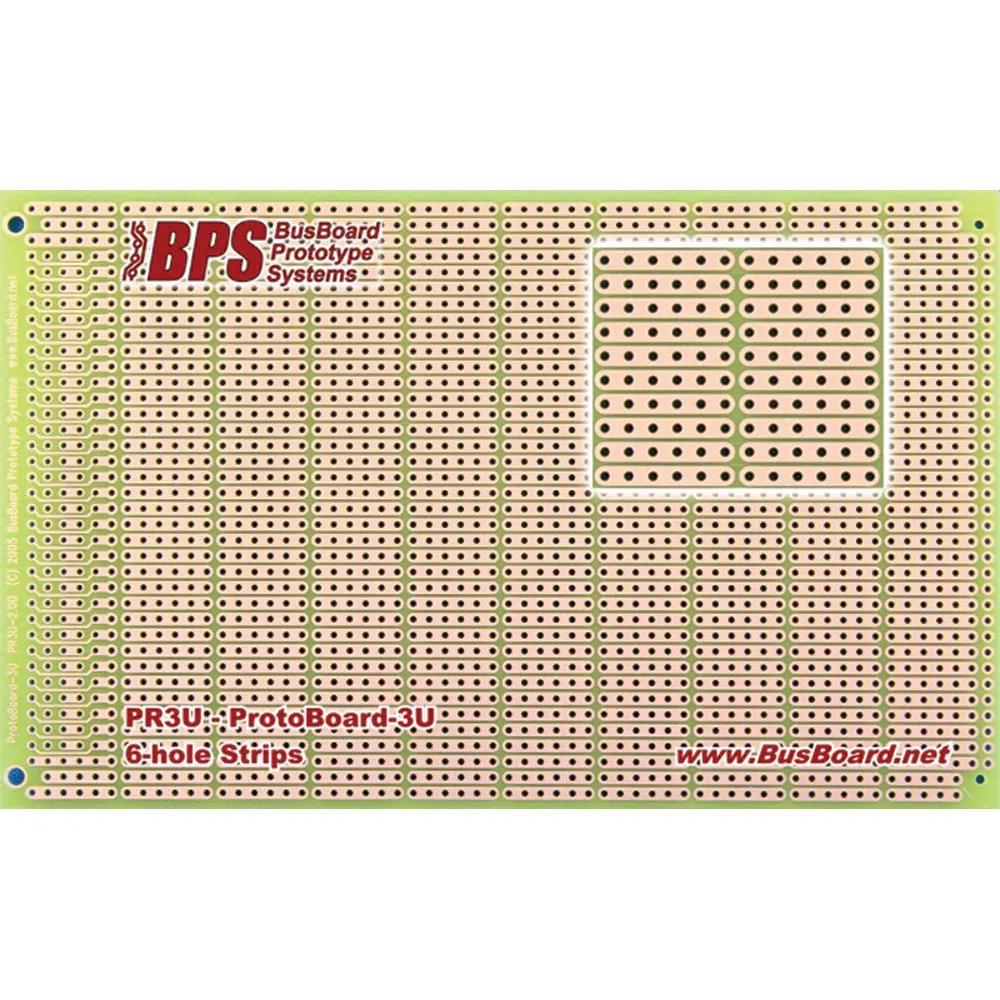

The ProtoBoard-6H-3U prototyping circuit board has a stripboard pattern that is pre-cut with 6 holes per segment. The 6-hole ProtoBoard pattern is good for integrated circuit use an it allows multiple components to be connected to each circuit junction. It is good for analog and digital use. It's a single-sided board with holes on 0.1" centers.

The PCB accepts a 96 pin DIN-41612 VME connector (Jameco P/N: 859430 for backplane or board-to-board applications. Holes for ejector latches are provided.

Features

• Convenient 6-hole ProtoBoard pattern provides an easy way to connect parts to IC's
• Single-sided high-quality FR4 glass-epoxy circuit board
• 1oz/ft² copper with an anti-tarnish coating for easy soldering.Lead free and RoHS compatible
• 38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers
• Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm).
• Off-the-shelf 3U size enclosures are available
