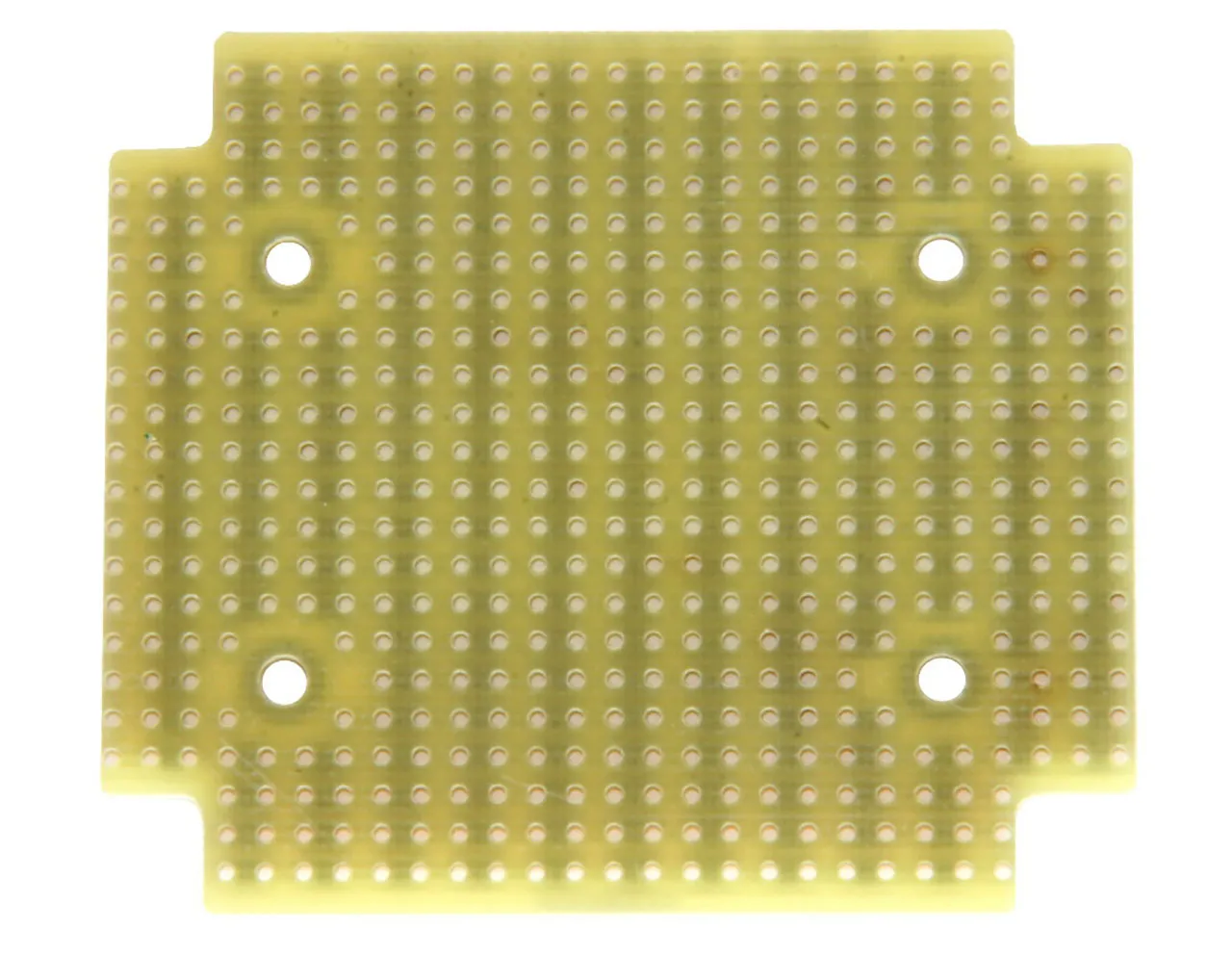

PR1593Q Prototyping Circuit Board

The PR1593Q is a prototyping circuit board (PCB) designed to fit the Hammond 1553P hand-held plastic enclosure (with battery compartment). It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1593Q enclosure.

Features

• Single-sided high-quality FR4 glass-epoxy circuit board.
• Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes. Screws provided.
• PCB Size 2.43 x 2.72 in (61.7 x 69.1 mm)
