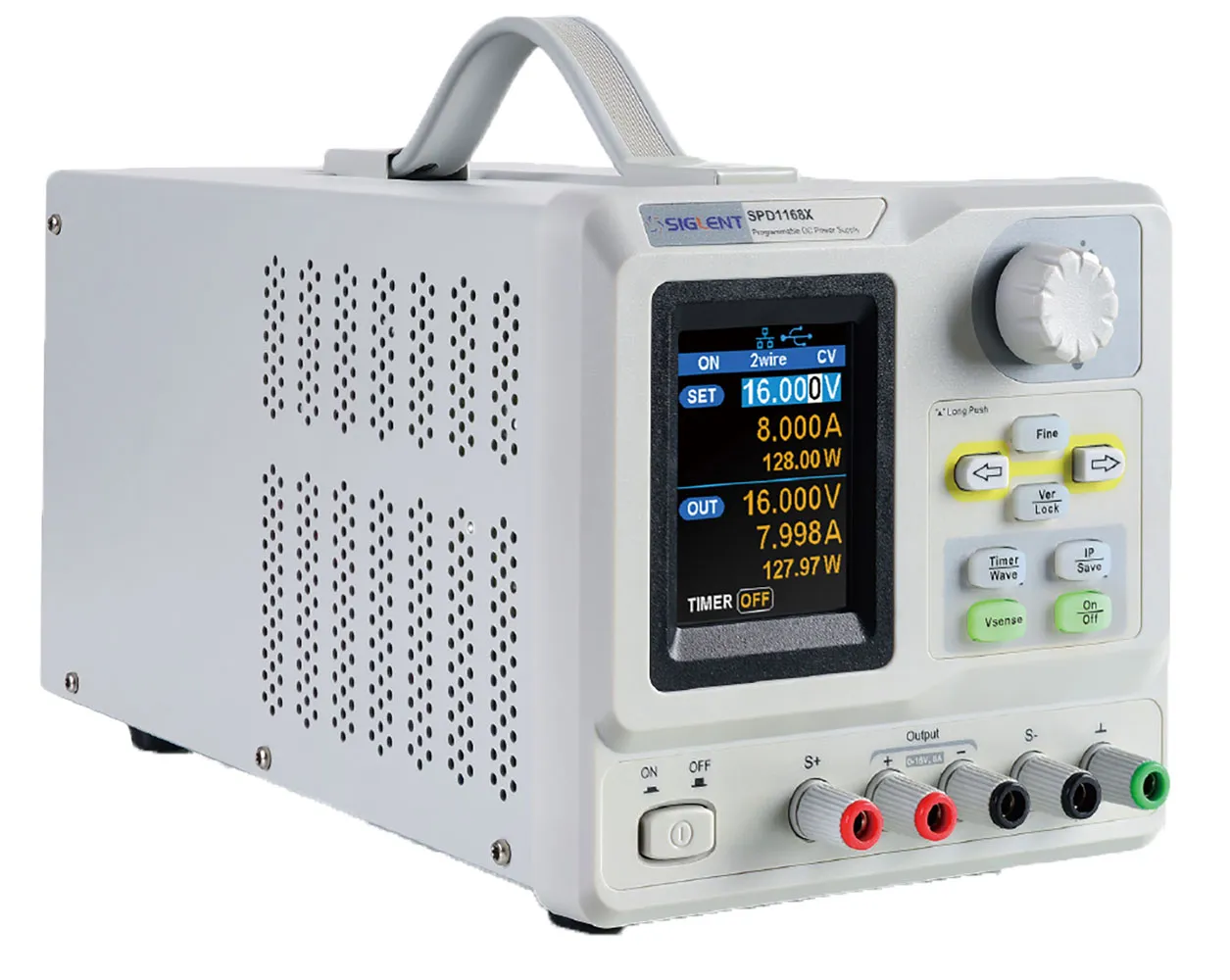

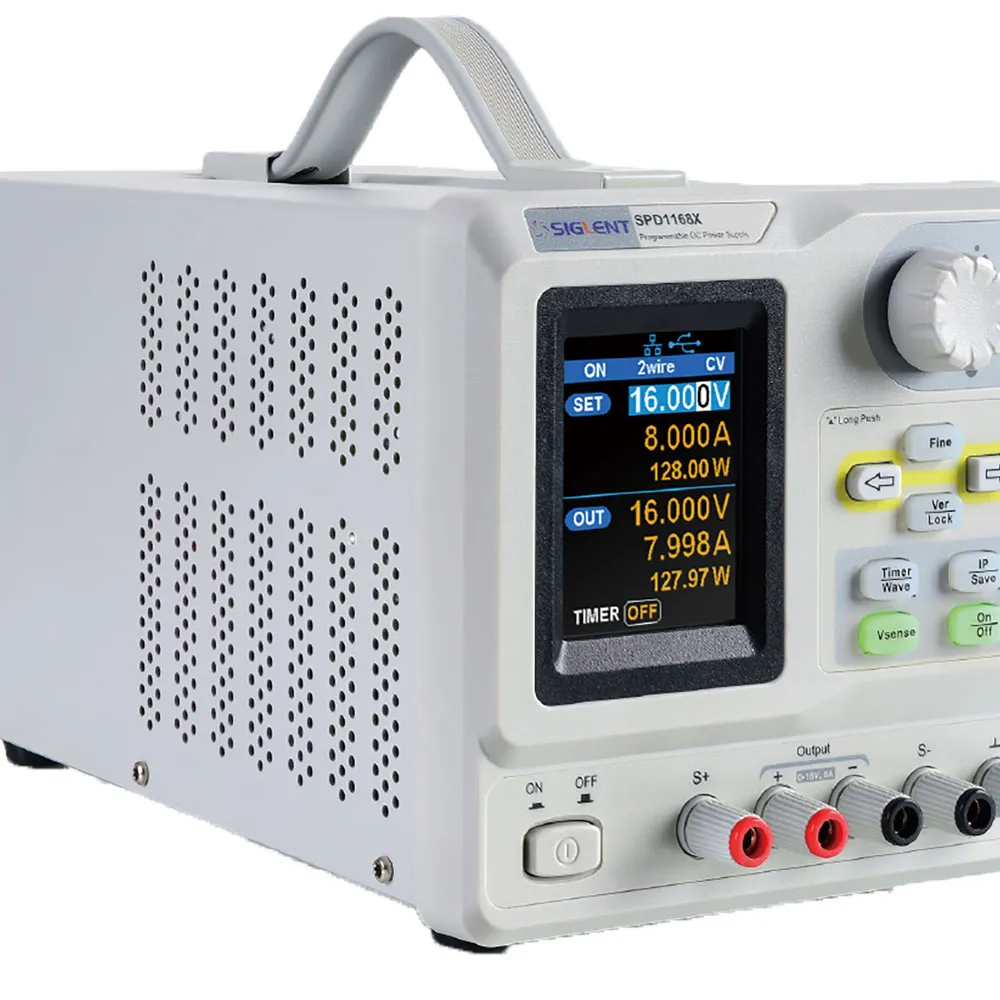

Programmable DC Power Supply 128W 16V 8A

Features

• Single path high-precision programmable voltage output
• Stable, reliable, Low ripple and noise: ≤350 uVrms/3 mVpp; < 2 mArms
• Fast transient response time: <50 µs
• 5 digit Voltage, 4 digit Current Display, Minimum Resolution: 1 mV/1 mA
• Supports front panel timing output functions
• 2.8" true color TFT- LCD 240x320 display
• 2 types of output modes: Two-wire output mode, 4-wire compensation output mode, Maximum compensation voltage 1V.
• 100/120/220/230 V compatible design to meet the needs of different power grids
• Intelligent temperature-controlled fan reduces noise
• Clear graphical interface, with the waveform display function
• Internal 5 groups of system parameter save/recall
• Includes PC software: Easypower, supports SCPI, LabView driver
