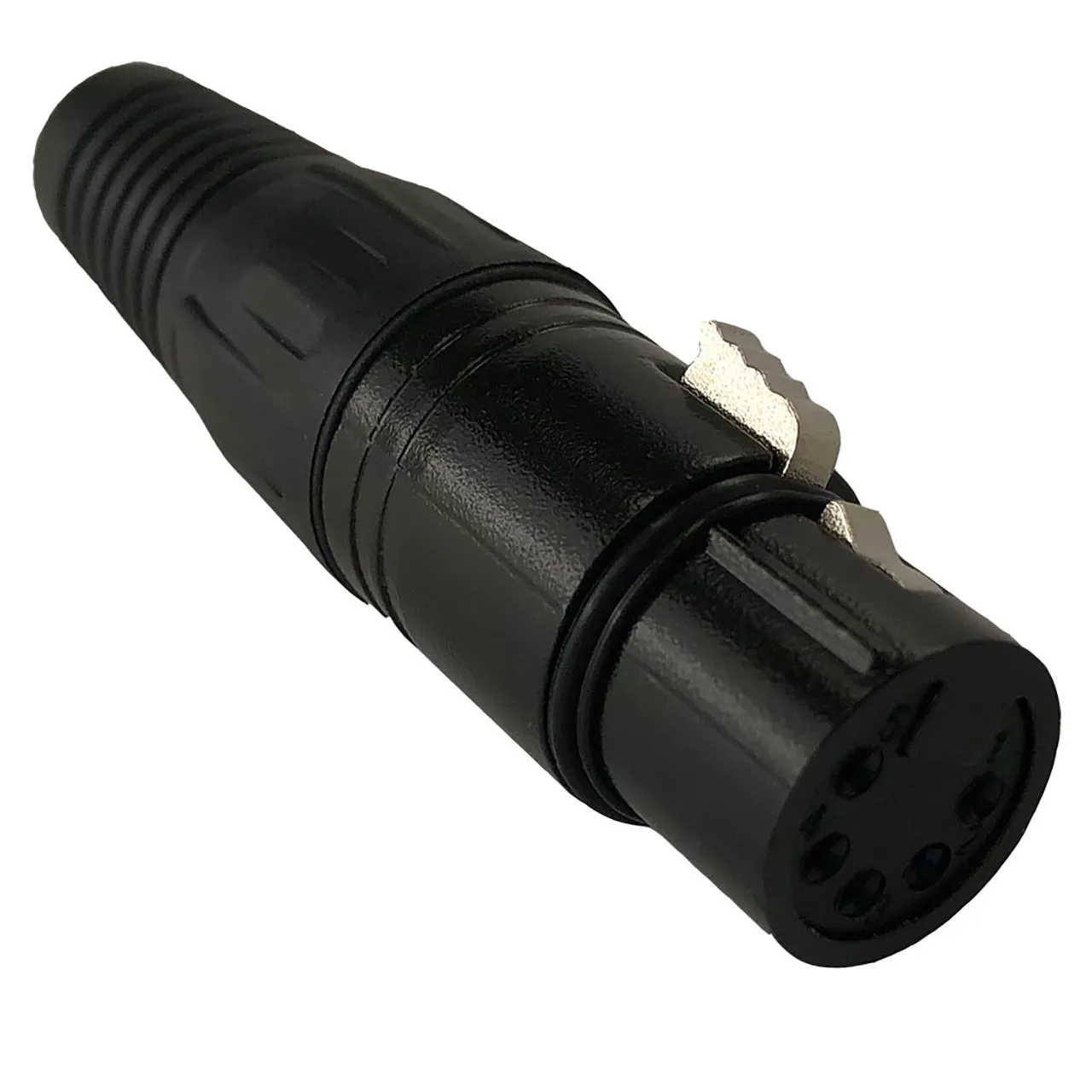

Professional 5-Pin XLR Connector Female Gold Pins

Io Audio Technologies

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$6.490

In Stock: 0

Quantity	Unit Price	You Save	Discount
3+	$6.490	-	-
10+	$5.950	0.54	8.32%
50+	$5.490	1.00	15.41%

Features

Capacitance Between Contacts: < 2pF
Capacitance Between Contacts and Shield: < 2pF
Contact Resistance: <7mΩ
Insulation Resistance: ≥ 1000MΩ
Dialectric Strength: 1500V @ 60s
Current Rating: 15A/125V
Number of Pins/Poles: 5
Gender: Female
Contact Material: Phosphor Bronze
Contact Platng: Gold
Shell Material: Zinc Alloy
Shell Color: Black
Wiring: Solder Contacts
Flammability Rating: UL94V-0

Overview

5 pin, gold plated XLR style connectors perfect for use in audio cables and also in DMX cables.

The IO-XLR5-M-BK and IO-XLR5-F-BK connectors feature durable die cast zinc shells with built in latch locks which provide a reliable connection when mated with the opposite gender. They also feature a sturdy plastic insert that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support from excessive bending. The silver plated contacts ensure a great signal every time.

5 pin XLR connectors are a perfect solution for applications requiring a rugged and dependable locking connection. Because the housing construction is threaded, the connectors require no tools for assembly, making them ideal for onsite termination and allow the user to be able to troubleshoot connection issues quickly. This connector is perfect for use in balanced audio, DMX, low voltage power, and control applications where the termination method is solder cups.
