Pro 8 Channel Logic Analyzer

You must download the software to use this product.

Specifications

Digital
  • USB 3.0
  • Inputs (Digital/Analog/both): 8 Multi-use
  • Digital Sample Rate: 500 MS/s (max)
  • Fastest Digital Signal: 100 MHz
  • Sample Depth (typ.): 10+ Billion
  • Supported Logic Levels: 1.2V - 5.5V
  • Directly works with RS-232, 422/3, 485
Analog
  • Analog Sample Rate: 50 MS/s (max)
  • Bandwidth (-3dB): 5 MHz
  • Number of bits: 12 bits
  • Input Voltage Range: -10 V to 10 V
  • Signal-to-noise and distortion the ratio: 44 dB or better
  • Size: 2.1" x 2.1" x 0.46"
  • Weight: 2.1 oz

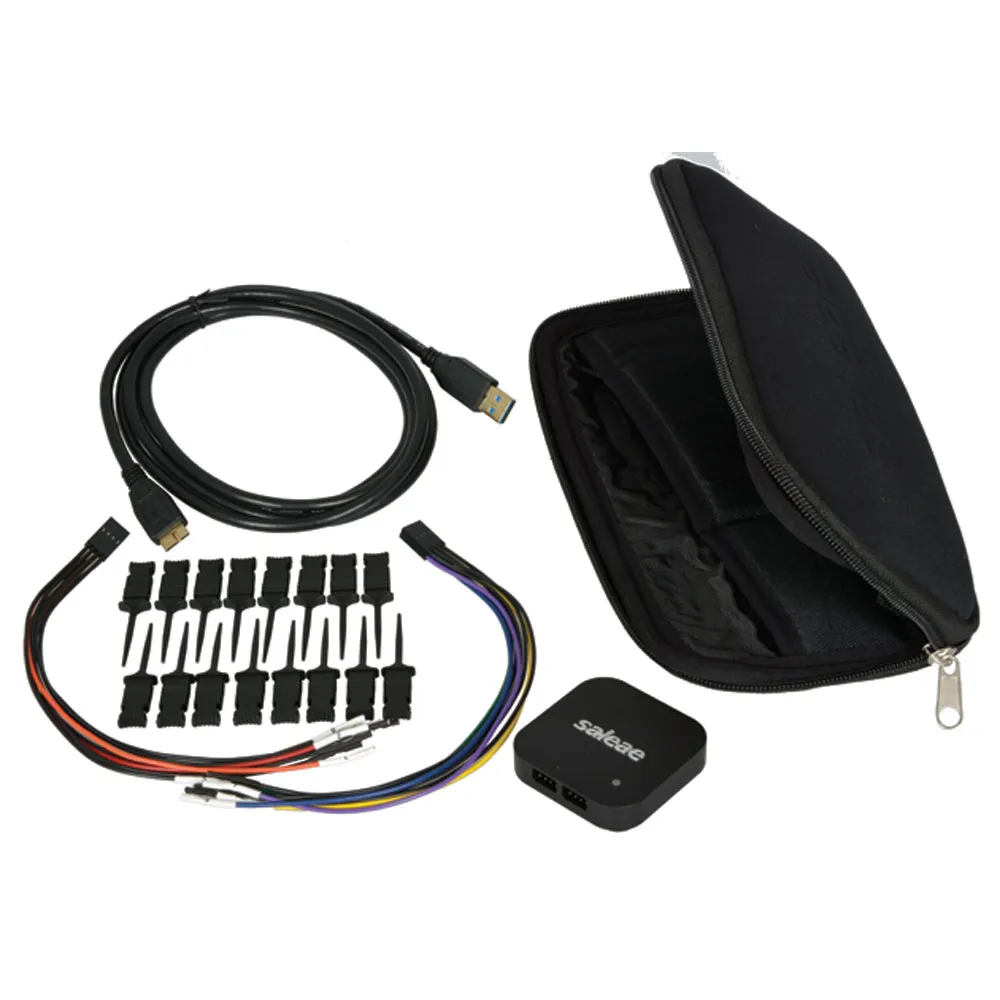

Includes

  • 2x Test lead set
  • 2x 8-pack test clips
  • 1x USB cable
  • 1x Carry case

Downloads & Resources

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Height:0.59 in.
Depth:3.60 in.
Width:3.60 in.
,
