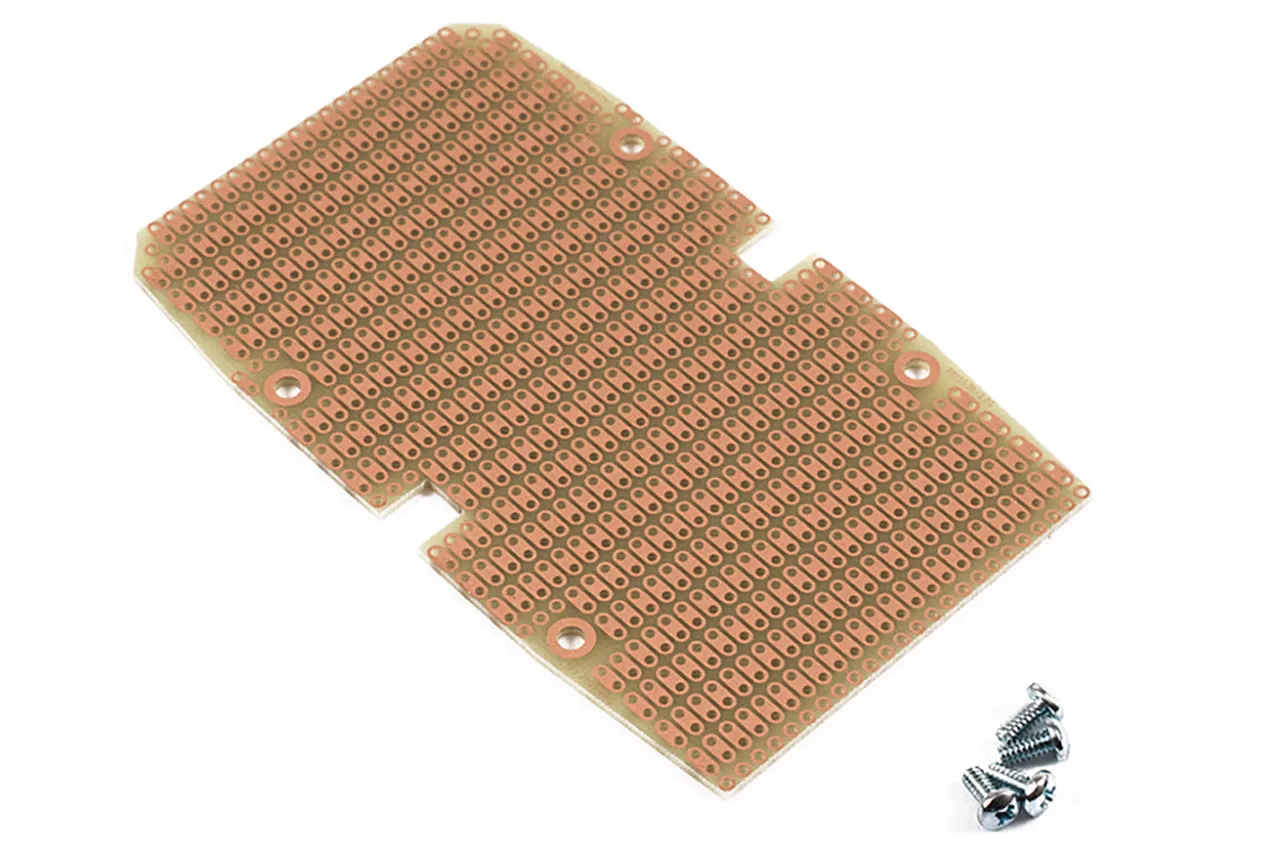

Printed Circuit Board Designed to Fit 1553B and 1553C Enclosures

Features

  • Designed for 1553 sizes "B" and "C"
  • High quality FR4 glass epoxy board
  • Mounting screws included
  • Lead free etched copper PCB with a flux coating for easy soldering
  • 0.042" holes drilled on 0.1" centers
  • For more information, see the BusBoard Prototype Systems (BPS) website at www.busboard.com
  • Note: not compatible with battery compartment versions

Overview

Printed Circuit Board Designed to Fit 1553B Enclosures

Product Identification

Product Type:Protoboard

Dimensions & Appearance

Mounting Hole:0.125 in. (4)
Width:2.1 in.
Length:4.3 in.

Features

Power / Ground Busses:0
Sides:Double
Pitch:0.1 in., 2.54 mm
Hole Size:0.042 in.
Circuit Pattern:Two-hole pattern
Thickness:0.0625 in.
Plating:Epoxy Glass
,
