Pressure Transducer 24 VDC / 4-20 mA, Terminal Strip, ±1%

Features

• Accuracy: ±1%

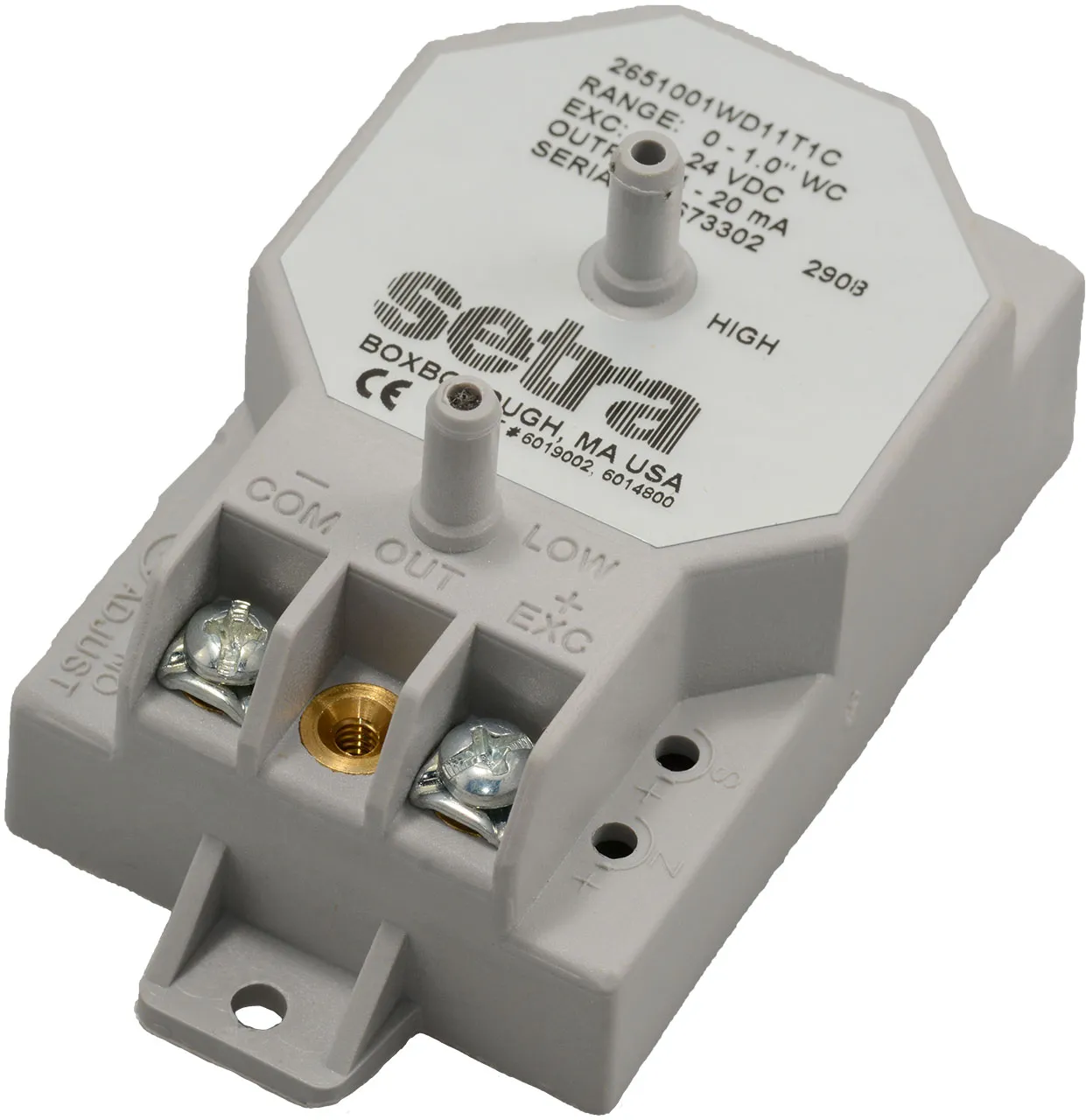

• Description: Setra Model 265, 0-1" WC, 24 VDC / 4-20 mA, Terminal Strip, ±1%
• Direction: Uni-Directional
• Measurement: Inches of Water Column
• Mount: Wall
• Output: 4-20 mA
• Range: 0-1" WC
• Short Description: AIR DIFF PRESS XMTR, FIXED, &plumn;1%, 0-1.00" WC, 4-20 MA, NO LCD, WALL
• Type: Fixed

Overview

The Model 265 from Setra is a more affordable option that provides a good price to performance ratio and satisfies the needs of all common HVAC applications. The 265 is a low differential pressure transducer that uses a dead-ended capacitive sensing element to achieve great precision and long-term stability with little amplification. It offers pressure ranges from 0.25 W.C. to 100 W.C. and delivers 1% FS accuracy with choices for 0.25% and 0.5% accuracy. The 265 is easy to install and secure in any application thanks to its tiny footprint, AC power option, and optional conduit cover.
