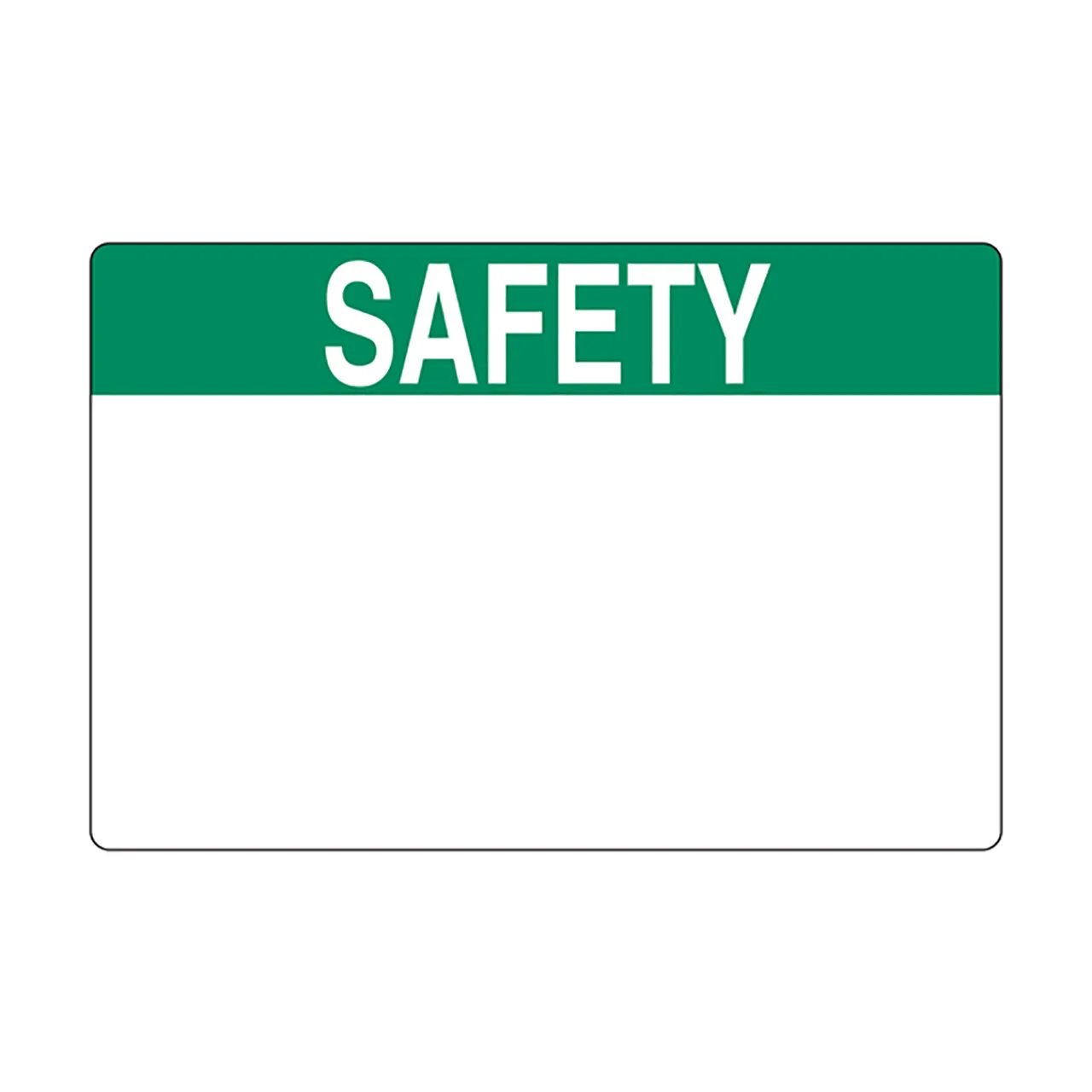

Pre-Printed Header Label, SAFETY, 3.0" x 2.0", PET, Green, 250/roll

Features

• Pre-printed solar labels are made with UV-stable inks and materials for durability and weather resistance. Polyester is resistant to chemicals and solvents and will remain legible in dirty environments. High abrasion and scuff resistance for high performance labeling. Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
• Product Type: Labels for Thermal Transfer Printers

Technical Specifications

• Material: Type 336/926, Polyester, UV stabilized, clear polyester laminate (336/926)
• Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color: Green (GN)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color of Print: White (WH)
• Focused Markets and Industries: Solar Energy Sector
• Height H (Imperial): 2.0"
• Height H (Metric): 50.8 mm
• Horizontal Repeat HR (imperial): 4.0"
• Horizontal Repeat HR (metric): 101.6 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 1
• Labels per Row: 1
• Print Method: thermal transfer print
• Printable Area Height (imperial): 2.0"
• Printable Area Height (metric): 50.8 mm
• Thickness T (Metric): 64.0 µm
• Vertical Repeat VR (imperial): 2.125"
• Vertical Repeat VR (metric): 155.57 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width of Liner WL (imperial): 3.2"
• Width of Liner WL (metric): 81.28 mm
• Width W (Imperial): 3.0"
• Width W (Metric): 76.2 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH16736 [RU]; MH66956 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306351290

Overview

HellermannTyton Pre-Printed Solar Installation Labels are designed to meet the requirements of the National Electrical Code and the International Fire Code as well as being acceptable to the Authority Having Jurisdiction (AHJ). Labels are made with durable UV stable materials and adhesives that are designed to stick to both baked enamel and powder coat surfaces. Where applicable, labels are made using reflective materials for first responder safety. Some pre-printed labels are printable using a thermal transfer printer when variable voltage or series data must be printed and displayed.
