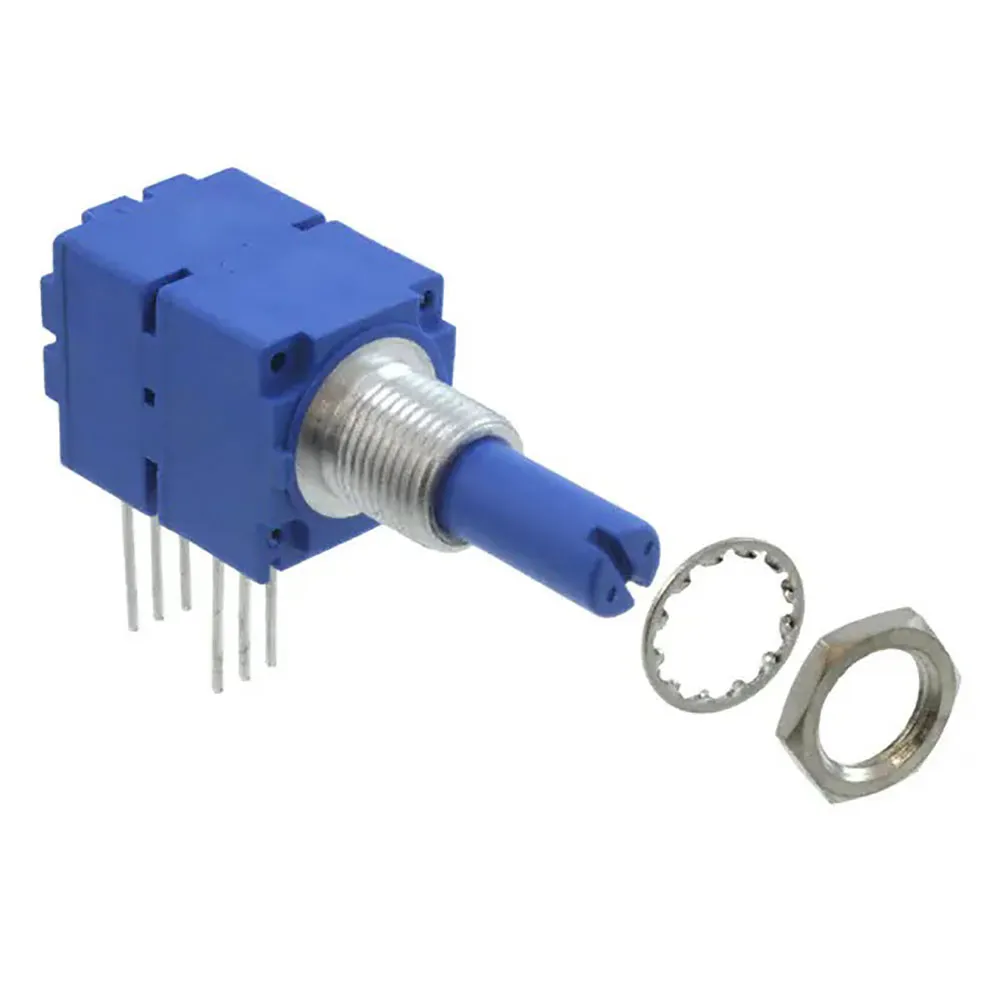

Precision Potentiometer 5/8" Square 50K Ohms 20% 1/2W 2 Gang Linear PC Pins Panel Mount 1-Turn Side Adjust
Specifications
- Series: 91
- Resistance: 50K Ohms (50,000; 503)
- Power (Watts): 0.5 W, 1/2 W, 500 mW
- Tolerance: ±20%
- Taper: Linear
- Number of Turns: 1
- Temperature Coefficient: ±1000 ppm/°C
- Rotation: 280°
- Resistive Material: Conductive Plastic
- Termination Style: PC Pins
- Actuator Type: Slotted
- Actuator Length: 0.875" (22.23 mm)
- Actuator Diameter: 0.250" (6.35 mm)
- Bushing Thread: 3/8-32
- Mounting Type: Panel Mount
- Size - Body: Rectangular - 0.687" Dia x 0.625" Face x 0.687"H (17.45 mm x 15.88 mm x 17.45 mm)
- Base Number: 91A2A
Product Identification
Type:Rotary Metal
Product Type:Precision
Manufacturer Series:91
Dimensions & Appearance
Height:17.45mm
Shaft Diameter:6.35mm
Shaft Length:0.875 in., 22.23 mm
Mounting:Panel
Body Diameter:0.625 in., 15.88 mm
Operating conditions
Maximum Operating Temperature:125°C
Minimum Operating Temperature:-40°C
Features
Number of Turns:1
Taper:Linear
Ganging Number:2
Resistive Element Material:Conductive Plastic
Resistance (Ohm):50000
Tolerance:20%
Temperature Coefficient:1000 ppm/°C
Power Rating:0.5 W
Termination Style:PC Pins, Panel Mount
Resistance:50 KOhm
Actuator Type:Slotted Shaft
