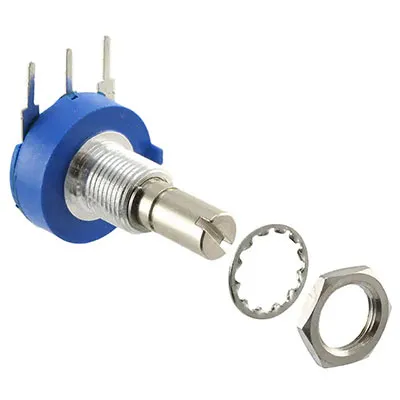

Precision Potentiometer 3/4" Round 5K Ohms 10% 2W Linear PC Pins Panel Mount 1-Turn Side Adjust

Specifications

  • Series: 3852
  • Resistance: 5K Ohms (5,000; 502)
  • Power (Watts): 2 W
  • Tolerance: ±10%
  • Taper: Linear
  • Number of Turns: 1
  • Temperature Coefficient: ±150 ppm/°C
  • Rotation: 280°
  • Resistive Material: Cermet
  • Termination Style: PC Pins
  • Actuator Type: Slotted
  • Actuator Length: 0.875" (22.23 mm)
  • Actuator Diameter: 0.250" (6.35 mm)
  • Bushing Thread: 3/8-32
  • Mounting Type: Panel Mount
  • Size - Body: Round - 0.750" Dia x 0.250" H (19.05mm x 6.35mm)
  • Base Number: 3852A

Product Identification

Type:Rotary Metal
Manufacturer Series:3852A
Product Type:Precision

Dimensions & Appearance

Mounting:Panel
Height:41.28mm
Shaft Diameter:6.35mm
Shaft Length:0.875 in., 22.23 mm
Body Diameter:0.750 in., 19.05 mm

Features

Ganging Number:1
Number of Turns:1
Taper:Linear
Resistive Element Material:Cermet
Resistance (Ohm):5000
Tolerance:10%
Temperature Coefficient:150 ppm/°C
Resistance:5 KOhm
Termination Style:PC Pins, Panel Mount
Power Rating:2 W
Actuator Type:Slotted Shaft
,
