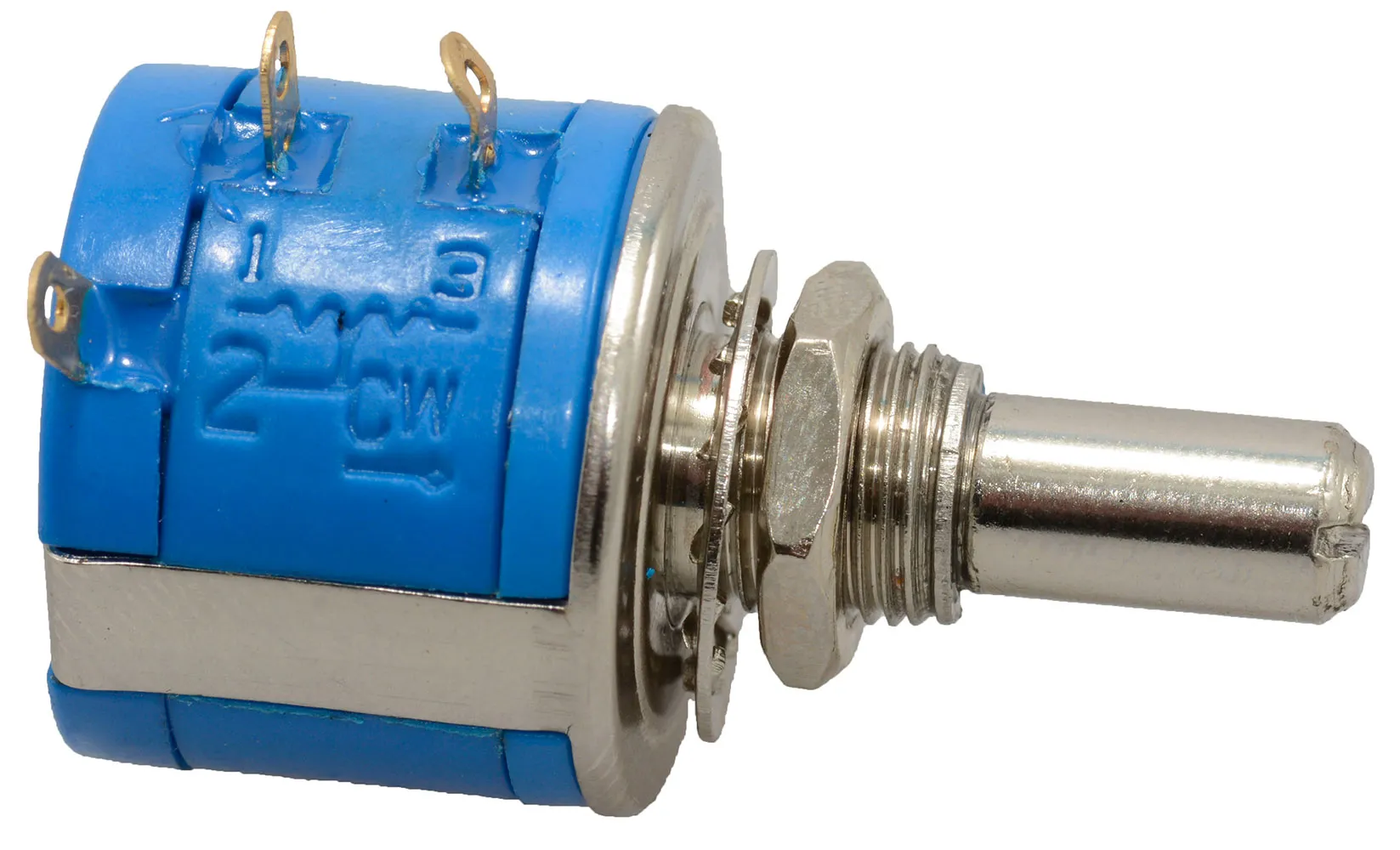

Precision Potentiometer 1K Ohm 2W Linear Wirewound 10-Turn Panel Mount Solder Lug

Specifications

  • Series: 3540
  • Resistance (Ohms): 1 K (1,000 /102)
  • Tolerance: ±5%
  • Power (Watts): 2 W
  • Built in Switch: None
  • Number of Turns: 10
  • Taper: Linear
  • Number of Gangs: 1
  • Adjustment Type: User Defined
  • Temperature Coefficient: ±50 ppm/°C
  • Rotation: 3600°
  • Resistive Material: Wirewound
  • Termination Style: Solder Lug
  • Actuator Type: Slotted
  • Actuator Length: 0.812" (20.63 mm)
  • Actuator Diameter: 0.2497" (6.34 mm)
  • Bushing Thread: 3/8-32
  • Mounting Type: Panel Mount
  • Size - Body: Round - 0.875" Dia x 0.750" H (22.23 mm x 19.05 mm)
  • Base Number: 3540S

Product Identification

Type:Rotary Metal
Manufacturer Series:3540S
Product Type:Precision

Dimensions & Appearance

Body Diameter:0.875 in., 22.23 mm
Shaft Length:0.812 in., 20.62 mm

Features

Ganging Number:1
Taper:Linear
Resistance:1 KOhm
Number of Turns:10
Resistive Element Material:Wirewound
Tolerance:5%
Resistance (Ohm):1000
Termination Style:Solder Eyelet, Panel Mount
Power Rating:2 W
Actuator Type:Slotted Shaft
,
