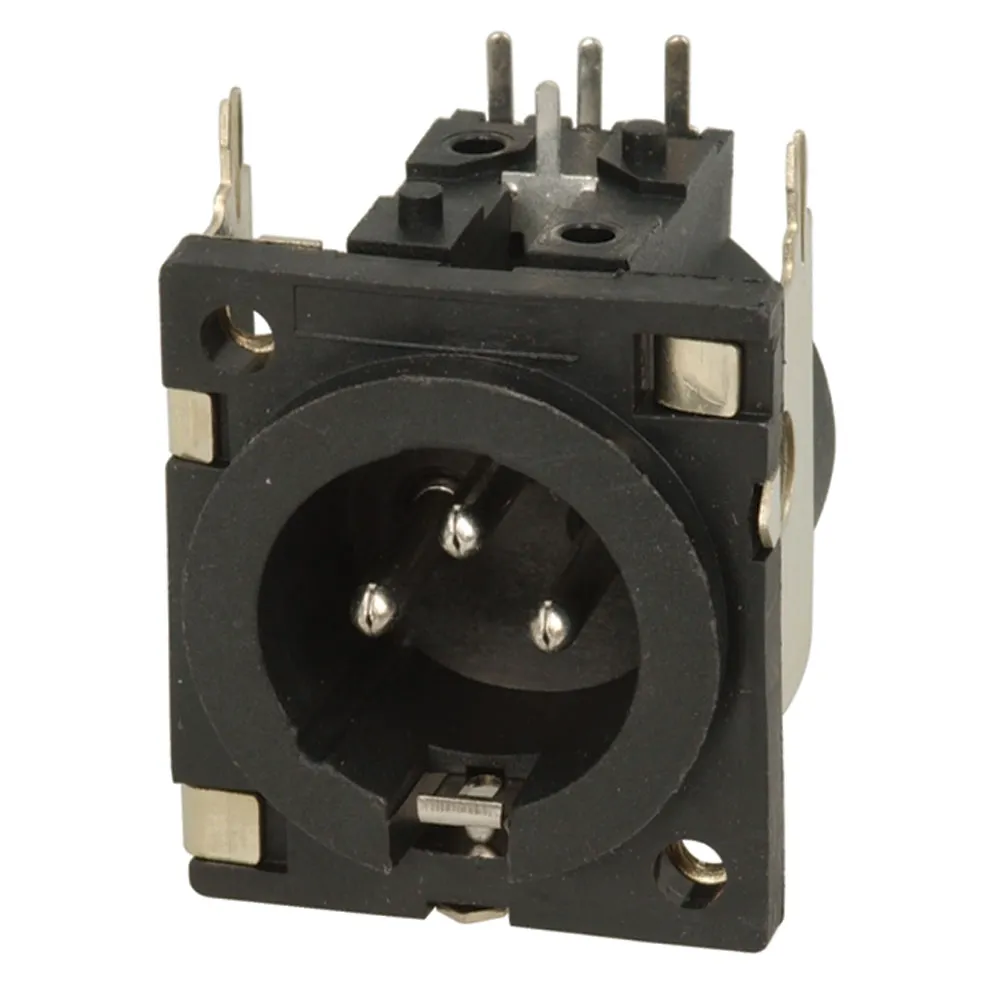

PQG® XLR Receptacle - 3 Pin PC Mount

Q-G® 3 pin/contact PC receptacles offer economy, reliability and performance in amplifiers, audio mixing boards, and other outboard gear. Choose receptacles with just the right combination of standard and optional bonus features to tailor the PQG series to your exact needs.

Features

• XLR receptacle
• Number of Positions: 3
• UL 94V-0 plastic materials.
• Circuit #1 "makes" first and "breaks" last during connect/disconnect.
• Positive mechanica polarization.
• Panel Mount, Through Hole, Minimum PC board space required.
• Integral PC board locating posts.
• Mating/unmating cycles in excess of 10,000.
• Mates with Switchcraft Q-G and other compatible connectors (such as 3-pin female XLR cord plug, P/N: 319003)
