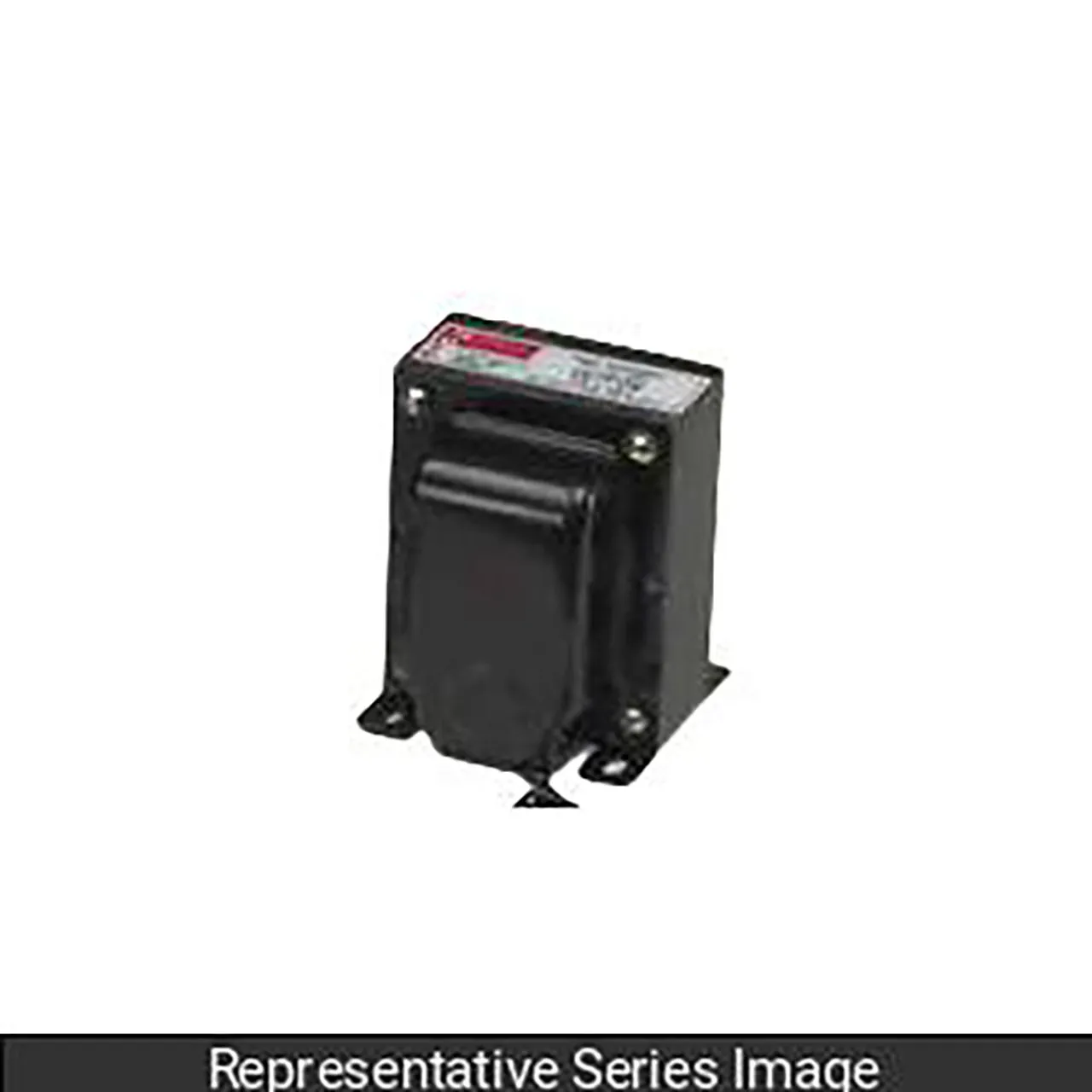

Power Transformer Low Voltage, Enclosed Chassis Mount, 30VA 115 5Vct

Features

  • Material: N/A
  • Standards: csa, ul
  • Power Rating (VA): 30
  • Primary VAC: 115 VAC, 60 Hz.
  • Secondary (RMS) VAC: 5 C.T.
  • Secondary (RMS) Amps: 6
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Power transformer, low voltage, enclosed chassis mount, 30VA 115 5VCT.

Resources & Downloads

    Product Identification

    Manufacturer Series:167

    Features

    Primary Frequency:60 Hz
    Primary Side Voltage:115 VAC
    Secondary Side Voltage:5 C.T.
    Secondary Side Current:6 A
    Power Rating:30 VA
    ,
