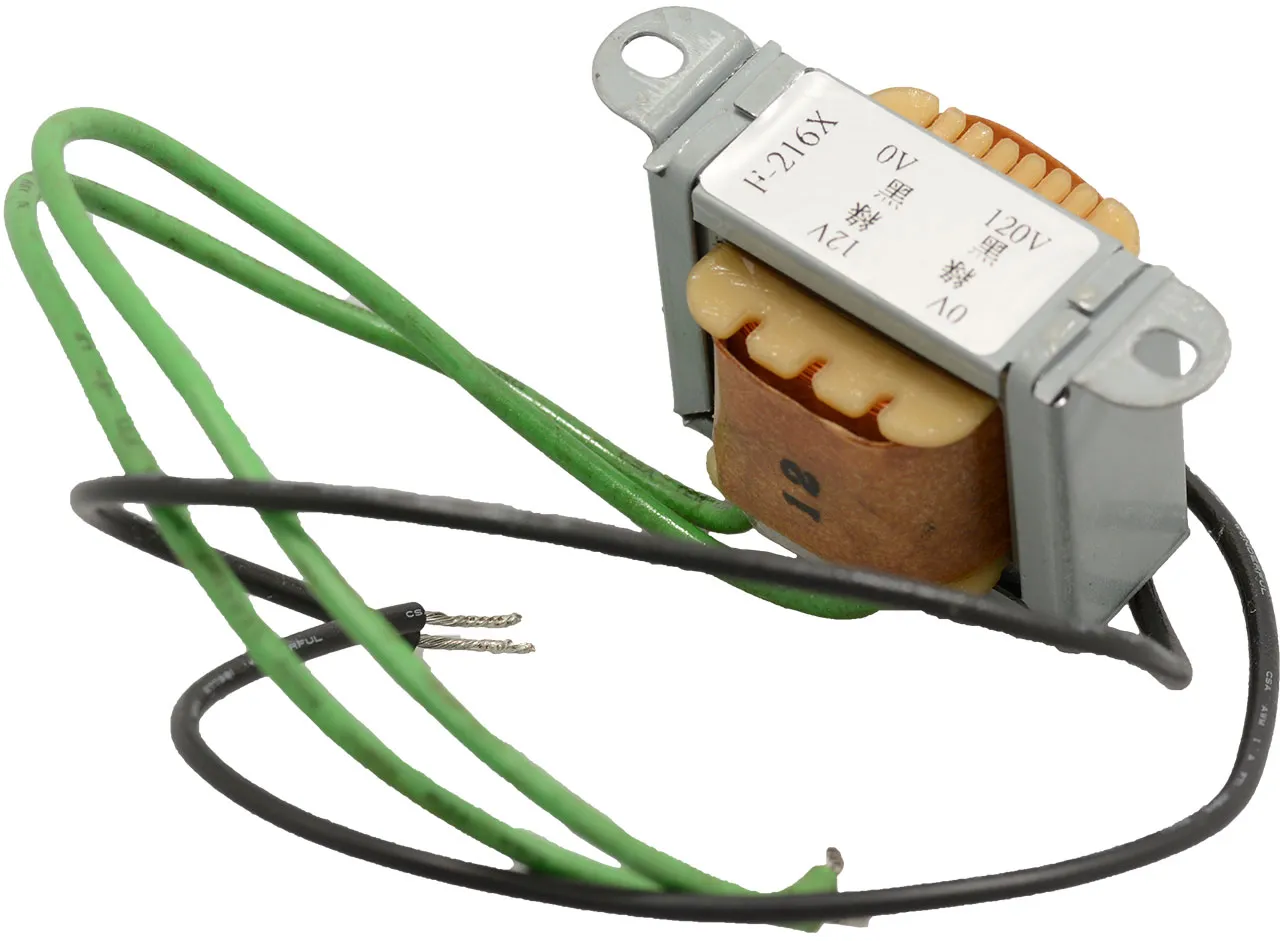

Power Transformer Laminated 115VAC Primary 12VAC Secondary 350mA 4.2VA Chassis Mount

Features

  • Type: Laminated Core
  • Voltage - Primary: 115 V
  • Voltage - Secondary (Full Load): 12 V
  • Current - Output (Max): 350 mA
  • Primary Winding(s): Single
  • Secondary Winding(s): Single
  • Center Tap: No
  • Power - Max: 4.2 VA
  • Mounting Type: Chassis Mount
  • Termination Style: Wire Leads
  • Size / Dimension: 60.32 mm L x 34.93 mm W
  • Height - Seated (Max): 34.93 mm
  • Voltage - Isolation: 1500 Vrms

Product Identification

Product Type:Power Transformer

Dimensions & Appearance

Mounting Style:Chassis

Output

Number of Outputs:1

Features

Secondary Winding(s):Single
Primary Winding(s):Single
Primary Frequency:60 Hz
Primary Side Voltage:115 VAC
Secondary Side Current:0.35 A
Secondary Side Voltage:12 V
Termination Style:Wires
Power Rating:4.2 VA
,
