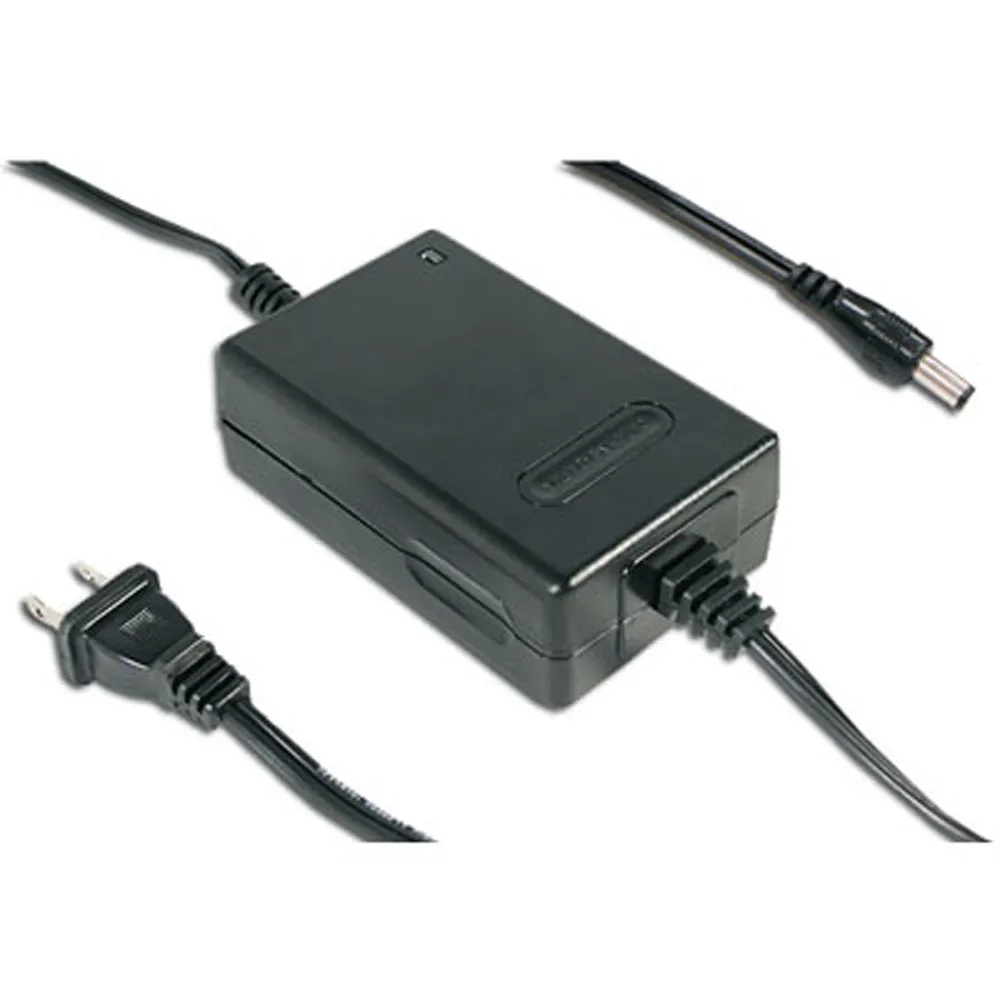

27 WAC-DC Power Adaptor with Charger Function
16.8Volts @ 1.6 Amps
Features:
- Universal AC input / Full range
- With USA type 6FT power cord(2pin)
- Class II power (without earth pin)
- No load power consumption <1.0W
- Constant current and voltage(CC,CV mode)
- Suitable for continue load
- For high surge current equipment
- Protections: Short circuit / Overload / Over voltage / Over temp.
- 2 colors LED indicate for charging status
- Fully enclosed plastic case
- High reliability
- Approvals: UL / CUL / CB / FCC / CE
- 2 years warranty
Product Identification
Additional Feature:For Lead-Acid, For Li-Ion
Product Type:Power Supply with Charger
Manufacturer Series:GC30U
Compliance
Agency Approvals: CB, CUL, EAC, FCC, UL
Dimensions & Appearance
Color:Black
Height:1.40 in.
Width:2.60 in.
Length:4.30 in.
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:50°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.7 A
Output
Output Connector Diameters:2.1mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Range:16 VDC to 17 VDC
Output Voltage:16.8 VDC
Output Current:1.60 A
Features
PFC Function:No
AC Power Cord:NEMA 1-15P
Efficiency:78%
Power Rating:27 W
