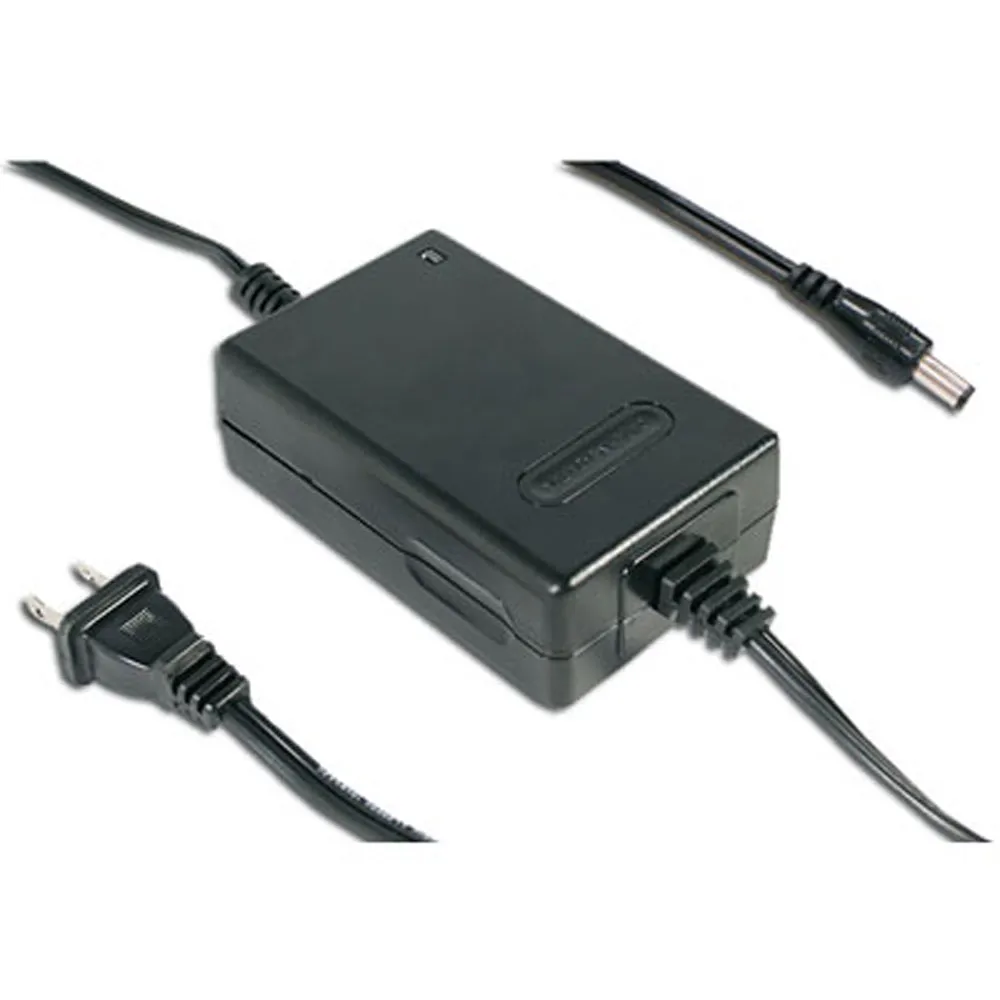

22.38 WAC-DC Power Adaptor with Charger Function


5.6 Volts @ 3.99 Amps

Features:
  • Universal AC input / Full range
  • With USA type 6FT power cord(2pin)
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / CB / FCC / CE
  • 2 years warranty

Product Identification

Additional Feature:For Lead-Acid, For Li-Ion
Product Type:Power Supply with Charger
Manufacturer Series:GC30U

Compliance

Agency Approvals: CB, CUL, EAC, FCC, UL

Dimensions & Appearance

Color:Black
Height:1.40 in.
Width:2.60 in.
Length:4.30 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.7 A

Output

Output Range:5 VDC to 5.8 VDC
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:5.6 VDC
Output Connector Type:Cylindrical Female
Output Current:3.99 A

Features

PFC Function:No
AC Power Cord:NEMA 1-15P
Efficiency:70%
Power Rating:22.38 W
,
