75 W Single Output Power Supply with PFC Function


48 Volts @ 1.6 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3 years warranty

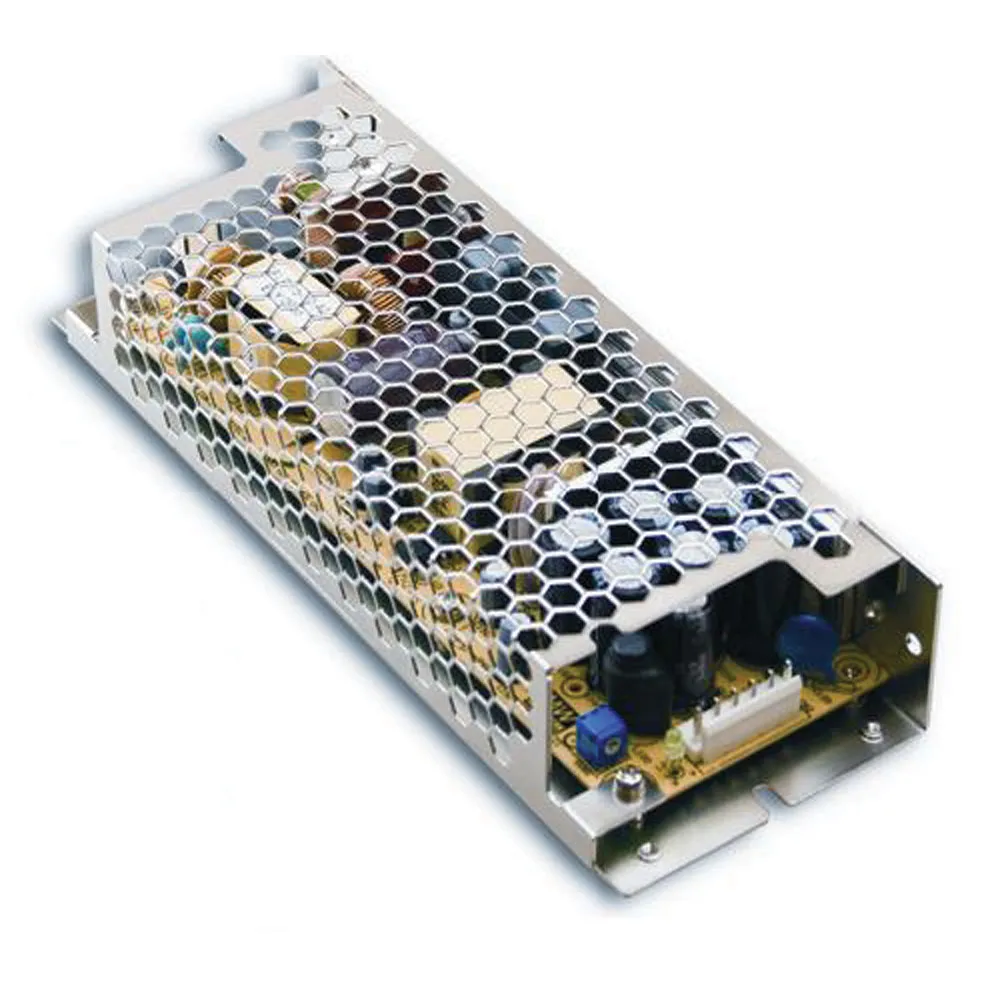

  • Optional L-Bracket and cover (ELP-75-x-C, x=3.3,5,12,15,24,36,48)
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 90%
  • 1U low profile
  • LED indicator for power on
  • No load power consumption<0.5W

Product Identification

Manufacturer Series:ELP-75

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.10 in.
Width:2.40 in.
Length:6.90 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.8 A

Output

Number of Outputs:1
Output Connector Type:JST B6P-VH or equiv.
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.60 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:90%
Power Rating:76.8 W
,
