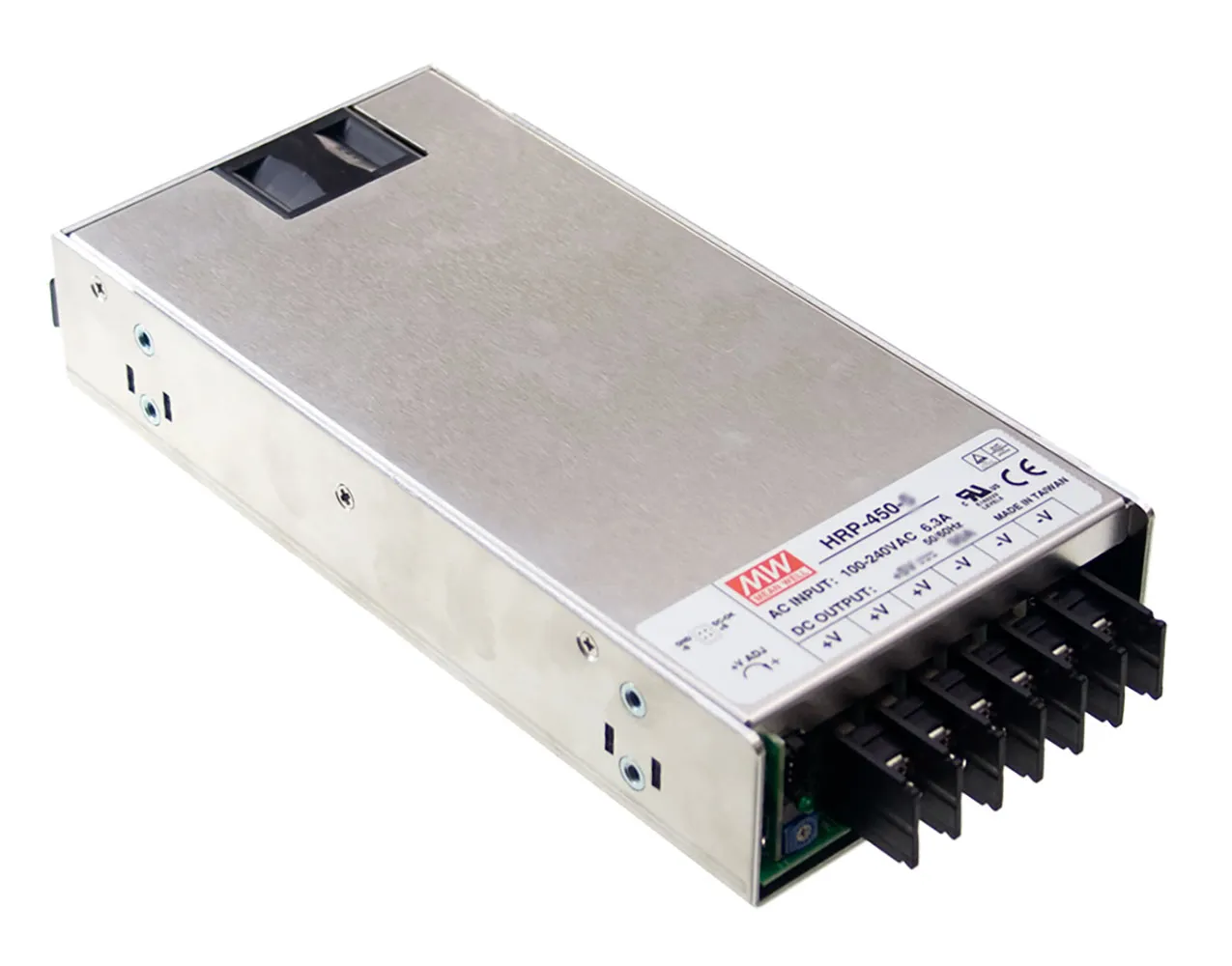

450 W Single Output with PFC Function
36 Volts @ 12.5 Amps
Features:
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 89%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK signal
- 5 years warranty
- Withstand 300VAC surge input for 5 seconds
- Built-in constant current limiting circuit
- Built-in cooling Fan ON-OFF control
- Built-in
- Built-in remote sense function
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HRP-450
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.6 in.
Width:4.1 in.
Length:8.6 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:5 A
Output
Number of Outputs:1
Output Voltage (Channel 1):36 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:36 VDC
Output Current (Channel 1):12.5 A
Output Current:12.50 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:450 W
